Arial Multi Plus - Casambi

Arial Plus Multi Backlit 36W LED CCT UGR<19 600x600 White Panel - Casambi Dimming Enabled

This product is made to order.
i
We have stock to build the quantity shown, but there is a 5-10 day lead time for delivery.
Code
82152
Technical Specification
Volts (V)
220/240
Watts (W)
36
Colour Temp (K)
3000/4000/6000
Lumens (lm)
4467 (3000K) / 4644 (4000K) / 4451 (6000K)
The Arial Plus Multi is our leading wattage switchable panel. The Arial Plus Multi can be installed in areas where TPa rated lighting products are essential, such as emergency exit routes including stairways and corridors.
Download Specification
Full Specification
Name
Arial Plus Multi Backlit 36W LED CCT UGR<19 600x600 White Panel - Casambi Dimming Enabled
EAN
5063695001948
Country Of Origin
CN
Volts (V)
220/240
Watts (W)
36
Colour Temp (K)
3000/4000/6000
Life Hours
50000
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
36
IP Rating
IP40
Height (mm)
595
Width (mm)
595
Depth (mm)
25
Product Category
LED Luminaires - Not Plastic
Product Application
Commercial / Education / Offices
Unified Glare Rating
<19
LED Chip
Philips
Primary Material
Steel
Operating Temperature
0°C-35°C
Lumens Maintenance Ratio
L80 B10
TPa/TPb
TPa
Diffuser Material
Polycarbonate
Commodity Code
9405423990
UNSPSC Code
39111544
Individual Product Weight (kg)
1.9
Single Carton Weight (KG)
2.5
Single Carton Height (mm)
670
Single Carton Width (mm)
627
Single Carton Depth (mm)
36
Individual Volume
0.01512324
Outer Box Weight (kg)
15.27
Outer Box Height (mm)
685
Outer Box Width (mm)
640
Outer Box Depth (mm)
250
Outer Box Qty
4
Outer Box Volume
0.1096
Lumens (lm)
4467 (3000K) / 4644 (4000K) / 4451 (6000K)
Lumens per Watt (lm/W)
124-129

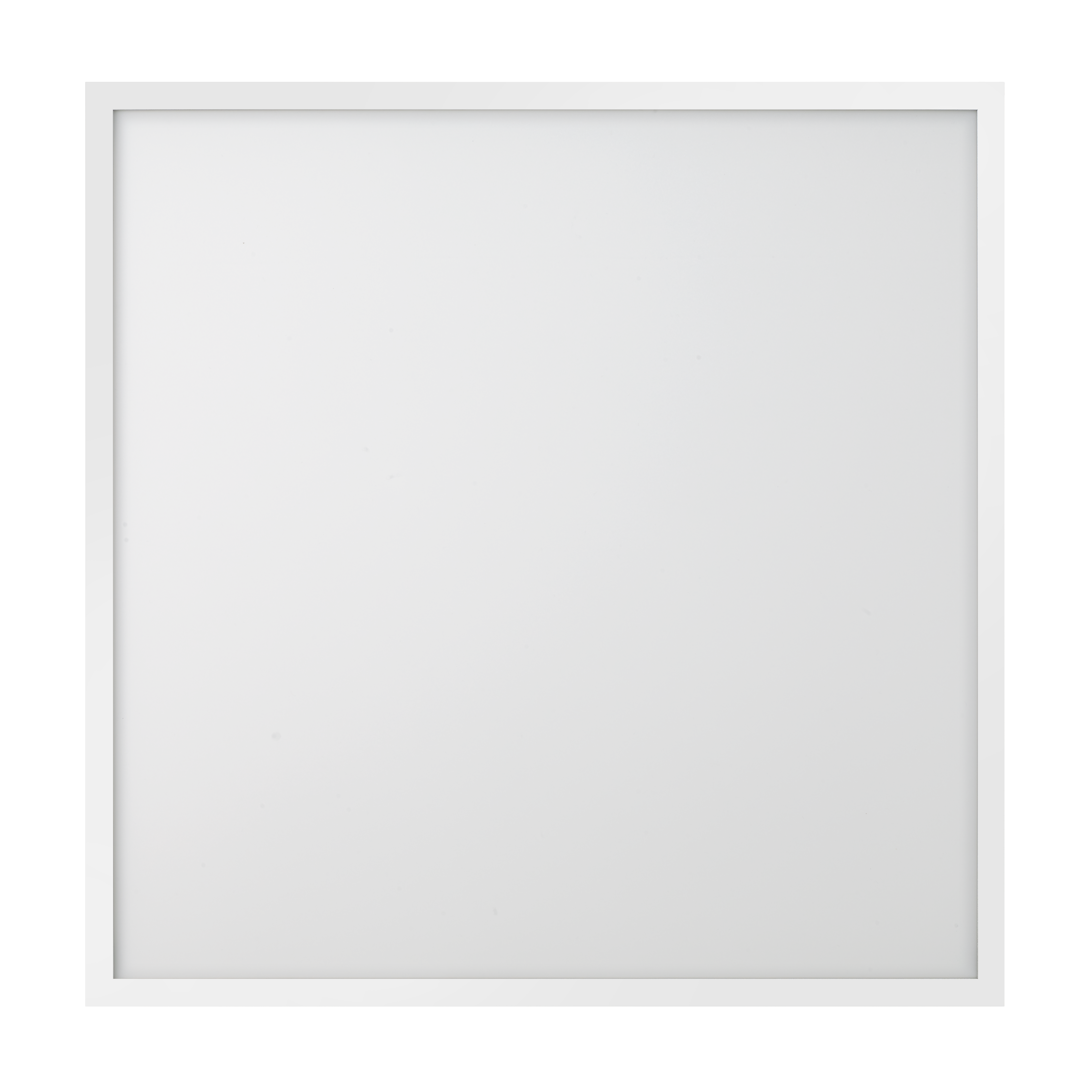

Product Image
