Arial Multi Plus - Casambi

Arial Plus Multi Backlit 30W LED CCT UGR<19 600x600 White Panel - Casambi Dimming Enabled

This product is made to order.
i
We have stock to build the quantity shown, but there is a 5-10 day lead time for delivery.
Code
82153
Technical Specification
Volts (V)
220/240
The Arial Plus Multi is our leading wattage switchable panel. The Arial Plus Multi can be installed in areas where TPa rated lighting products are essential, such as emergency exit routes including stairways and corridors.
Download Specification
Full Specification
Name
Arial Plus Multi Backlit 30W LED CCT UGR<19 600x600 White Panel - Casambi Dimming Enabled
EAN
5063695001955
Volts (V)
220/240
Life Hours
50000
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
30
IP Rating
IP40
Height (mm)
595
Width (mm)
595
Depth (mm)
25
Unified Glare Rating
<19
Primary Material
Steel
Operating Temperature
0°C-35°C
Commodity Code
9405423990
Individual Product Weight (kg)
1.9
Outer Box Weight (kg)
15.27
Outer Box Height (mm)
685
Outer Box Width (mm)
640
Outer Box Depth (mm)
250
Outer Box Qty
4
Outer Box Volume
0.1096
Lumens per Watt (lm/W)
126-130
Wattage (W)
30
Colour Temperature (K)
3000/4000/6000
TP(a)/TP(b)
TP(a)
Minimum Order Quantity
1
Single Box Weight (kg)
2.5
Single box Height (mm)
670
Single box Width (mm)
627
Single Box Depth (mm)
36
Single Box Volume
0.01512324
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
UOM For Battery Weight
KG
Lumen output (lm)
3775 (3000K) / 3900 (4000K) / 3767 (6000K)
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
Yes

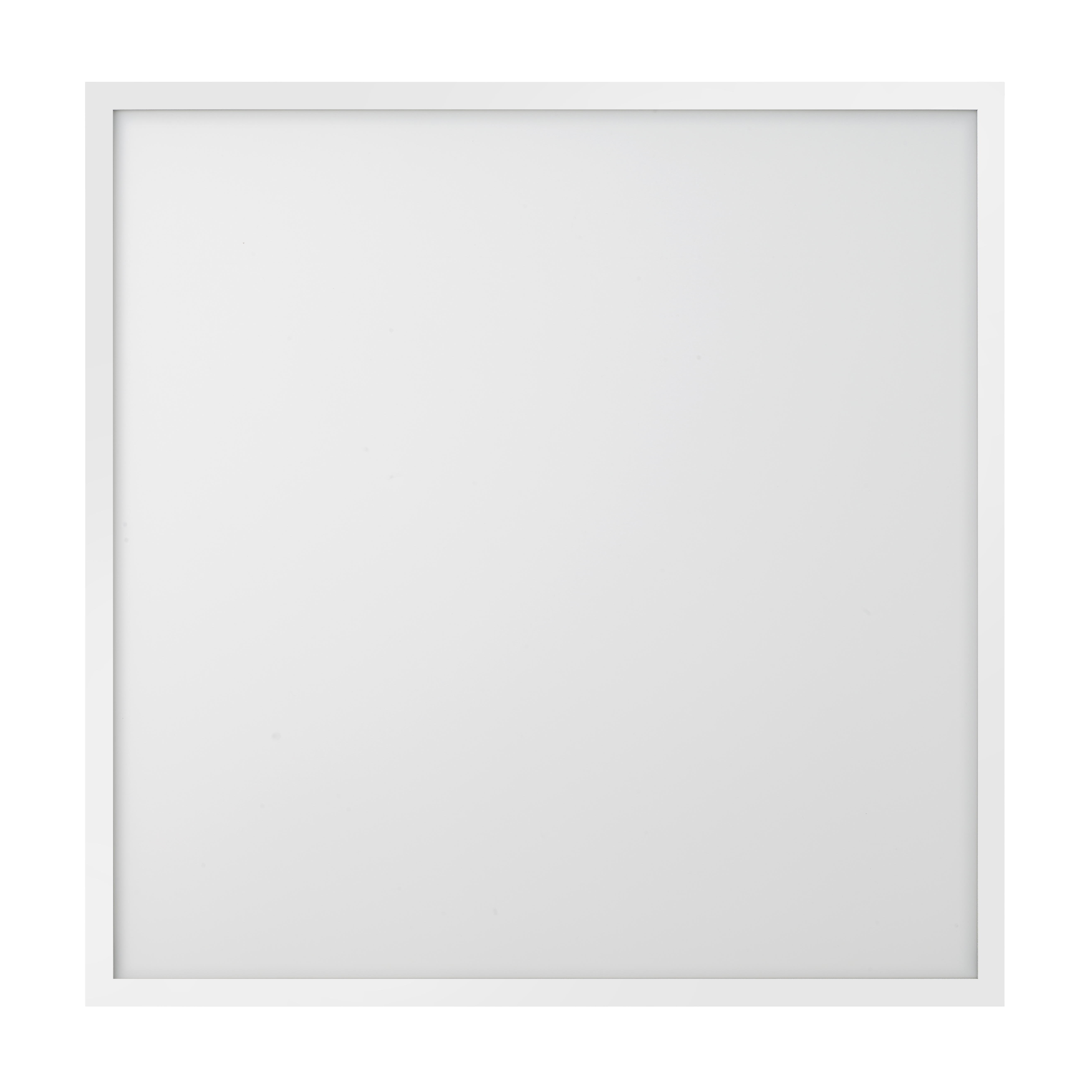

Product Image
