Arial Multi Plus - Casambi

Arial Plus Multi Backlit 26W LED UGR<19 1200x300 White Panel - Casambi Dimming Enabled - 4000K

This product is made to order, however we are out of stock of some components.
i
Please contact sales for accurate lead times for this item.
Code
82162
Technical Specification
Volts (V)
220/240
Watts (W)
26
Colour Temp (K)
4000
Lumens (lm)
3434
The Arial Plus Multi is our leading wattage switchable panel. The Arial Plus Multi can be installed in areas where TPa rated lighting products are essential, such as emergency exit routes including stairways and corridors.
Download Specification
Full Specification
Name
Arial Plus Multi Backlit 26W LED UGR<19 1200x300 White Panel - Casambi Dimming Enabled - 4000K
EAN
5063695002044
Country Of Origin
CN
Volts (V)
220/240
Watts (W)
26
Colour Temp (K)
4000
Life Hours
50000
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
26
IP Rating
IP40
Height (mm)
1195
Width (mm)
295
Depth (mm)
25
Product Category
LED Luminaires - Not Plastic
Product Application
Commercial / Education / Offices
Unified Glare Rating
<19
LED Chip
Philips
Primary Material
Steel
Operating Temperature
0°C-35°C
Lumens Maintenance Ratio
L80 B10
TPa/TPb
TPa
Diffuser Material
Polycarbonate
Commodity Code
9405423990
UNSPSC Code
39111544
Individual Product Weight (kg)
1.85
Single Carton Weight (KG)
2.4
Single Carton Height (mm)
1282
Single Carton Width (mm)
325
Single Carton Depth (mm)
36
Individual Volume
0.0149994
Outer Box Weight (kg)
14.5
Outer Box Height (mm)
1295
Outer Box Width (mm)
340
Outer Box Depth (mm)
250
Outer Box Qty
4
Outer Box Volume
0.110075
Lumens (lm)
3434
Lumens per Watt (lm/W)
132

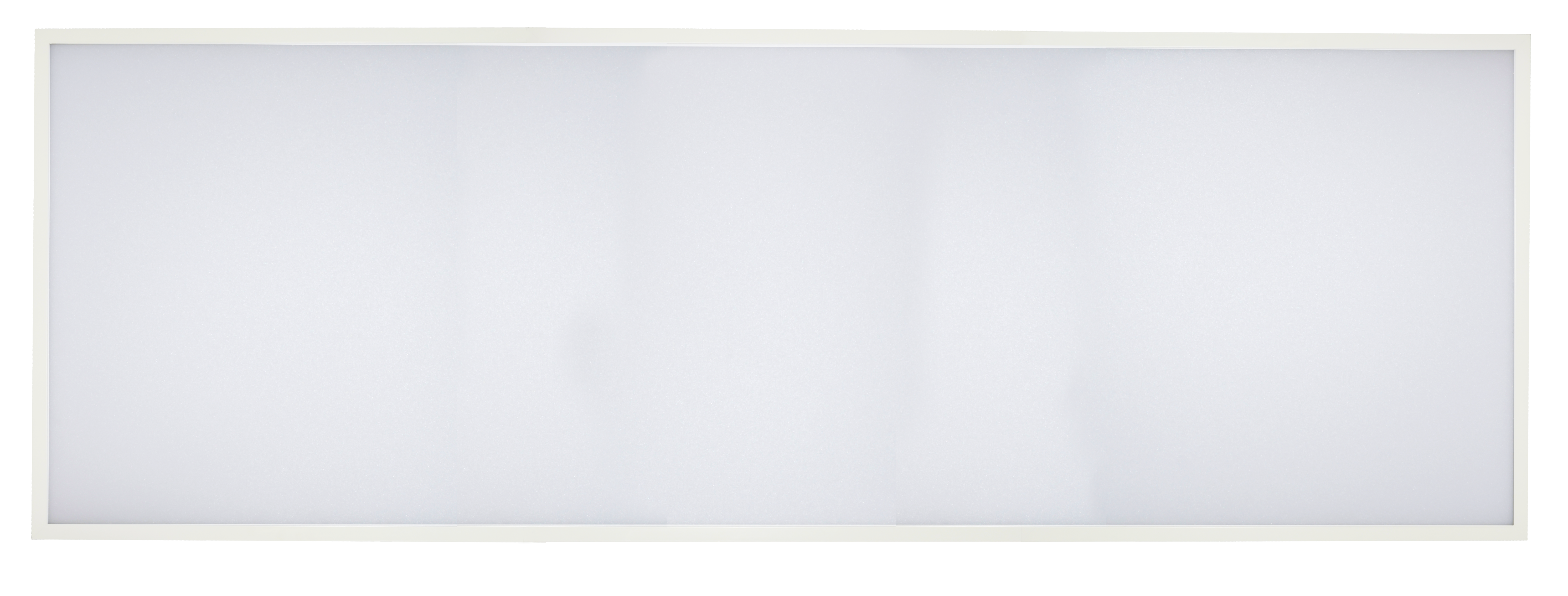

Product Image
