Arial Multi Plus Emergency

Arial Plus Multi Backlit LED CCT UGR<19 600x600 White Panel in Emergency (5Y)

This product is made to order.
i
We have stock to build the quantity shown, but there is a 5-10 day lead time for delivery.
Code
11765
Technical Specification
Volts (V)
220/240
Watts (W)
20/26/30/36
Colour Temp (K)
3000/4000/6000
Lumens (lm)
20W = 2583 (3000K) / 2630 (4000K) / 2580 (6000K) - 26W = 3307 (3000K) / 3402 (4000K) / 3299 (6000K) - 30W = 3775 (3000K) / 3900 (4000K) / 3767 (6000K) - 36W = 4467 (3000K) / 4644 (4000K) / 4451 (6000K)

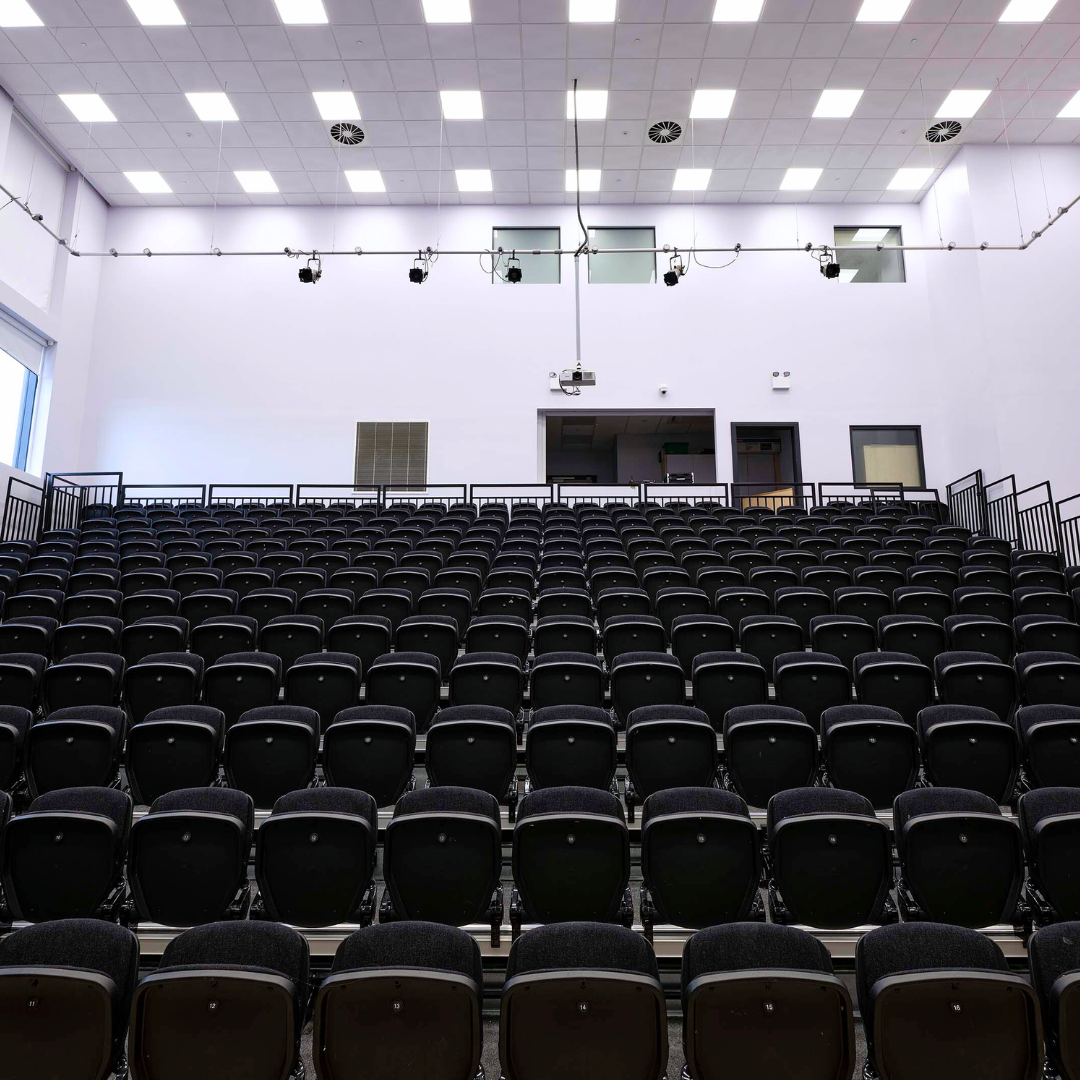

The Arial Plus Multi is our leading wattage switchable panel. With a high lumen output of up to 125 lumens per watt, this panel is ideal for areas that require high lux levels. The Arial Plus Multi can be installed in areas where TPa rated lighting products are essential, such as emergency exit routes including stairways and corridors.
Download Specification
Full Specification
Downloads
Name
Arial Plus Multi Backlit LED CCT UGR<19 600x600 White Panel in Emergency (5Y)
Volts (V)
220/240
Watts (W)
20/26/30/36
Colour Temp (K)
3000/4000/6000
Lumens (lm)
20W = 2583 (3000K) / 2630 (4000K) / 2580 (6000K) - 26W = 3307 (3000K) / 3402 (4000K) / 3299 (6000K) - 30W = 3775 (3000K) / 3900 (4000K) / 3767 (6000K) - 36W = 4467 (3000K) / 4644 (4000K) / 4451 (6000K)
Life Hours
50000
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
IP Rating
IP40
Height (mm)
595
Width (mm)
595
Depth (mm)
25
Commodity Code
9405423990
EAN
5013588117652
Country Of Origin
CN
UNSPSC Code
39111544
Individual Product Weight (kg)
2.9
Single Carton Weight (KG)
3.8
Single Carton Height (mm)
770
Single Carton Width (mm)
648
Single Carton Depth (mm)
52
Individual Volume
0.02594592
Outer Box Weight (kg)
19.1
Outer Box Height (mm)
790
Outer Box Width (mm)
660
Outer Box Depth (mm)
290
Outer Box Qty
5
Outer Box Volume
0.151206
Lumens per Watt (lm/W)
124-131
Product Category
LED Luminaires - Not Plastic
Product Application
LED Panel
Energy Consumption (kWh/1000h)
36
Unified Glare Rating
<19
LED Chip
Philips
Primary Material
Steel
Operating Temperature
0°C-35°C
Lumens Maintenance Ratio
L80 B10
Driver Manufacturer
BELL
TPa/TPb
TPa
Diffuser Material
Polycarbonate
