Arial Multi Plus Emergency

Arial Plus Multi Backlit 60W LED UGR<19 1200x600 White Panel in Emergency (1Y) with DALI Dimming - 4000K

This product is made to order.
i
We have stock to build the quantity shown, but there is a 5-10 day lead time for delivery.
Code
11794
Technical Specification
Volts (V)
220/240
The Arial Plus Multi is our leading wattage switchable panel, ideal for areas that require high lux levels. The Arial Plus Multi can be installed in areas where TPa rated lighting products are essential, such as emergency exit routes including stairways and corridors.
Download Specification
Full Specification
Downloads
Name
Arial Plus Multi Backlit 60W LED UGR<19 1200x600 White Panel in Emergency (1Y) with DALI Dimming - 4000K
Volts (V)
220/240
Life Hours
50000
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
IP Rating
IP40
Height (mm)
1195
Width (mm)
595
Depth (mm)
25
Commodity Code
9405423990
EAN
5013588117942
Outer Box Height (mm)
1295
Outer Box Width (mm)
640
Outer Box Depth (mm)
170
Outer Box Qty
5
Outer Box Volume
0.140896
Individual Product Weight (kg)
4.787
Lumens per Watt (lm/W)
113
Dimming Option
DALI
Energy Consumption (kWh/1000h)
60
Unified Glare Rating
<19
Primary Material
Steel
Operating Temperature
0°C-35°C
Emergency Lumen Output (lm)
384
Wattage (W)
60
Colour Temperature (K)
4000
TP(a)/TP(b)
TP(a)
Minimum Order Quantity
1
Single Box Weight (kg)
5.287
Single box Height (mm)
1282
Single box Width (mm)
625
Single Box Depth (mm)
52
Single Box Volume
0.041665
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
LED Panels
EDATA Product Range
Arial Plus Multi
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
6782
Dimmable
Yes
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
Yes
Catalogue Page

Product Image

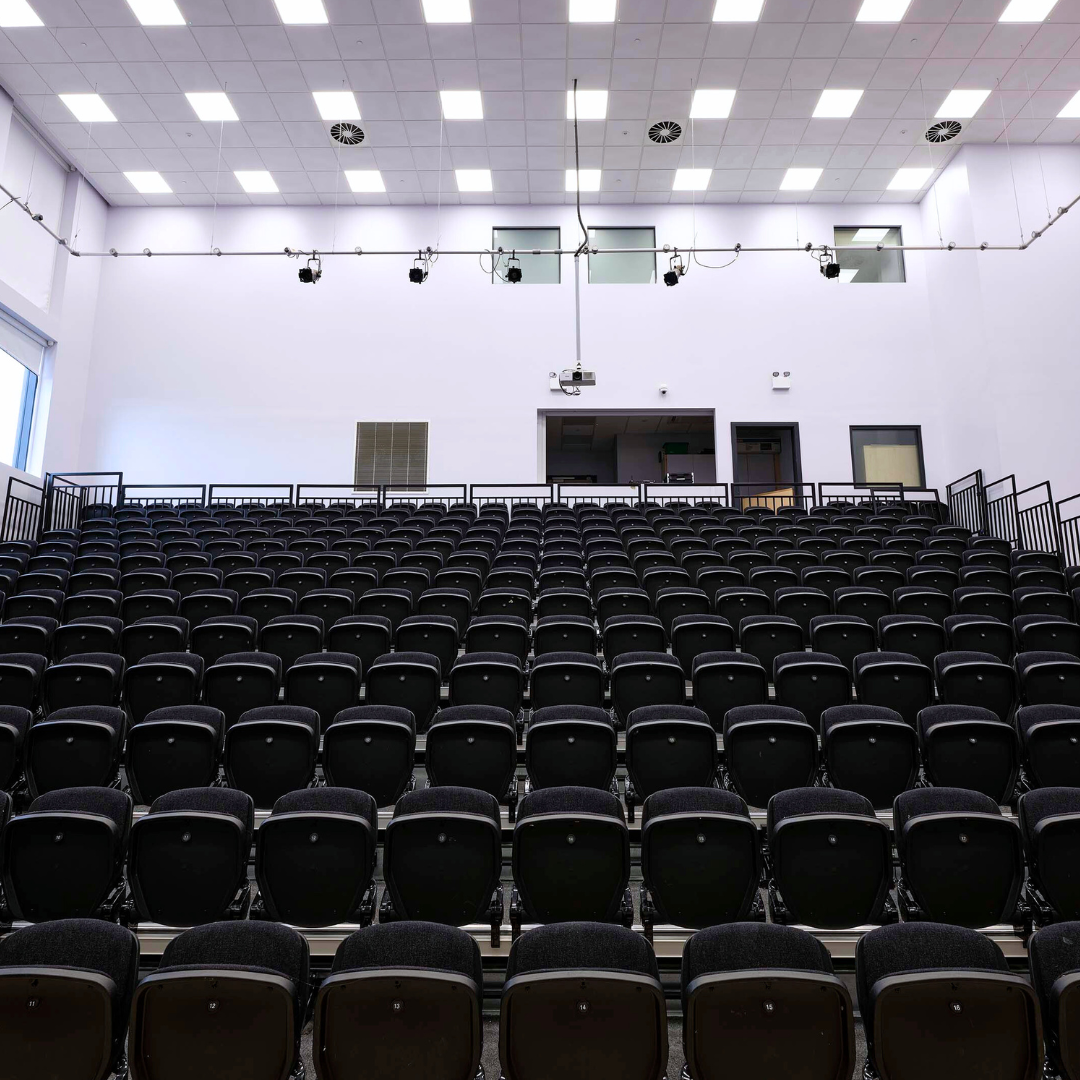

Case Study Image
