Arial Multi Plus

Arial Plus Multi Backlit LED UGR<19 600x600 White Panel - 4000K

Code
11748
Next Delivery
02/01/2026 - 3,000 items
Technical Specification
Volts (V)
220/240
The Arial Plus Multi is our leading wattage switchable panel, ideal for areas that require high lux levels. The Arial Plus Multi can be installed in areas where TPa rated lighting products are essential, such as emergency exit routes including stairways and corridors.
Download Specification
Full Specification
Downloads
Name
Arial Plus Multi Backlit LED UGR<19 600x600 White Panel - 4000K
Volts (V)
220/240
Life Hours
50000
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
IP Rating
IP40
Height (mm)
595
Width (mm)
595
Depth (mm)
25
Commodity Code
9405423990
EAN
5013588117485
Individual Product Weight (kg)
1.7
Outer Box Weight (kg)
13.5
Outer Box Height (mm)
685
Outer Box Width (mm)
640
Outer Box Depth (mm)
250
Outer Box Qty
6
Outer Box Volume
0.1096
Lumens per Watt (lm/W)
143-149
Operating Temperature
0°C-35°C
Energy Consumption (kWh/1000h)
36
Unified Glare Rating
<19
Primary Material
Steel
Wattage (W)
20/26/30/36
Colour Temperature (K)
4000
TP(a)/TP(b)
TP(a)
Minimum Order Quantity
1
Single Box Weight (kg)
2.2
Single box Height (mm)
670
Single box Width (mm)
627
Single Box Depth (mm)
36
Single Box Volume
0.01512324
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
LED Panels
EDATA Product Range
Arial Plus Multi
EDATA Order Unit
Unit
EDATA Quantity Interval
1
EPREL Product Type
LIGHT_SOURCE_VERSION
EPREL - Registered As
Importer
UOM For Battery Weight
KG
Mains or Non-Mains
Mains
Connected Light Source
No
Colour Tunable Light Source
No
High Luminance Light Source
No
Anti-Glare Shield
No
Lumen output (lm)
2983 (20W) / 3851 (26W) / 4390 (30W) / 5159 (36W)
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
Yes
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
Catalogue Page

Instructions

Photometric Data

Product Image

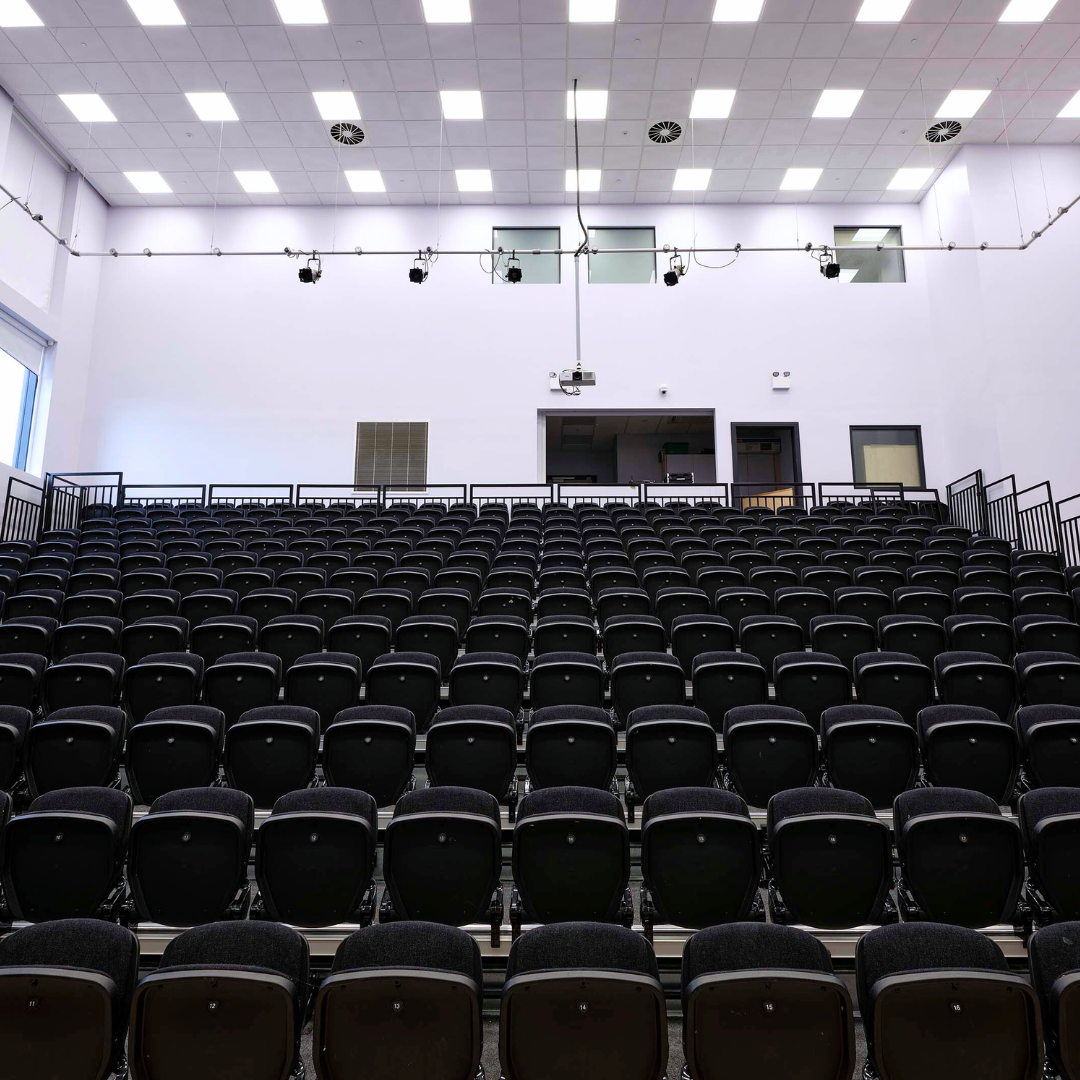

Case Study Image
