Arial T-Pro Multi Casambi TW

Arial T-Pro Multi 26W LED CCT UGR<19 600x600 White Panel - Casambi TW and Dimming Enabled

This product is made to order.
i
We have stock to build the quantity shown, but there is a 5-10 day lead time for delivery.
Code
82229
Technical Specification
Volts (V)
220/240
Watts (W)
26
Colour Temp (K)
3000/4000/6000
Lumens (lm)
3650 (3000K) / 3880 (4000K) / 3642 (6000K)
The Arial T-Pro Multi Backlit LED CCT Panel offers a unique twist on a standard LED panel. The contemporary slimline design and aesthetic light distribution works well in areas that would like to move away from the familiar style of panel we have all become accustomed to.
Download Specification
Full Specification
Name
Arial T-Pro Multi 26W LED CCT UGR<19 600x600 White Panel - Casambi TW and Dimming Enabled
EAN
5063695003003
Country Of Origin
CN
Volts (V)
220/240
Watts (W)
26
Colour Temp (K)
3000/4000/6000
Lumens (lm)
3650 (3000K) / 3880 (4000K) / 3642 (6000K)
Life Hours
50000
CRI (Ra)
85
Guarantee
7 Years
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
26
IP Rating
IP20
Height (mm)
595
Width (mm)
595
Depth (mm)
33
Lumens per Watt (lm/W)
140-149
Product Category
LED Luminaires - Not Plastic
Product Application
Commercial / Office
Unified Glare Rating
<19
LED Chip
Philips
Primary Material
Aluminium
Operating Temperature
0°C-35°C
Lumens Maintenance Ratio
L80 B10
TPa/TPb
TPa
Diffuser Material
PMMA
Commodity Code
9405423990
UNSPSC Code
39111544
Individual Product Weight (kg)
2.5
Single Carton Weight (KG)
3.25
Single Carton Height (mm)
645
Single Carton Width (mm)
632
Single Carton Depth (mm)
55
Individual Volume
0.0224202
Outer Box Weight (kg)
13
Outer Box Height (mm)
660
Outer Box Width (mm)
645
Outer Box Depth (mm)
250
Outer Box Qty
4
Outer Box Volume
0.106425

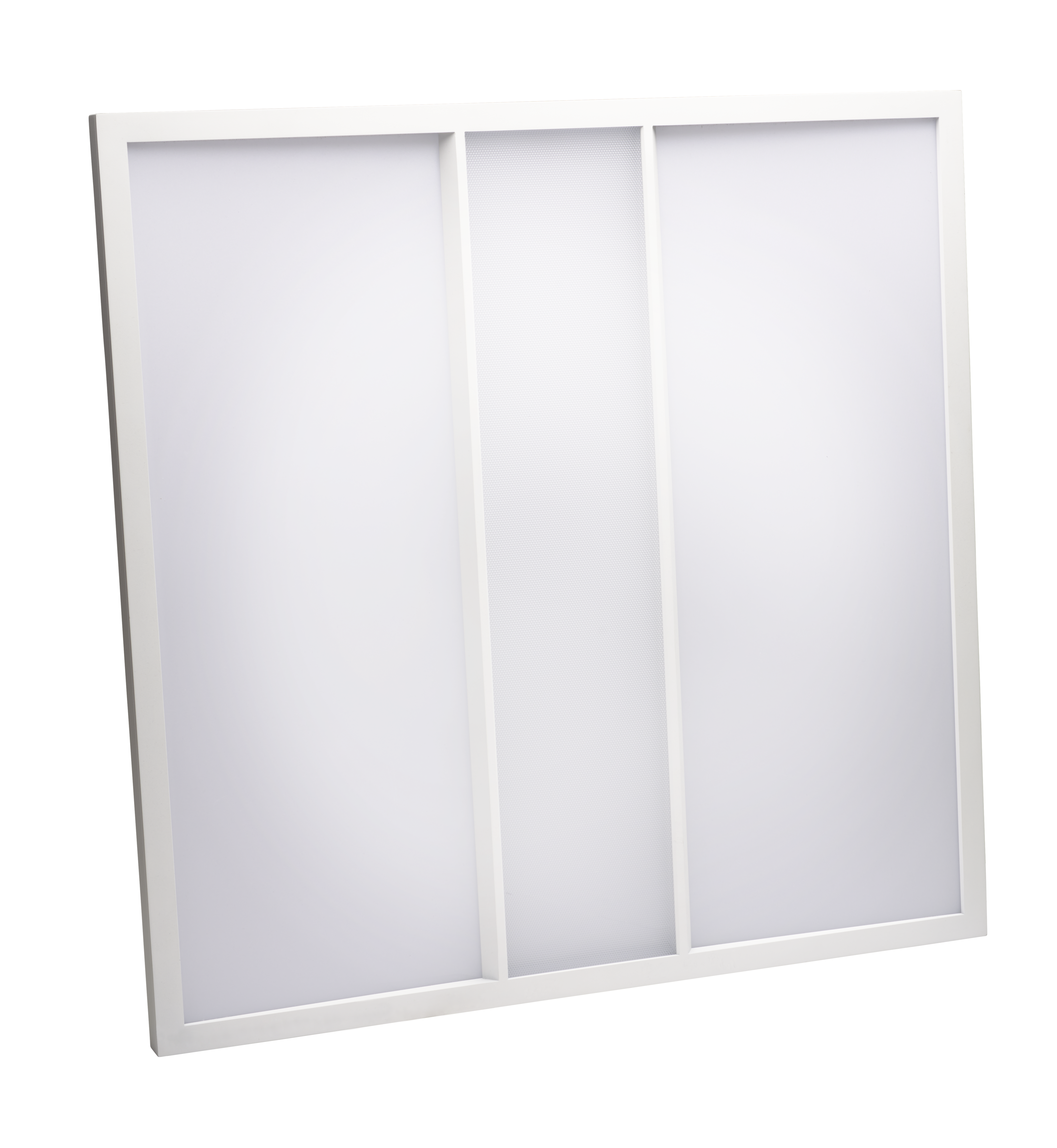

Product Image
