Arial T-Pro Multi

Arial T-Pro Multi 36W LED CCT UGR<19 600x600 White Panel - Casambi Dimming Enabled

This product is made to order, however we are out of stock of some components.
i
Please contact sales for accurate lead times for this item.
Code
82184
Technical Specification
Volts (V)
220/240
The Arial T-Pro Multi Backlit LED CCT Panel offers a unique twist on a standard LED panel. The contemporary slimline design and aesthetic light distribution works well in areas that would like to move away from the familiar style of panel we have all become accustomed to.
Download Specification
Full Specification
Name
Arial T-Pro Multi 36W LED CCT UGR<19 600x600 White Panel - Casambi Dimming Enabled
EAN
5063695002426
Volts (V)
220/240
Life Hours
50000
CRI (Ra)
85
Guarantee
7 Years
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
36
IP Rating
IP20
Height (mm)
595
Width (mm)
595
Depth (mm)
33
Lumens per Watt (lm/W)
128-133
Unified Glare Rating
<19
Primary Material
Aluminium
Operating Temperature
0°C-35°C
Commodity Code
9405423990
Individual Product Weight (kg)
2.5
Outer Box Weight (kg)
13
Outer Box Height (mm)
660
Outer Box Width (mm)
645
Outer Box Depth (mm)
250
Outer Box Qty
4
Outer Box Volume
0.106425
Wattage (W)
36
Colour Temperature (K)
3000/4000/6000
TP(a)/TP(b)
TP(a)
Minimum Order Quantity
1
Single Box Weight (kg)
3.25
Single box Height (mm)
645
Single box Width (mm)
632
Single Box Depth (mm)
55
Single Box Volume
0.0224202
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
UOM For Battery Weight
KG
Lumen output (lm)
4614 (3000K) / 4789 (4000K) / 4614 (6000K)
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
Yes

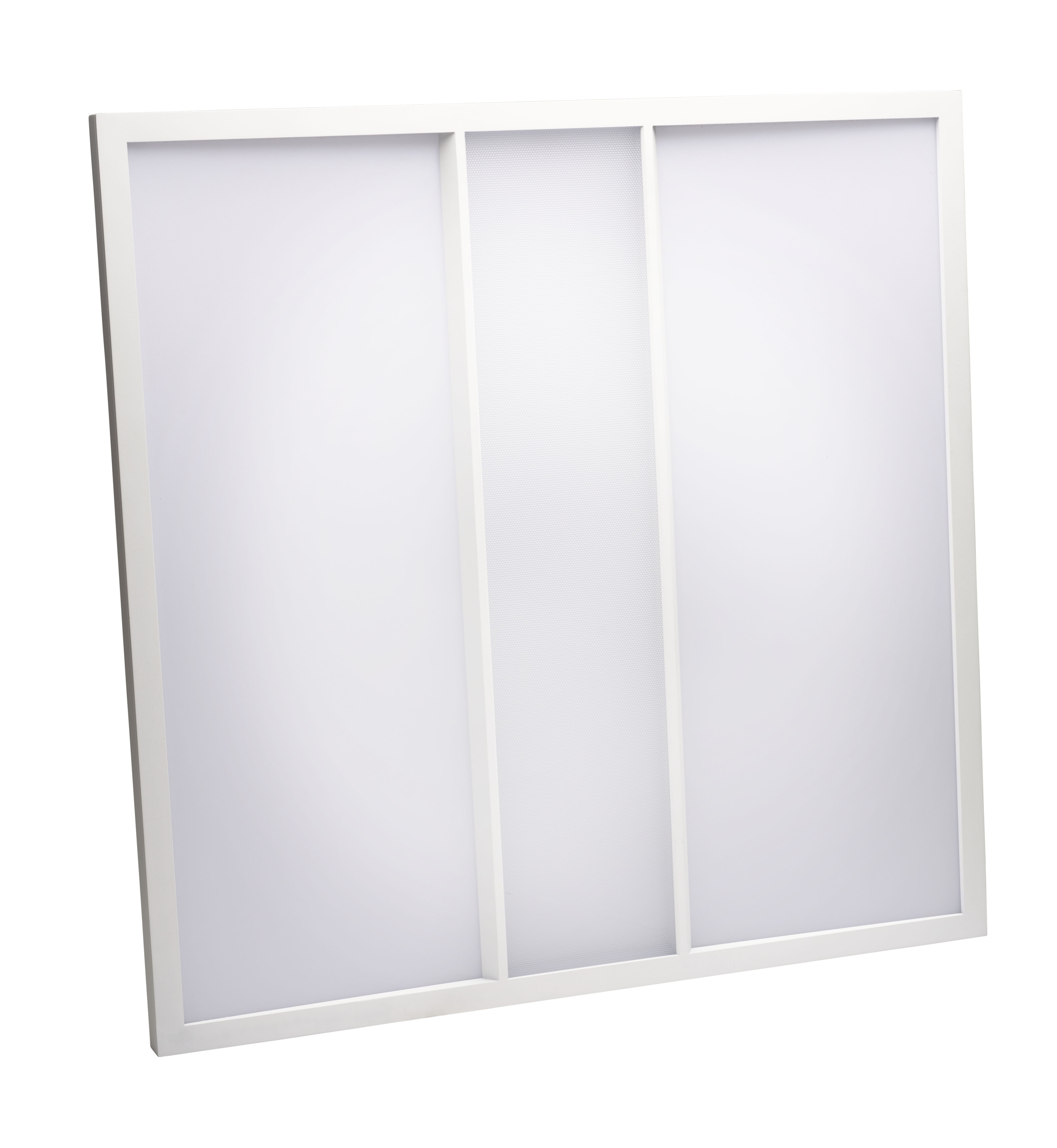

Product Image
