Arial T-Pro Standard

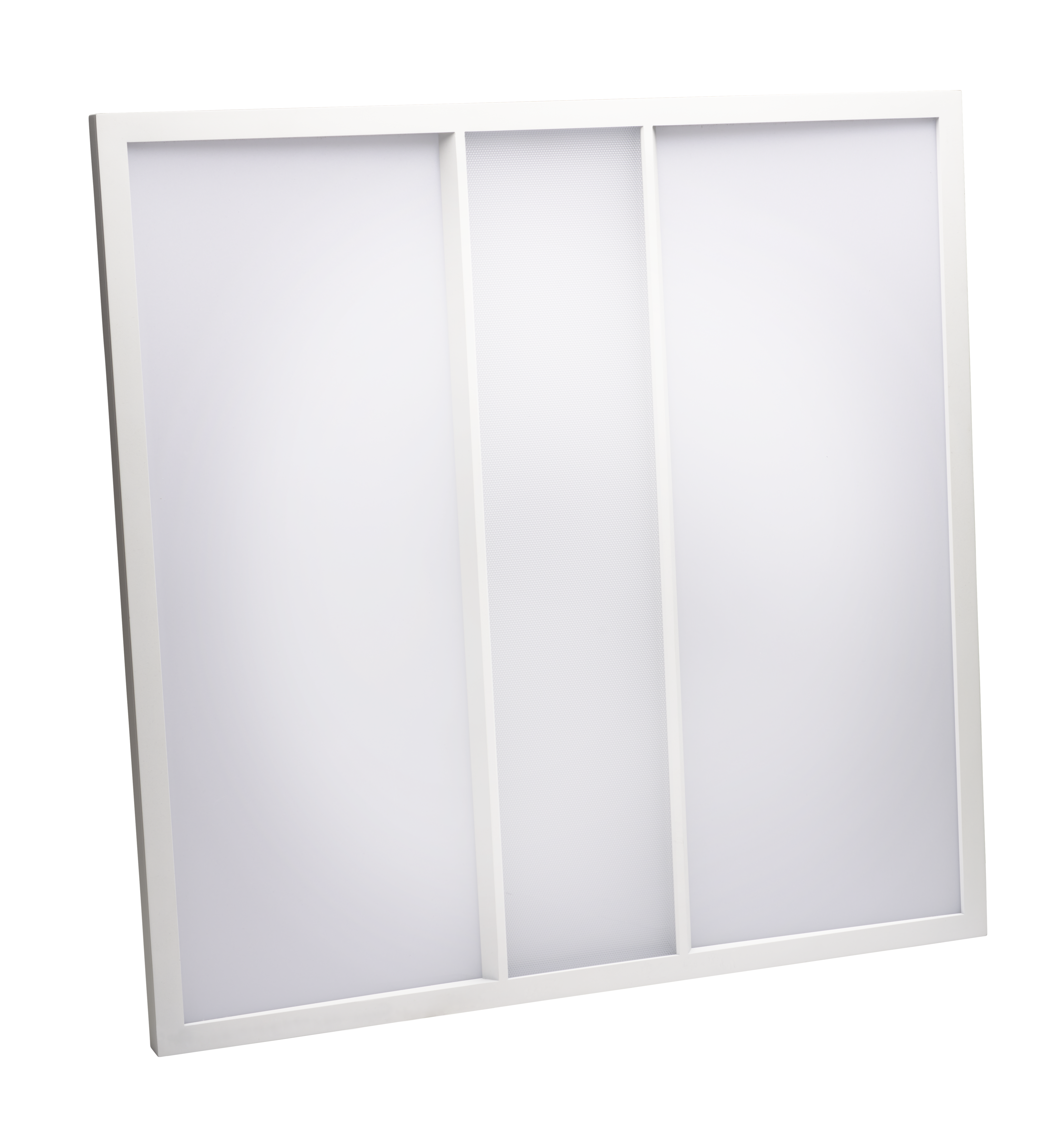

Arial T-Pro 25W LED CCT 600x600 White Panel with 1-10V Dimming

This product is made to order, however we are out of stock of some components.
i
Please contact sales for accurate lead times for this item.
Code
11407
Technical Specification
Volts (V)
220/240
Watts (W)
25
Colour Temp (K)
3000/4000/5000
Lumens (lm)
2650-2750
Dimmable?
Yes
The Arial T-Pro Backlit LED CCT Panel gives a unique twist on a standard LED panel. The contemporary slimline design and aesthetic light distribution works well in areas that would like to move away from the standard familiar panel we have all become accustomed to.
Download Specification
Full Specification
Downloads
Name
Arial T-Pro 25W LED CCT 600x600 White Panel with 1-10V Dimming
Volts (V)
220/240
Watts (W)
25
Colour Temp (K)
3000/4000/5000
Lumens (lm)
2650-2750
Life Hours
50000
Beam Angle
90°
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
100000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
25
Height (mm)
595
Width (mm)
595
Depth (mm)
40
EAN
5013588114071
Country Of Origin
CN
Single Carton Weight (KG)
3.36
Single Carton Height (mm)
670
Single Carton Width (mm)
84
Single Carton Depth (mm)
665
Individual Volume
0.03743
Outer Box Height (mm)
690
Outer Box Width (mm)
455
Outer Box Depth (mm)
685
Outer Box Qty
4
Commodity Code
9405409990
Outer Box Volume
0.21506
Dimmable?
Yes
UNSPSC Code
39111544
Lumens per Watt (lm/W)
106-110
Catalogue Page

Instructions
