Arial T-Pro Standard

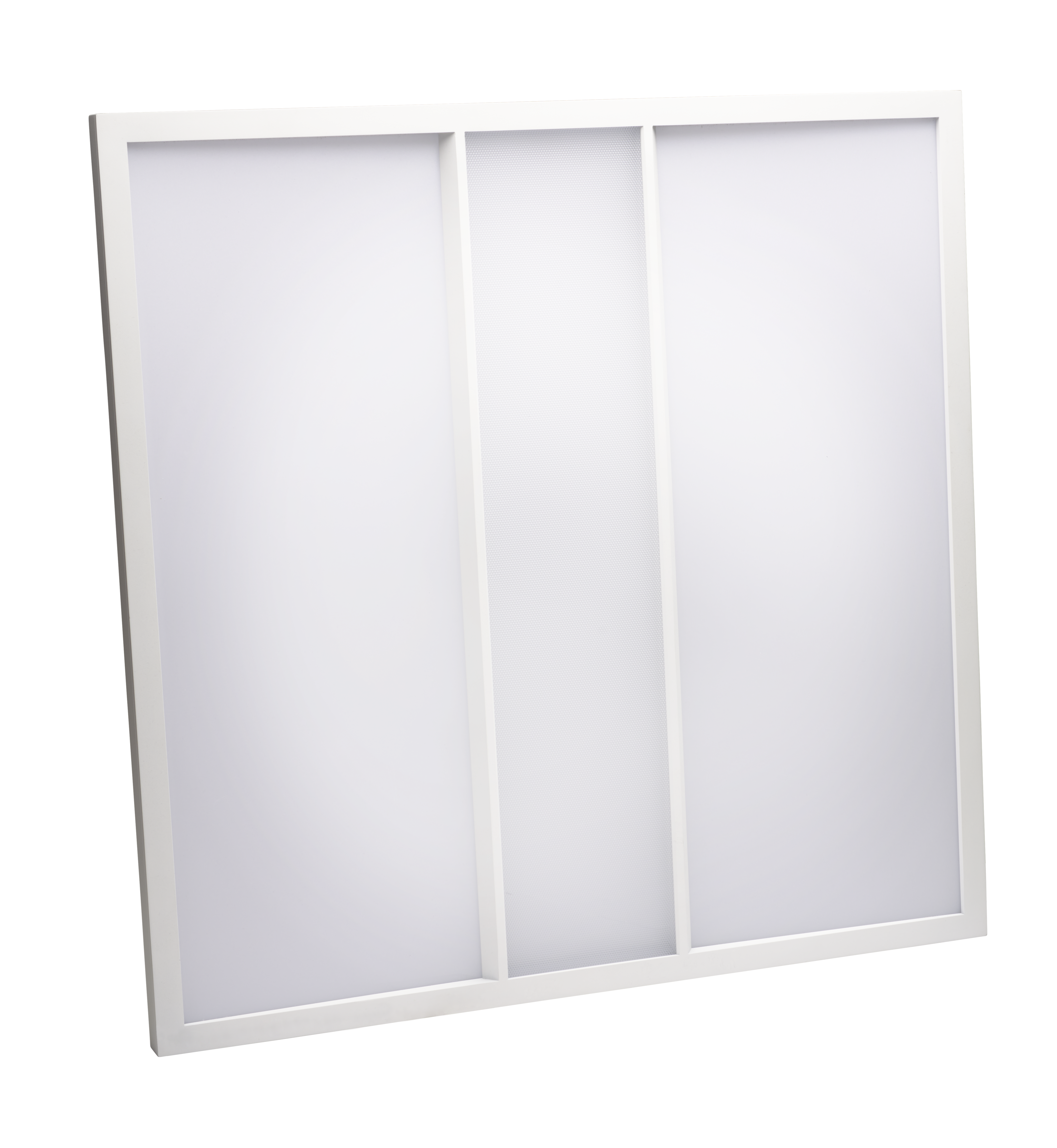

Arial T-Pro 36W LED CCT 600x600 White Panel with 1-10V Dimming

This product is made to order, however we are out of stock of some components.
i
Please contact sales for accurate lead times for this item.
Code
11403
Stock
Discontinued
This product has been discontinued. Please see our alternative listed below:

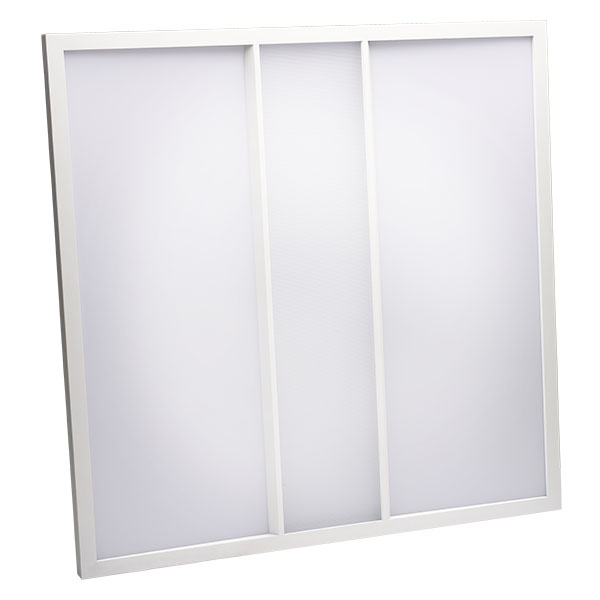

11418 - Arial T-Pro Multi UGR CCT Panel - 600x600mm, 1-10v View product
Technical Specification
Volts (V)
220/240
Watts (W)
36
Colour Temp (K)
3000/4000/5000
Lumens (lm)
4050-4200
The Arial T-Pro Backlit LED CCT Panel gives a unique twist on a standard LED panel. The contemporary slimline design and aesthetic light distribution works well in areas that would like to move away from the standard familiar panel we have all become accustomed to.
Quantity
Download Specification
Full Specification
Downloads
Name
Arial T-Pro 36W LED CCT 600x600 White Panel with 1-10V Dimming
Volts (V)
220/240
Watts (W)
36
Colour Temp (K)
3000/4000/5000
Lumens (lm)
4050-4200
Life Hours
50000
Beam Angle
90°
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
100000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
36
Height (mm)
595
Width (mm)
595
Depth (mm)
40
EAN
5013588114033
Country Of Origin
CN
Single Carton Weight (KG)
3.36
Single Carton Height (mm)
670
Single Carton Width (mm)
84
Single Carton Depth (mm)
665
Individual Volume
0.03743
Outer Box Height (mm)
690
Outer Box Width (mm)
455
Outer Box Depth (mm)
685
Outer Box Qty
4
Commodity Code
9405423990
Outer Box Volume
0.21506
UNSPSC Code
39111544
Lumens per Watt (lm/W)
112-117
Dimming Option
1-10V
Product Category
LED Luminaires - Not Plastic
Outer Carton Barcode
1140300000004
Product Application
LED Panels
IP Rating
IP20
Catalogue Page

Instructions

Product Image
