Alto LED Street Lights - 4000K

Alto 150W LED IP66 Street Light with Nema Socket - Wide Angle Beam (WAB) - 4000K

Code
11704
Next Delivery
24/05/2025 - 120 items
Technical Specification
Volts (V)
220/240
Watts (W)
150
Colour Temp (K)
4000
Lumens (lm)
22867

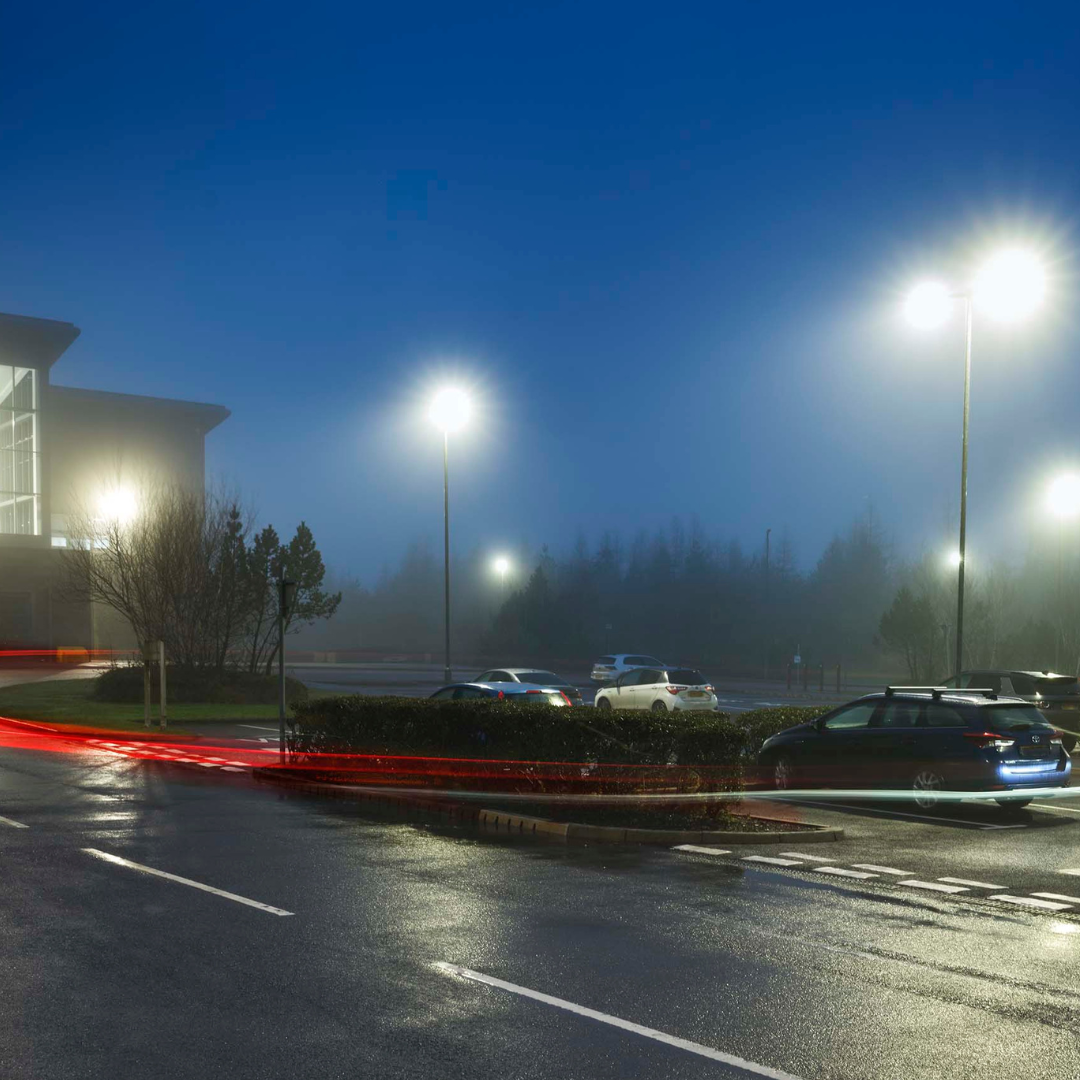

The Alto LED Street Light offers flexibility, it is suitable for use in many locations, including rural towns, car parks and access roads. The Alto is available in a variety of wattages for a variety of applications, and is a robust weatherproof construction meeting an IP66 protection rating.
Download Specification
Full Specification
Downloads
Name
Alto 150W LED IP66 Street Light with Nema Socket - Wide Angle Beam (WAB) - 4000K
Volts (V)
220/240
Watts (W)
150
Colour Temp (K)
4000
Lumens (lm)
22867
Life Hours
50000
CRI (Ra)
80
Guarantee
7 Years
Switching Cycles
80000
Frequency (Hz)
50/60
LED Drive Current
122mA
Energy Consumption (kWh/1000h)
150
IP Rating
IP66
Height (mm)
137
Width (mm)
194
Length (mm)
724
EAN
5013588117041
Country Of Origin
CN
Single Carton Weight (KG)
4.3
Single Carton Height (mm)
140
Single Carton Width (mm)
205
Single Carton Depth (mm)
605
Individual Volume
0.01736
Individual Product Weight (kg)
3.3
Commodity Code
9405423990
UNSPSC Code
39111608
Impact Protection
IK8
Lumens per Watt (lm/W)
152
Product Category
LED Luminaires - Not Plastic
Surge Protection
10KV
Product Application
Street Lighting
Operating Temperature
-30°C - +35°C
Lumens Maintenance Ratio
L80 B10
Catalogue Page

Instructions

Photometric Data

Product Image

Case Study Image
