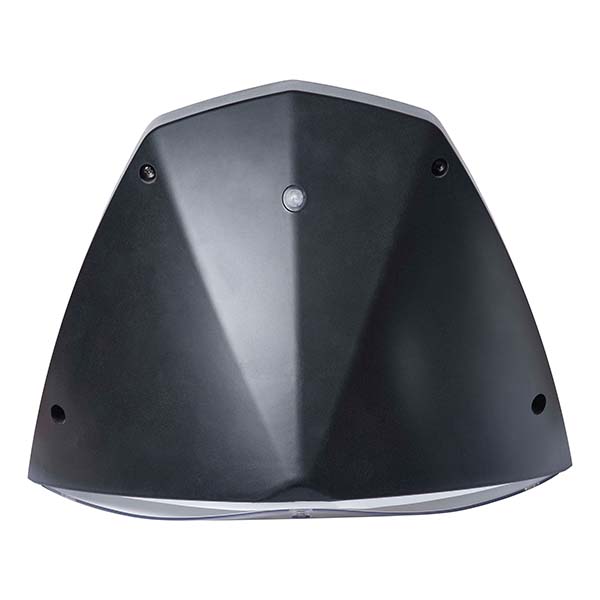

Lumo Asymmetric Wallpack

Lumo 13/16/18/20/25W LED CCT Asymmetric Wallpack with Photocell

This product is made to order.
i
We have stock to build the quantity shown, but there is a 5-10 day lead time for delivery.
Code
11502
Technical Specification
Volts (V)
220/240
Watts (W)
13/16/18/20/25
Colour Temp (K)
3000/4000/6000
Lumens (lm)
1495-3500
Designed to be used where the aesthetics of the light fitting, along with a tough robust construction is needed. The fittings are IP66 and IK8 compliant, supplied complete with an opal diffuser for even light distribution. Available in Standard / Photocell / Emergency / Emergency Photocell versions.
Download Specification
Full Specification
Downloads
Name
Lumo 13/16/18/20/25W LED CCT Asymmetric Wallpack with Photocell
Volts (V)
220/240
Watts (W)
13/16/18/20/25
Colour Temp (K)
3000/4000/6000
Lumens (lm)
1495-3500
Life Hours
50000
Guarantee
7 Years
Switching Cycles
50000
Frequency (Hz)
50/60
LED Drive Current
78mA
Energy Consumption (kWh/1000h)
25
IP Rating
IP66
Height (mm)
238
Width (mm)
212
Depth (mm)
138
Commodity Code
9405423170
EAN
5013588115023
Country Of Origin
CN
UNSPSC Code
39111612
Single Carton Weight (KG)
2.2
Single Carton Height (mm)
260
Single Carton Width (mm)
235
Single Carton Depth (mm)
160
Individual Volume
0.00978
Outer Box Height (mm)
500
Outer Box Width (mm)
355
Outer Box Depth (mm)
280
Outer Box Volume
0.0497
Individual Product Weight (kg)
1.9
Inner Box Qty
1
Outer Box Qty
4
CRI (Ra)
80
Impact Protection
IK8
Equivalent Watts (W)
50
Lumens per Watt (lm/W)
115-140
Catalogue Page

Instructions

Product Image
