Muro Wallpack Emergency

Muro 22W LED CCT Wallpack - Emergency - Casambi Dimming Enabled

This product is made to order.
i
We have stock to build the quantity shown, but there is a 5-10 day lead time for delivery.
Code
82050
Technical Specification
Volts (V)
220/240
Watts (W)
22
Colour Temp (K)
3000/4000/6000
Lumens (lm)
1725 (3000K) - 1796 (4000K)
Designed to be used where the aesthetics of the light fitting, along with a tough robust construction, is needed. The fittings are IP65 and IK8 compliant, supplied complete with an opal diffuser for even light distribution.
Download Specification
Full Specification
Name
Muro 22W LED CCT Wallpack - Emergency - Casambi Dimming Enabled
EAN
5063695000835
Country Of Origin
CN
Volts (V)
220/240
Watts (W)
22
Colour Temp (K)
3000/4000/6000
Lumens (lm)
1725 (3000K) - 1796 (4000K)
Candelas (cd)
620
Life Hours
35000
Beam Angle
113°
CRI (Ra)
80
Guarantee
3 Years
Switching Cycles
30000
Frequency (Hz)
50/60
LED Drive Current
510mA
Energy Consumption (kWh/1000h)
22
IP Rating
IP65
Height (mm)
305
Width (mm)
255
Depth (mm)
100
Impact Protection
IK8
Electric Class
2
Driver Integral?
Yes
Emergency Lumen Output (lm)
163
Product Category
LED Luminaires - Plastic
Product Application
External Lighting
Lumens Maintenance Ratio
L80 B10
Commodity Code
9405423100
UNSPSC Code
39111612
Individual Product Weight (kg)
1.1
Single Carton Weight (KG)
1.2
Single Carton Height (mm)
310
Single Carton Width (mm)
260
Single Carton Depth (mm)
105
Individual Volume
0.00846
Lumens per Watt (lm/W)
78-82
LED Chip
Samsung
Primary Material
Polycarbonate
Operating Temperature
-30°C - +35°C
Emergency Wattage
2

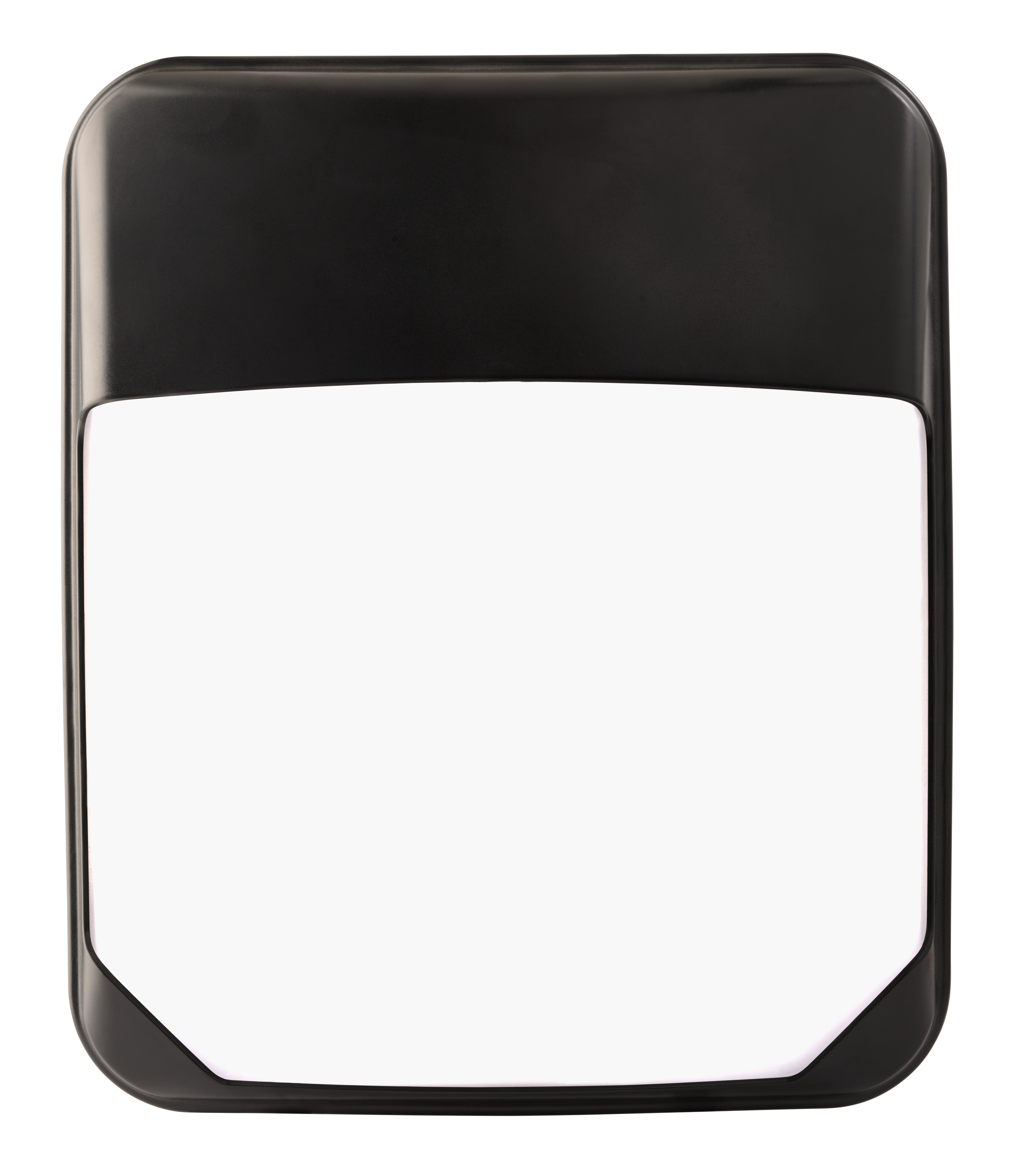

Product Image
