Illumina Atlas

Illumina Atlas 60/80/100W LED High Bay - 90° Lens - 4000K

Code
11451
Technical Specification
Volts (V)
220/240

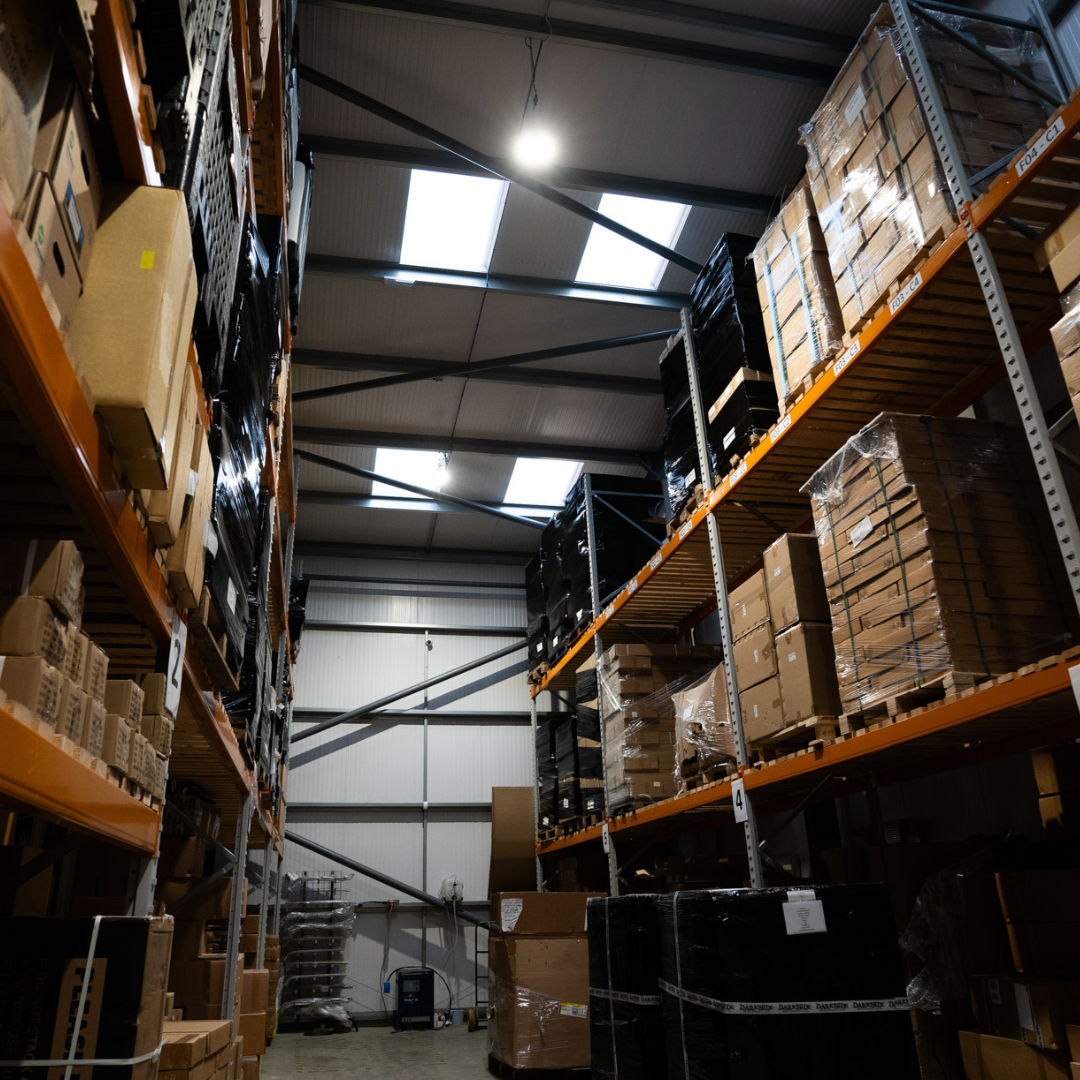

The Illumina Atlas Switchable Wattage High Bay is a highly efficient versatile LED luminaire, ideally suited to a wide range of industrial applications for both new installations and retrofit applications.
Download Specification
Full Specification
Downloads
Name
Illumina Atlas 60/80/100W LED High Bay - 90° Lens - 4000K
Volts (V)
220/240
Life Hours
70000
Beam Angle
90°
CRI (Ra)
80
Switching Cycles
100000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
100
IP Rating
IP65
Height (mm)
156
Diameter (mm)
253
Commodity Code
9405423990
EAN
5013588114514
Individual Product Weight (kg)
1.8
Lumens per Watt (lm/W)
149-162
Operating Temperature
-30°C - +50°C
LED Drive Current
129mA
Wattage (W)
60/80/100
Equivalent Wattage (W)
250
Colour Temperature (K)
4000
IK Rating
IK10
Minimum Order Quantity
1
Single Box Weight (kg)
2.3
Single box Height (mm)
258
Single box Width (mm)
258
Single Box Depth (mm)
168
Single Box Volume
0.011182752
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
LED High Bays
EDATA Product Range
Illumina Atlas
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
9714 (60W) / 12508 (80W) / 14878 (100W)
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
7 Years (2 Years On Site)
Linears
No
Skyline Target
No
