Illumina Calor V2 High Temperature High Bay

Illumina Calor V2 100/150/200W CCT High Temperature High Bay - 90° Lens

This product is made to order, however we are out of stock of some components.
i
Please contact sales for accurate lead times for this item.
Code
70351
Technical Specification
Volts (V)
220/240
Watts (W)
100/150/200
Colour Temp (K)
4000/5000
Lumens (lm)
28000-30000 (at 200w)
The Illumina Calor offers a sleek design coupled with high performance. With a high ambient temperature rating of 65°C, this fitting is perfect for applications where extreme high temperatures are encountered eg; foundries, steelworks and bottling plants.
Download Specification
Full Specification
Name
Illumina Calor V2 100/150/200W CCT High Temperature High Bay - 90° Lens
Commodity Code
9405423990
Country Of Origin
CN
EAN
5013588703510
Volts (V)
220/240
Watts (W)
100/150/200
Colour Temp (K)
4000/5000
Lumens (lm)
28000-30000 (at 200w)
Candelas (cd)
10457-10759 (at 200W)
Life Hours
50000
Beam Angle
90°
CRI (Ra)
80
Switching Cycles
30000
Frequency (Hz)
50/60
LED Drive Current
85mA-126mA
Energy Consumption (kWh/1000h)
200
IP Rating
IP66
Height (mm)
262
Diameter (mm)
380
Electric Class
1
Product Category
LED Luminaires - Not Plastic
Product Application
High Temperature Areas
Lumens per Watt (lm/W)
140-150 (at 200W)
Individual Product Weight (kg)
6.6
Outer Box Weight (kg)
8.8
Outer Box Height (mm)
490
Outer Box Width (mm)
450
Outer Box Depth (mm)
260
Outer Box Volume
0.05733
Guarantee
7 Years

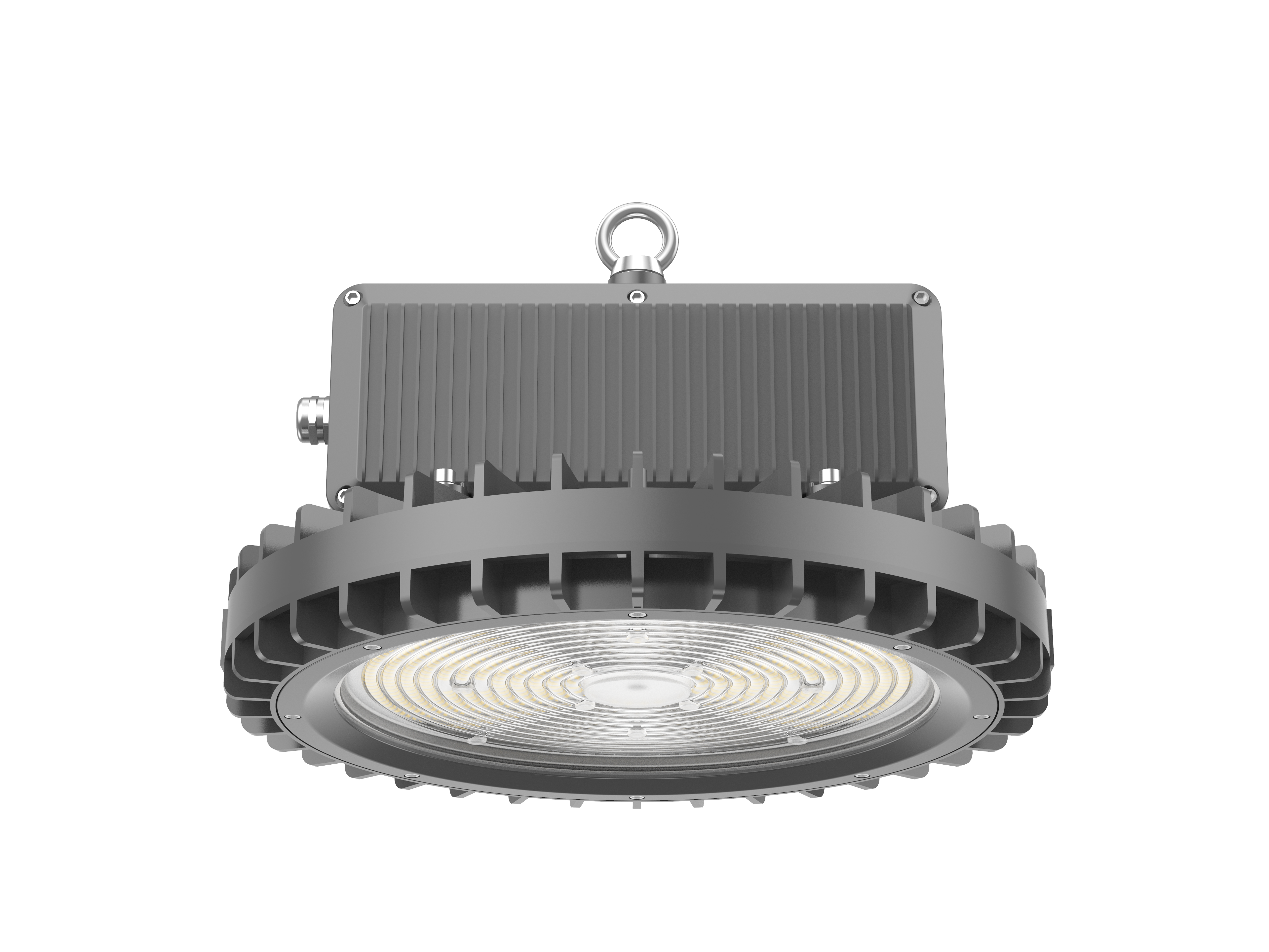

Product Image
