Illumina Linear for Open Areas

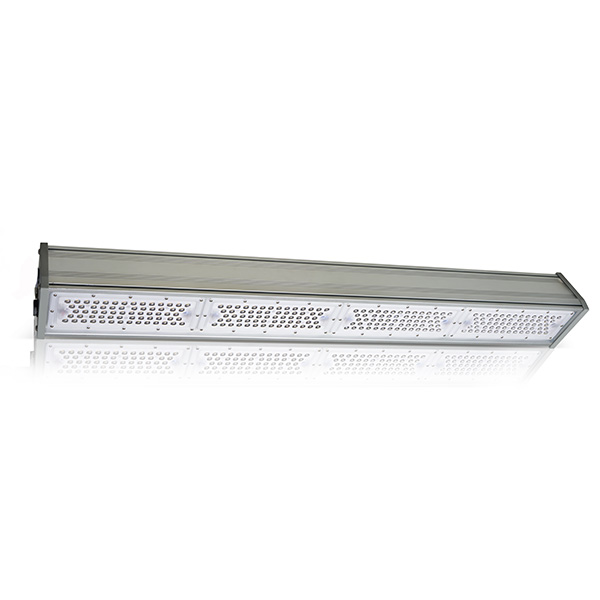

Illumina Linear 200W LED High Open Area 90° - 4000K

Code
08952
Technical Specification
Volts (V)
110/264
Watts (W)
200
Colour Temp (K)
4000
Dimmable?
Yes
Lumens (lm)
26000
The Illumina Linear offers a sleek design coupled with high performance. Perfect for high ceiling warehouses, industrial facilities, exhibition centres, shopping malls & stadiums.
Full Specification
Downloads
Name
Illumina Linear 200W LED High Open Area 90° - 4000K
Volts (V)
110/264
Watts (W)
200
Colour Temp (K)
4000
Dimmable?
Yes
Lumens (lm)
26000
Life Hours
50000
Beam Angle
90°
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
100000
Frequency (Hz)
50/60
LED Drive Current
120mA
Energy Consumption (kWh/1000h)
200
IP Rating
IP65
Commodity Code
9405409990
EAN
5013588089522
Country Of Origin
CN
UNSPSC Code
39111546
Individual Volume
0.03264
Height (mm)
948
Width (mm)
137
Length (mm)
102
Equivalent Watts (W)
400
Single Carton Weight (KG)
6.5
Single Carton Height (mm)
1020
Single Carton Width (mm)
200
Single Carton Depth (mm)
160
Outer Box Qty
1
Individual Product Weight (kg)
5.7
Outer Box Weight (kg)
6.5
Outer Box Height (mm)
1020
Outer Box Width (mm)
200
Outer Box Depth (mm)
160
Outer Box Volume
0.03264
Plastic Packaging Weight (kg)
0.124
Impact Protection
IK10
Lumens per Watt (lm/W)
130
