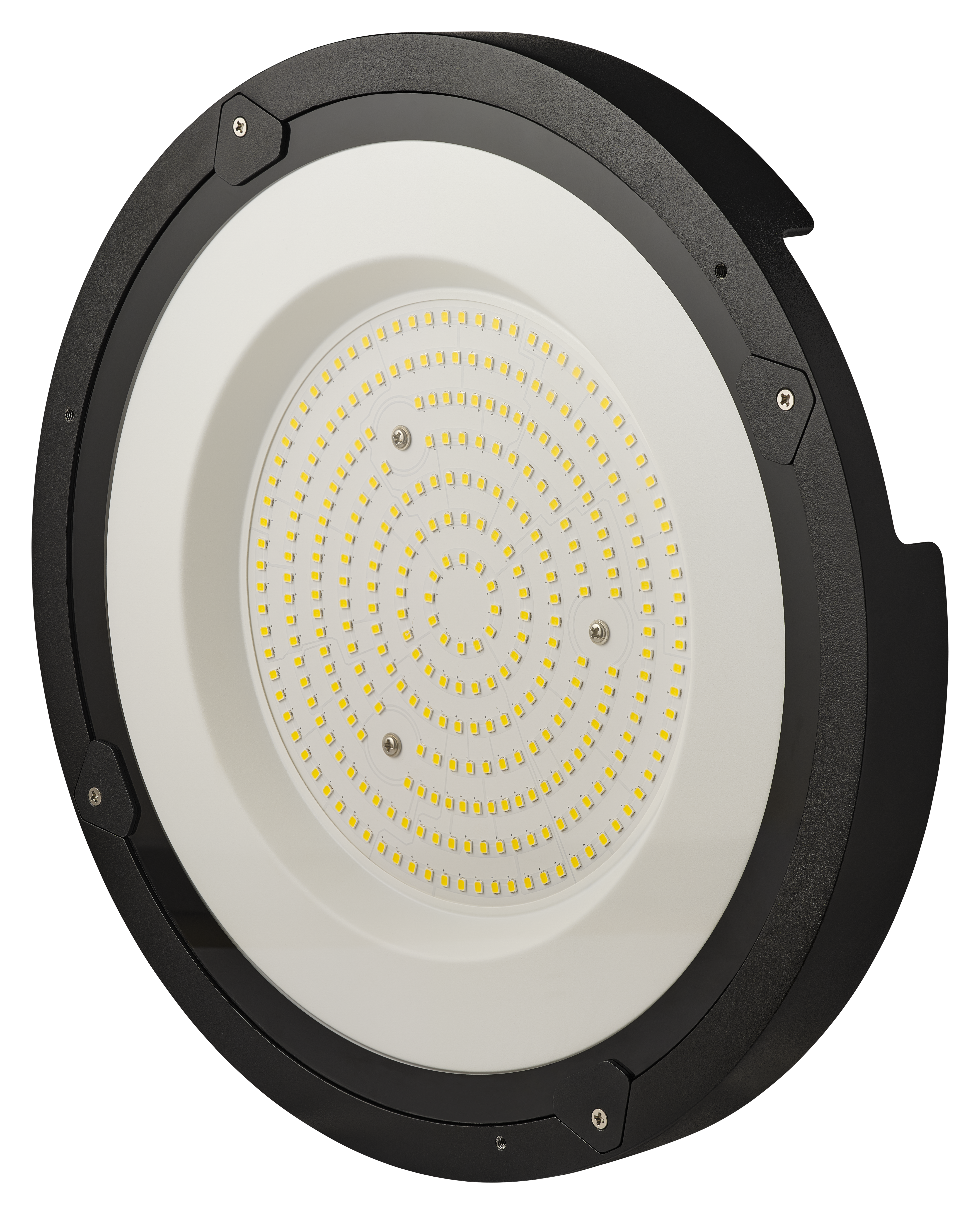

Illumina Muto High/Low Bay

Illumina Muto V2 100/120/150/200W LED Switchable High Bay - 120° Lens - 4000K

Code
08945V2
Technical Specification
Volts (V)
220/240
Watts (W)
100/120/150/200
Colour Temp (K)
4000
Lumens (lm)
12000-24000
The Illumina Muto is our most cost-effective LED High Bay to date.Perfect for all warehouses and factories of any size due to its wattage switchable functionality.
Download Specification
Full Specification
Downloads
Name
Illumina Muto V2 100/120/150/200W LED Switchable High Bay - 120° Lens - 4000K
Commodity Code
9405423990
EAN
5013588900155
Country Of Origin
CN
UNSPSC Code
39111546
Volts (V)
220/240
Watts (W)
100/120/150/200
Colour Temp (K)
4000
Equivalent Watts (W)
150-400
Life Hours
30000
Beam Angle
120°
CRI (Ra)
80
Switching Cycles
30000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
200
IP Rating
IP65
Height (mm)
85
Diameter (mm)
300
Individual Product Weight (kg)
2.3
Single Carton Weight (KG)
2.6
Single Carton Height (mm)
95
Single Carton Width (mm)
317
Single Carton Depth (mm)
317
Individual Volume
0.009546455
Outer Box Qty
4
Impact Protection
IK8
Lumens (lm)
12000-24000
LED Drive Current
43mA
Lumens per Watt (lm/W)
120
Flex
1m
Product Category
LED Luminaires - Not Plastic
Product Application
Commercial / Industrial / Warehousing
Guarantee
3 Years
Outer Carton Barcode
08945V2000004
Surge Protection
2KV
Instructions

Product Image
