LED BLD

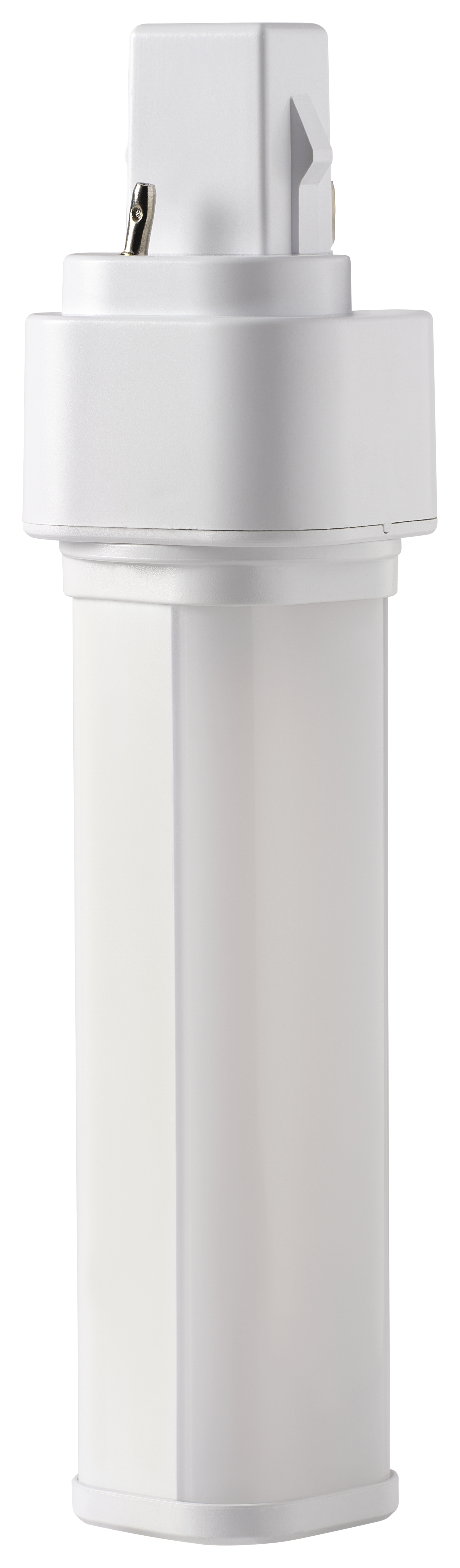

LED 7W Thermoplastic BLD 2/4 Pin Bypass - G24d/Gx24q - 4000K

Code
70082
Technical Specification
Volts (V)
200/240
Watts (W)
7
Cap
G24d/Gx24q
Colour Temp (K)
4000
Dimmable?
No
Lumens (lm)
700
Energy Rating
F
Download Specification
Full Specification
Name
LED 7W Thermoplastic BLD 2/4 Pin Bypass - G24d/Gx24q - 4000K
Commodity Code
8539520000
Country Of Origin
CN
UNSPSC Code
39101628
EAN
5013588700823
Volts (V)
200/240
Watts (W)
7
Cap
G24d/Gx24q
Colour Temp (K)
4000
Dimmable?
No
Lumens (lm)
700
Life Hours
30000
Beam Angle
120°
Energy Rating
F
CRI (Ra)
80
Switching Cycles
15000
Frequency (Hz)
50/60
LED Drive Current
32mA
Energy Consumption (kWh/1000h)
7
Height (mm)
35
Width (mm)
35
Length (mm)
148
Individual Product Weight (kg)
0.053
Single Carton Weight (KG)
0.065
Single Carton Height (mm)
36
Single Carton Width (mm)
36
Single Carton Depth (mm)
151
Individual Volume
0.000195696
Inner Box Qty
1
Outer Box Qty
100
Outer Box Weight (kg)
6.96
Outer Box Height (mm)
328
Outer Box Width (mm)
200
Outer Box Depth (mm)
380
Outer Box Volume
0.024928
Lumens per Watt (lm/W)
100
