LED BLD

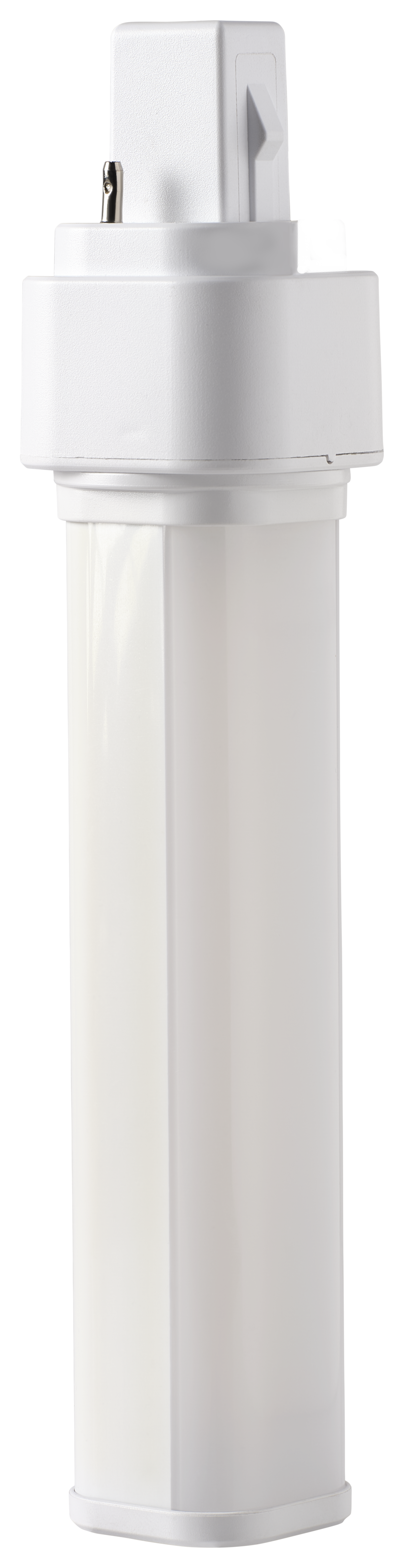

LED 9W Thermoplastic BLD 2/4 Pin Bypass - G24d/Gx24q - 4000K

Code
70083
Technical Specification
Volts (V)
200/240
Watts (W)
9
Cap
G24d/Gx24q
Colour Temp (K)
4000
Dimmable?
No
Lumens (lm)
900
Energy Rating
F
Download Specification
Full Specification
Name
LED 9W Thermoplastic BLD 2/4 Pin Bypass - G24d/Gx24q - 4000K
Commodity Code
8539520000
Country Of Origin
CN
UNSPSC Code
39101628
EAN
5013588700830
Volts (V)
200/240
Watts (W)
9
Cap
G24d/Gx24q
Colour Temp (K)
4000
Dimmable?
No
Lumens (lm)
900
Life Hours
30000
Beam Angle
120°
Energy Rating
F
CRI (Ra)
80
Switching Cycles
15000
Frequency (Hz)
50/60
LED Drive Current
40mA
Energy Consumption (kWh/1000h)
9
Height (mm)
35
Width (mm)
35
Length (mm)
171
Individual Product Weight (kg)
0.06
Single Carton Weight (KG)
0.074
Single Carton Height (mm)
36
Single Carton Width (mm)
36
Single Carton Depth (mm)
174
Individual Volume
0.000225504
Inner Box Qty
1
Outer Box Qty
100
Outer Box Weight (kg)
7.87
Outer Box Height (mm)
375
Outer Box Width (mm)
200
Outer Box Depth (mm)
380
Outer Box Volume
0.0285
Lumens per Watt (lm/W)
100
