LED BLL

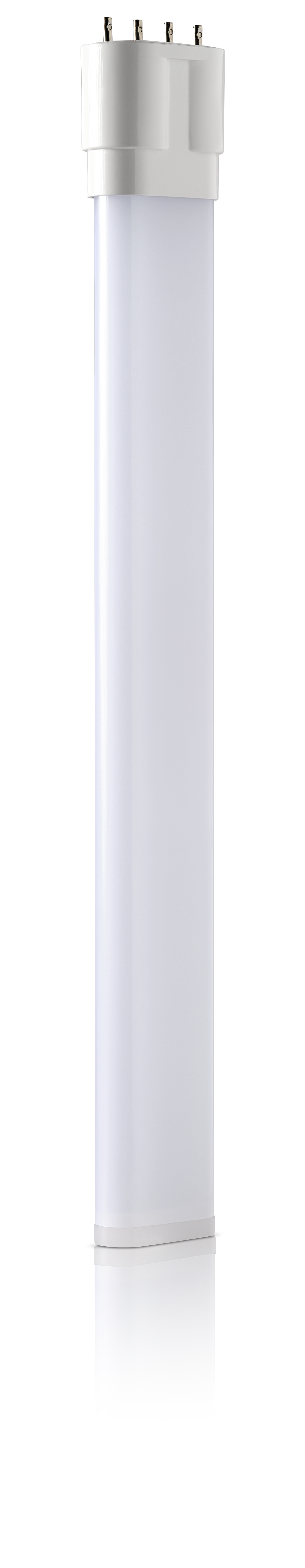

LED 10W Thermoplastic BLL 4 Pin Bypass - 2G11 - 4000K

Code
70086
Technical Specification
Volts (V)
200/240
Watts (W)
10
Cap
2G11
Colour Temp (K)
4000
Lumens (lm)
1000
Energy Rating
F
Our LED Thermoplastic BL Lamps provide the energy saving benefits of LED without the need to change fittings.
Download Specification
Full Specification
Downloads
Name
LED 10W Thermoplastic BLL 4 Pin Bypass - 2G11 - 4000K
Commodity Code
8539520000
Country Of Origin
CN
UNSPSC Code
39101628
EAN
5013588700861
Volts (V)
200/240
Watts (W)
10
Cap
2G11
Colour Temp (K)
4000
Lumens (lm)
1000
Life Hours
30000
Beam Angle
120°
Energy Rating
F
CRI (Ra)
80
Switching Cycles
15000
Frequency (Hz)
50/60
LED Drive Current
75mA
Energy Consumption (kWh/1000h)
10
Height (mm)
44
Width (mm)
24
Length (mm)
327
Individual Product Weight (kg)
0.128
Single Carton Weight (KG)
0.178
Single Carton Height (mm)
28
Single Carton Width (mm)
48
Single Carton Depth (mm)
335
Individual Volume
0.00045024
Inner Box Qty
1
Outer Box Qty
30
Outer Box Weight (kg)
5.89
Outer Box Height (mm)
200
Outer Box Width (mm)
260
Outer Box Depth (mm)
355
Outer Box Volume
0.01846
Lumens per Watt (lm/W)
100
EPREL Registration Number
1979287
Product Category
LED Lamps
