LED BLL

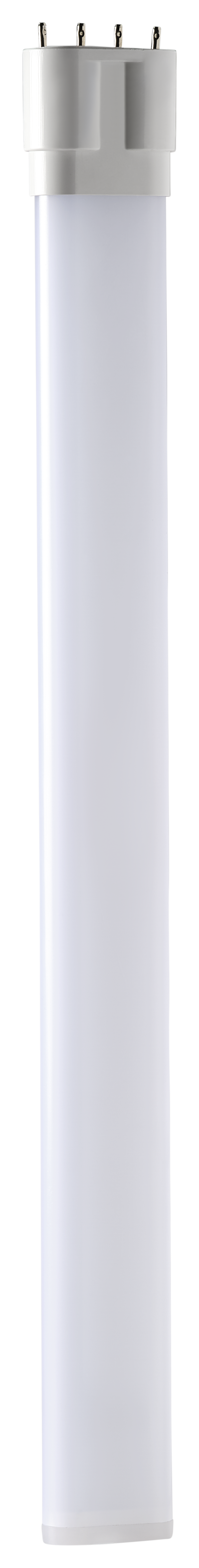

LED 18W Thermoplastic BLL 2/4 Pin Bypass - 2G11 - 4000K

Code
70087
Technical Specification
Volts (V)
200/240
Watts (W)
18
Cap
2G11
Colour Temp (K)
4000
Dimmable?
No
Lumens (lm)
1800
Energy Rating
F
Download Specification
Full Specification
Name
LED 18W Thermoplastic BLL 2/4 Pin Bypass - 2G11 - 4000K
Commodity Code
8539520000
Country Of Origin
CN
UNSPSC Code
39101628
EAN
5013588700878
Volts (V)
200/240
Watts (W)
18
Cap
2G11
Colour Temp (K)
4000
Dimmable?
No
Lumens (lm)
1800
Life Hours
30000
Beam Angle
120°
Energy Rating
F
CRI (Ra)
80
Switching Cycles
15000
Frequency (Hz)
50/60
LED Drive Current
135mA
Energy Consumption (kWh/1000h)
18
Height (mm)
44
Width (mm)
24
Length (mm)
542
Individual Product Weight (kg)
0.186
Single Carton Weight (KG)
0.281
Single Carton Height (mm)
28
Single Carton Width (mm)
48
Single Carton Depth (mm)
550
Individual Volume
0.0007392
Inner Box Qty
1
Outer Box Qty
30
Outer Box Weight (kg)
9.18
Outer Box Height (mm)
200
Outer Box Width (mm)
260
Outer Box Depth (mm)
570
Outer Box Volume
0.02964
Lumens per Watt (lm/W)
100
