LED BLT

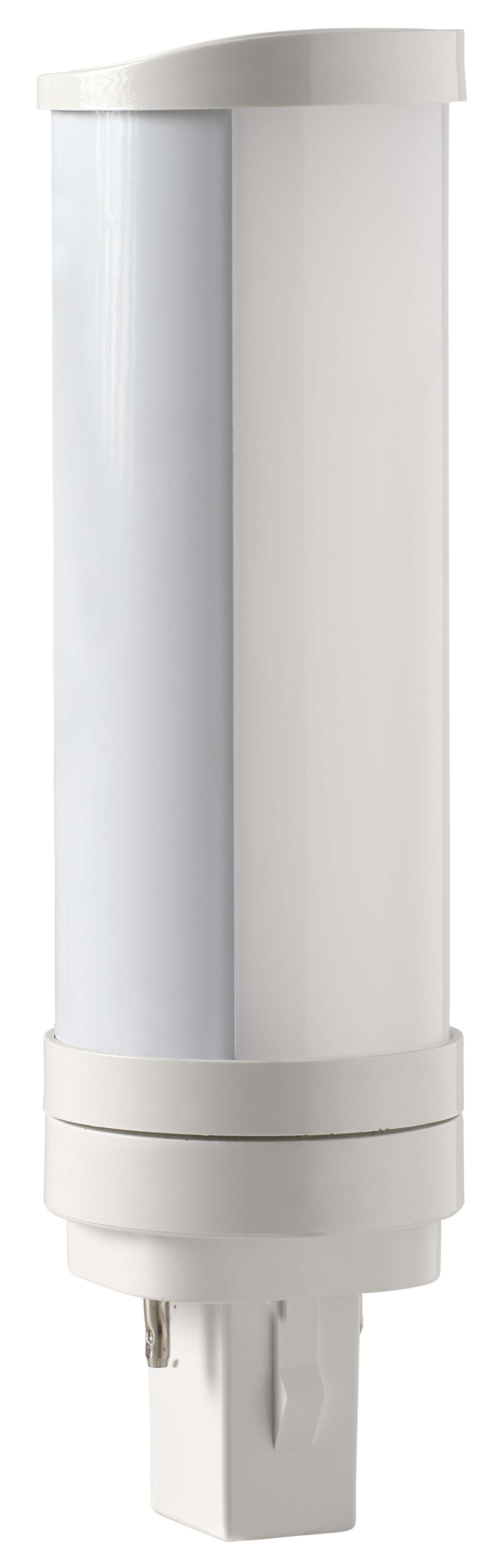

LED 7W Thermoplastic BLT 2/4 Pin Bypass - G24d/Gx24q - 4000K

Code
70084
Technical Specification
Volts (V)
200/240
Watts (W)
7
Cap
G24d/Gx24q
Colour Temp (K)
4000
Dimmable?
No
Lumens (lm)
700
Energy Rating
F
Download Specification
Full Specification
Name
LED 7W Thermoplastic BLT 2/4 Pin Bypass - G24d/Gx24q - 4000K
Commodity Code
8539520000
Country Of Origin
CN
UNSPSC Code
39101628
EAN
5013588700847
Volts (V)
200/240
Watts (W)
7
Cap
G24d/Gx24q
Colour Temp (K)
4000
Dimmable?
No
Lumens (lm)
700
Life Hours
30000
Beam Angle
120°
Energy Rating
F
CRI (Ra)
80
Switching Cycles
15000
Frequency (Hz)
50/60
LED Drive Current
32mA
Energy Consumption (kWh/1000h)
7
Height (mm)
37
Width (mm)
37
Length (mm)
124
Individual Product Weight (kg)
0.081
Single Carton Weight (KG)
0.093
Single Carton Height (mm)
38
Single Carton Width (mm)
38
Single Carton Depth (mm)
126
Individual Volume
0.000181944
Inner Box Qty
1
Outer Box Qty
50
Outer Box Weight (kg)
5.13
Outer Box Height (mm)
150
Outer Box Width (mm)
210
Outer Box Depth (mm)
410
Outer Box Volume
0.012915
Lumens per Watt (lm/W)
100
