LED BLT

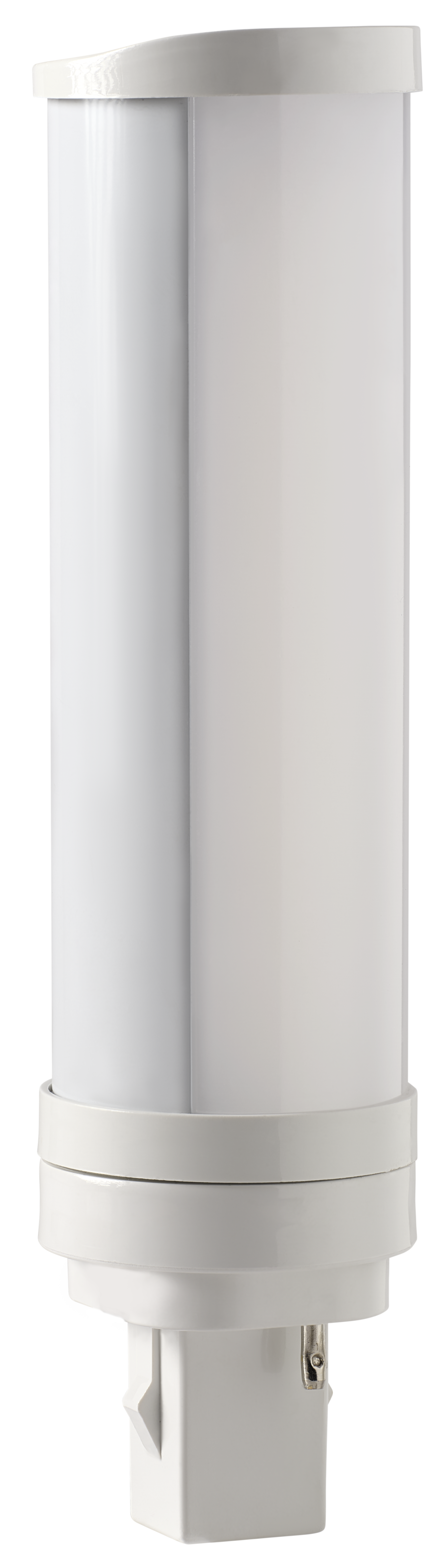

LED 9W Thermoplastic BLT 2/4 Pin Bypass - G24d/Gx24q - 4000K

Code
70085
Technical Specification
Volts (V)
200/240
Watts (W)
9
Cap
G24d/Gx24q
Colour Temp (K)
4000
Dimmable?
No
Lumens (lm)
900
Energy Rating
F
Download Specification
Full Specification
Name
LED 9W Thermoplastic BLT 2/4 Pin Bypass - G24d/Gx24q - 4000K
Commodity Code
8539520000
Country Of Origin
CN
UNSPSC Code
39101628
EAN
5013588700854
Volts (V)
200/240
Watts (W)
9
Cap
G24d/Gx24q
Colour Temp (K)
4000
Dimmable?
No
Lumens (lm)
900
Life Hours
30000
Beam Angle
120°
Energy Rating
F
CRI (Ra)
80
Switching Cycles
15000
Frequency (Hz)
50/60
LED Drive Current
40mA
Energy Consumption (kWh/1000h)
9
Height (mm)
37
Width (mm)
37
Length (mm)
139
Individual Product Weight (kg)
0.109
Single Carton Weight (KG)
0.124
Single Carton Height (mm)
38
Single Carton Width (mm)
38
Single Carton Depth (mm)
140
Individual Volume
0.00020216
Inner Box Qty
1
Outer Box Qty
50
Outer Box Weight (kg)
6.8
Outer Box Height (mm)
165
Outer Box Width (mm)
210
Outer Box Depth (mm)
410
Outer Box Volume
0.0142065
Lumens per Watt (lm/W)
100
