LED Thermoplastic BLT

LED 7W CCT Thermoplastic BLT 2/4 Pin Bypass (Eq 13w + 18w)

Code
71024
Technical Specification
Volts (V)
220/240
Cap
GX24d
Energy Rating
F
Our LED Thermoplastic BL Lamps provide the energy saving benefits of LED without the need to change fittings.
Download Specification
Full Specification
Downloads
Name
LED 7W CCT Thermoplastic BLT 2/4 Pin Bypass (Eq 13w + 18w)
Commodity Code
8539520000
EAN
5063695000101
Volts (V)
220/240
Cap
GX24d
Life Hours
30000
Beam Angle
120°
Energy Rating
F
CRI (Ra)
80
Guarantee
5 Years
Switching Cycles
15000
Frequency (Hz)
50
LED Drive Current
32mA
Energy Consumption (kWh/1000h)
7
IP Rating
IP20
Height (mm)
37
Width (mm)
37
Length (mm)
132
Power Factor
0.9
Surge Protection
500V
Lumens per Watt (lm/W)
100
Operating Temperature
-20°C - +45°C
Wattage (W)
7
Equivalent Wattage (W)
18
Colour Temperature (K)
3000/4000/6000
Candelas
120
IK Rating
IK03
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EPREL Product Type
LIGHT_SOURCE_VERSION
EPREL - Registered As
Importer
UOM For Battery Weight
KG
Mains or Non-Mains
Mains
Connected Light Source
No
Colour Tunable Light Source
Yes
High Luminance Light Source
No
Anti-Glare Shield
No
Lumen output (lm)
700
Directional or Non-Directional
Non-directional
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Catalogue Page

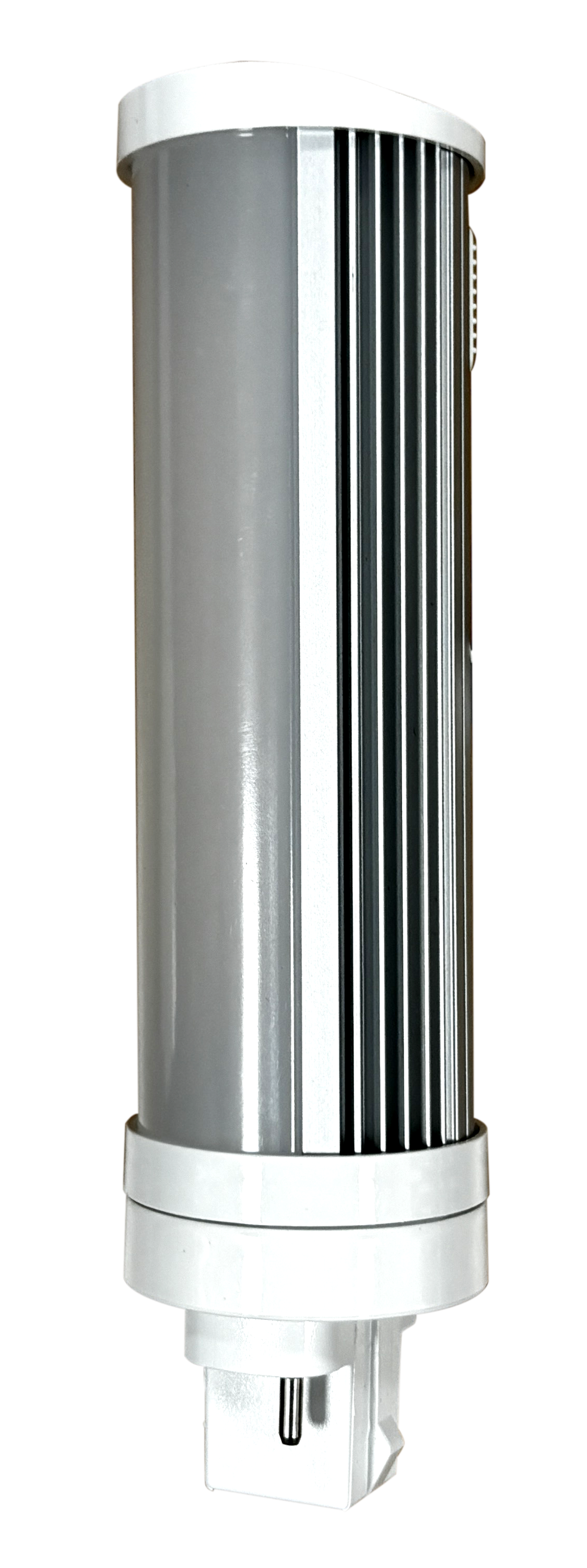

Product Image
