LED Metal Halide

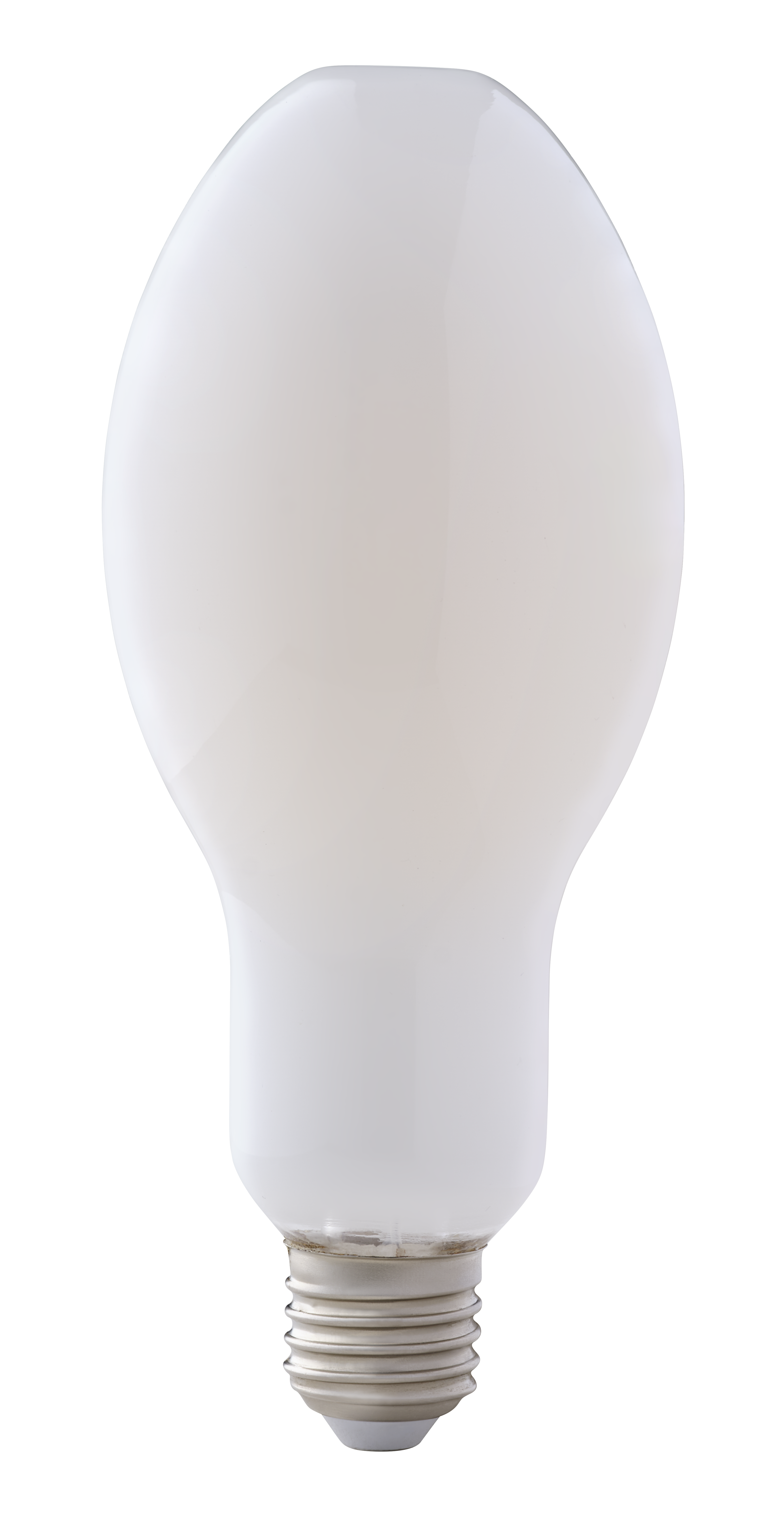

LED 18W HID Alternative ES - Elliptical - 4000K

Code
61005
Technical Specification
Volts (V)
220/240
Cap
ES
Energy Rating
C
BELL LED MBF/U lamps offer a simple, cost-effective LED solution with a quick return on investment, designed to replace High-Intensity Discharge (HID) lamps. This next-generation LED post-top lighting provides all the advantages of LED-to-HID replacement, such as energy efficiency and long lifespan, while delivering immediate savings with a low upfront cost. BELL LED MBF/U lamps are engineered to match the size and light distribution of traditional HID lamps, and with our high-power LED filament technology, the difference is seamless. Additionally, their unique IP65-rated design allows them to be used in both indoor and outdoor applications.
Download Specification
Full Specification
Downloads
Name
LED 18W HID Alternative ES - Elliptical - 4000K
Volts (V)
220/240
Cap
ES
Lumens per Watt (lm/W)
167
Life Hours
25000
Beam Angle
360°
Energy Rating
C
CRI (Ra)
80
Switching Cycles
20000
Frequency (Hz)
50/60
LED Drive Current
83mA
Energy Consumption (kWh/1000h)
18
Height (mm)
180
Width (mm)
75
Length (mm)
75
Diameter (mm)
75
EAN
5013588610054
Commodity Code
8539322000
Individual Product Weight (kg)
0.119
Outer Box Weight (kg)
0.922
Outer Box Height (mm)
228
Outer Box Width (mm)
314
Outer Box Depth (mm)
211
Outer Box Qty
6
Outer Box Volume
0.015105912
Guarantee
3 Years
Surge Protection
2kV
Wattage (W)
18
Equivalent Wattage (W)
80
Colour Temperature (K)
4000
Minimum Order Quantity
1
Single Box Weight (kg)
0.2
Single box Height (mm)
218
Single box Width (mm)
100
Single Box Depth (mm)
100
Single Box Volume
0.00218
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
EPREL Product Type
LIGHT_SOURCE_VERSION
EPREL - Registered As
Importer
UOM For Battery Weight
KG
Mains or Non-Mains
Mains
Connected Light Source
No
Colour Tunable Light Source
No
High Luminance Light Source
No
Anti-Glare Shield
No
Lumen output (lm)
3000
Directional or Non-Directional
Non-directional
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
