LED Metal Halide

LED 18W HID Alternative ES - Elliptical - 3000K

Code
61006
Technical Specification
Volts (V)
220/240
Watts (W)
18
Cap
ES
Colour Temp (K)
3000
Lumens (lm)
2800
Energy Rating
D
BELL LED MBF/U lamps offer a simple, cost-effective LED solution with a quick return on investment, designed to replace High-Intensity Discharge (HID) lamps. This next-generation LED post-top lighting provides all the advantages of LED-to-HID replacement, such as energy efficiency and long lifespan, while delivering immediate savings with a low upfront cost. BELL LED MBF/U lamps are engineered to match the size and light distribution of traditional HID lamps, and with our high-power LED filament technology, the difference is seamless. Additionally, their unique IP65-rated design allows them to be used in both indoor and outdoor applications.
Download Specification
Full Specification
Name
LED 18W HID Alternative ES - Elliptical - 3000K
Volts (V)
220/240
Watts (W)
18
Cap
ES
Colour Temp (K)
3000
Lumens (lm)
2800
Lumens per Watt (lm/W)
156
Equivalent Watts (W)
80
Life Hours
25000
Beam Angle
360°
Energy Rating
D
CRI (Ra)
80
Switching Cycles
20000
Frequency (Hz)
50/60
LED Drive Current
83mA
Energy Consumption (kWh/1000h)
18
Height (mm)
180
Width (mm)
75
Length (mm)
75
Diameter (mm)
75
EAN
5013588610061
Country Of Origin
CN
Commodity Code
8539322000
Individual Product Weight (kg)
0.119
Single Carton Weight (KG)
0.2
Single Carton Height (mm)
218
Single Carton Width (mm)
100
Single Carton Depth (mm)
100
Individual Volume
0.00218
Outer Box Weight (kg)
0.208
Outer Box Height (mm)
228
Outer Box Width (mm)
314
Outer Box Depth (mm)
211
Outer Box Qty
6
Outer Box Volume
0.015105912
EPREL Registration Number
2122944
Product Category
Mercury or Sodium Vapour Lamps
Outer Carton Barcode
6100600000006
Product Application
LED Metal Halide Lamps
Guarantee
3 Years
Surge Protection
2kV

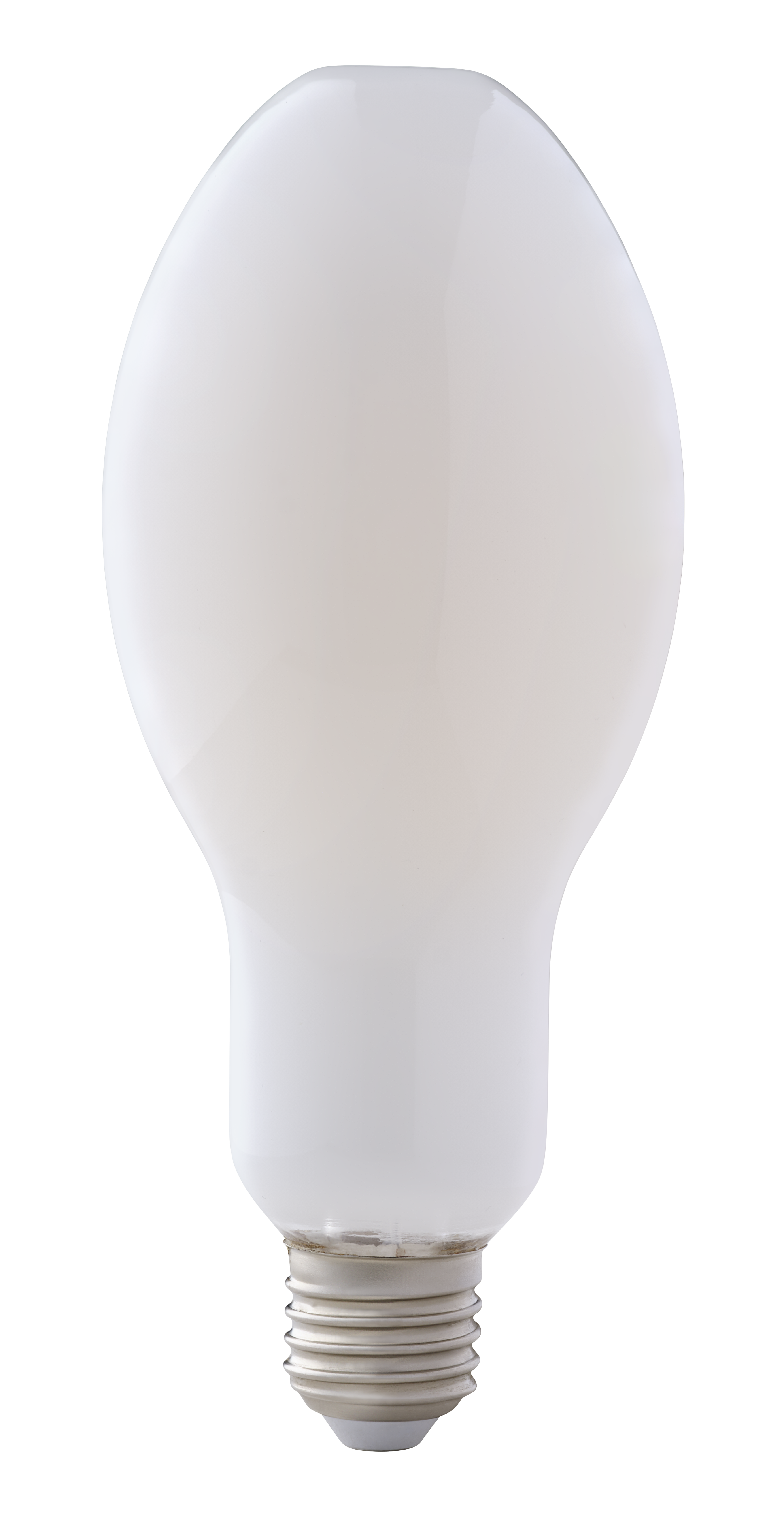

Product Image
