LED Metal Halide

LED 26W GES Metal Halide/Mercury Lamp - 3000K

Code
61010
Technical Specification
Volts (V)
220/240
Watts (W)
26
Cap
GES
Colour Temp (K)
3000
Lumens (lm)
4000
Energy Rating
D
BELL LED MBF/U lamps offer a simple, cost-effective LED solution with a quick return on investment, designed to replace High-Intensity Discharge (HID) lamps. This next-generation LED post-top lighting provides all the advantages of LED-to-HID replacement, such as energy efficiency and long lifespan, while delivering immediate savings with a low upfront cost. BELL LED MBF/U lamps are engineered to match the size and light distribution of traditional HID lamps, and with our high-power LED filament technology, the difference is seamless. Additionally, their unique IP65-rated design allows them to be used in both indoor and outdoor applications.
Download Specification
Full Specification
Name
LED 26W GES Metal Halide/Mercury Lamp - 3000K
Volts (V)
220/240
Watts (W)
26
Cap
GES
Colour Temp (K)
3000
Lumens (lm)
4000
Lumens per Watt (lm/W)
154
Equivalent Watts (W)
125
Life Hours
25000
Beam Angle
360°
Energy Rating
D
CRI (Ra)
80
Switching Cycles
20000
Frequency (Hz)
50/60
LED Drive Current
57mA
Energy Consumption (kWh/1000h)
26
Height (mm)
230
Width (mm)
90
Length (mm)
90
Diameter (mm)
90
EAN
5013588610108
Country Of Origin
CN
Commodity Code
8539322000
Individual Product Weight (kg)
0.21
Single Carton Weight (KG)
0.328
Single Carton Height (mm)
270
Single Carton Width (mm)
112
Single Carton Depth (mm)
112
Individual Volume
0.00338688
Outer Box Weight (kg)
0.509
Outer Box Height (mm)
280
Outer Box Width (mm)
396
Outer Box Depth (mm)
278
Outer Box Qty
6
Outer Box Volume
0.03082464
EPREL Registration Number
2122949
Product Category
Mercury or Sodium Vapour Lamps
Outer Carton Barcode
6101000000006
Product Application
LED Metal Halide Lamps
Guarantee
3 Years
Surge Protection
2kV

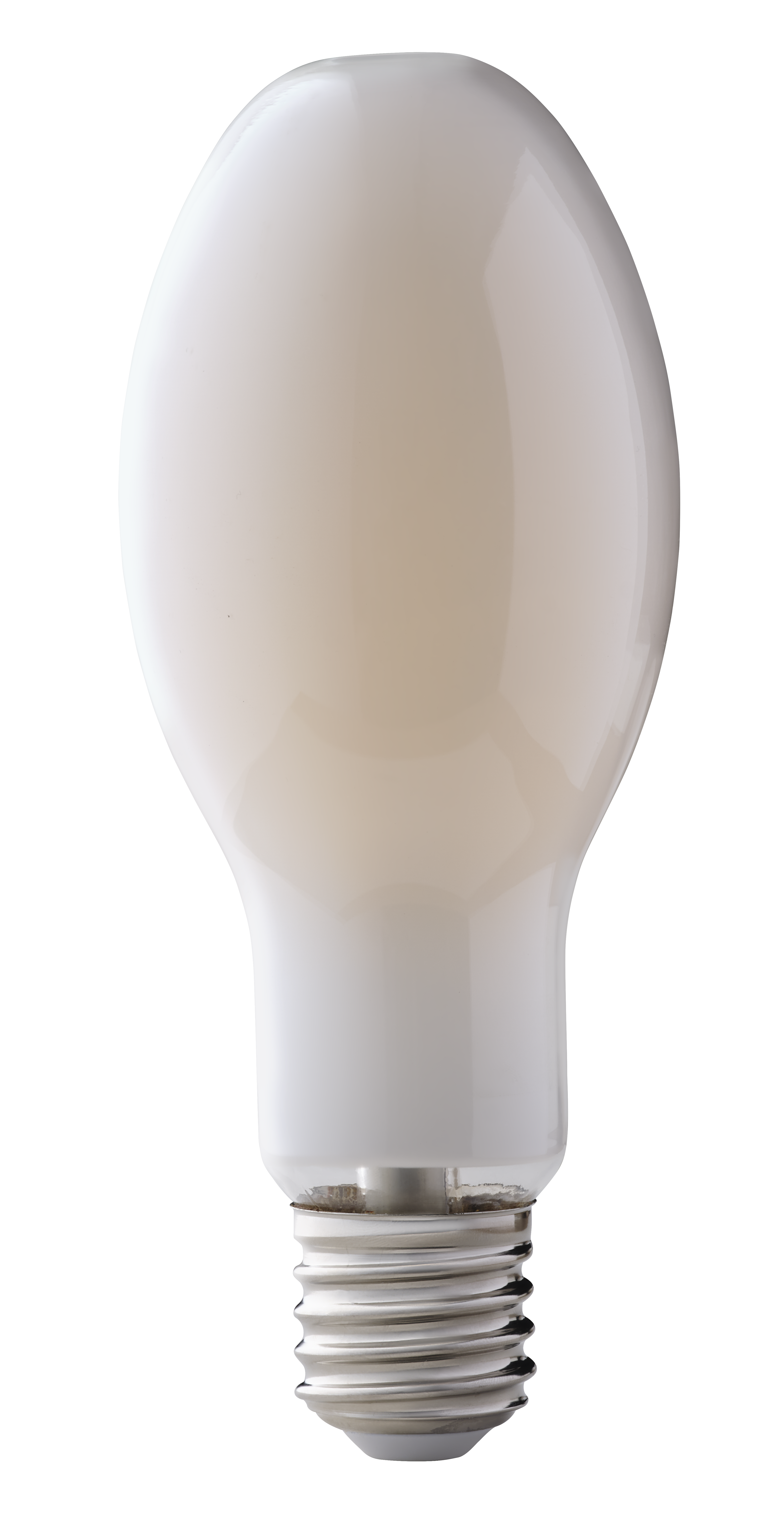

Product Image
