LED Metal Halide

LED 18W ES Metal Halide/Son-T - 3000K

Code
61013
Technical Specification
Volts (V)
220/240
Cap
ES
Energy Rating
C
BELL LED Metal Halide/SON alternative lamps offer a simple, cost-effective LED solution with a quick return on investment, designed to replace High-Intensity Discharge (HID) lamps. This next-generation LED post-top lighting provides all the advantages of LED-to-HID replacement, such as energy efficiency and long lifespan, while delivering immediate savings with a low upfront cost. BELL LED Metal Halide/SON alternative lamps are engineered to match the size and light distribution of traditional HID lamps, and with our high-power LED filament technology, the difference is seamless. Additionally, their unique IP65-rated design allows them to be used in both indoor and outdoor applications.
Download Specification
Full Specification
Name
LED 18W ES Metal Halide/Son-T - 3000K
EAN
5013588610139
Commodity Code
8539322000
Volts (V)
220/240
Cap
ES
Life Hours
25000
Beam Angle
330°
Energy Rating
C
CRI (Ra)
70
Switching Cycles
20000
Frequency (Hz)
50/60
LED Drive Current
85mA
Energy Consumption (kWh/1000h)
18
Height (mm)
173
Width (mm)
46
Length (mm)
46
Diameter (mm)
46
Lumens per Watt (lm/W)
167
Individual Product Weight (kg)
0.104
Outer Box Weight (kg)
0.875
Outer Box Height (mm)
237
Outer Box Width (mm)
171
Outer Box Depth (mm)
205
Outer Box Qty
6
Outer Box Volume
0.008308035
Guarantee
3 Years
Surge Protection
2kV
Wattage (W)
18
Equivalent Wattage (W)
50
Colour Temperature (K)
3000
Single Box Weight (kg)
0.149
Single box Height (mm)
195
Single box Width (mm)
60
Single Box Depth (mm)
60
Single Box Volume
0.000702
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EPREL Product Type
LIGHT_SOURCE_VERSION
EPREL - Registered As
Importer
UOM For Battery Weight
KG
Mains or Non-Mains
Mains
Connected Light Source
No
Colour Tunable Light Source
No
High Luminance Light Source
No
Anti-Glare Shield
No
Lumen output (lm)
3000
Directional or Non-Directional
Non-directional
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No

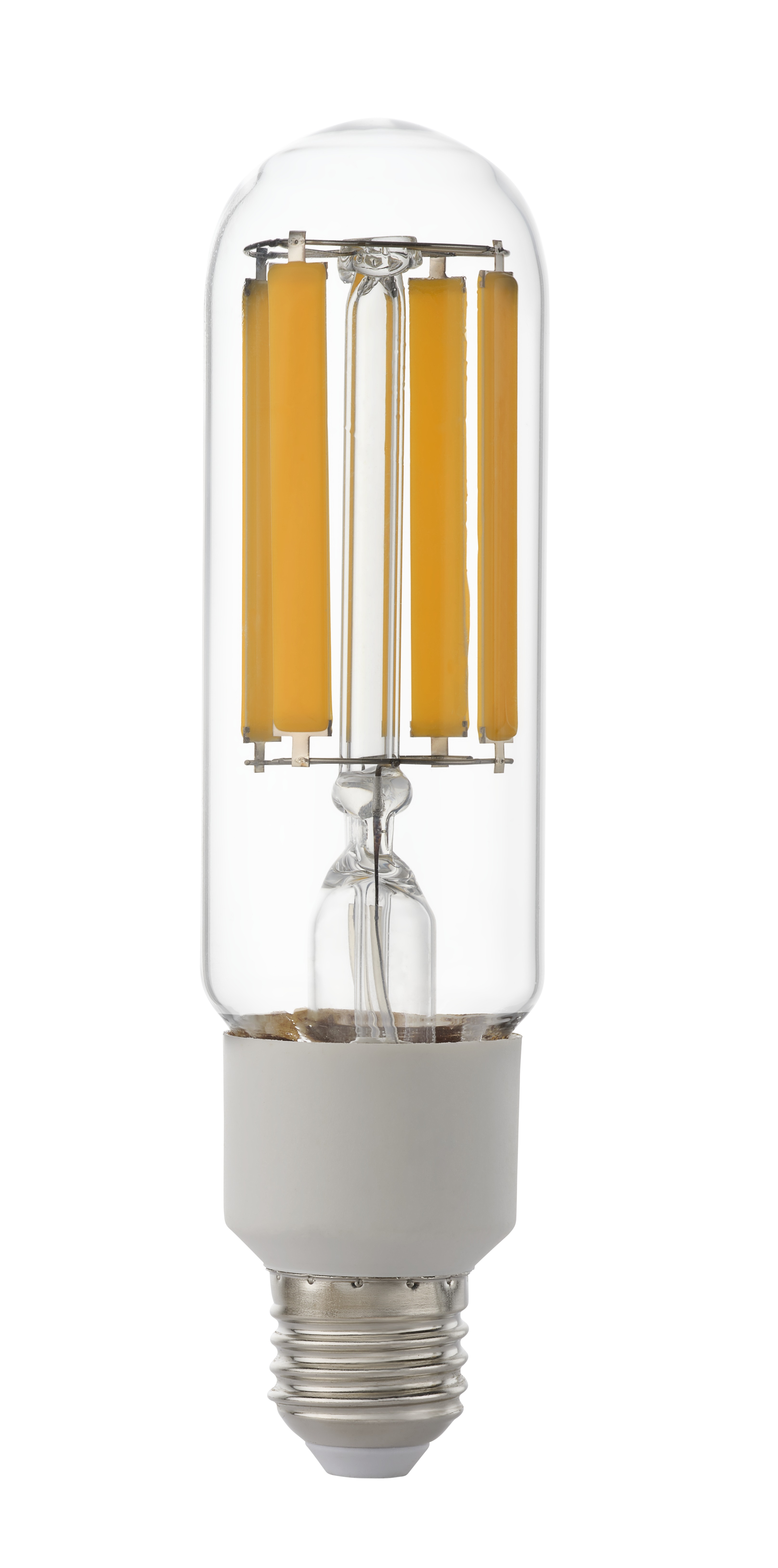

Product Image
