LED Metal Halide

LED 18W ES Metal Halide/Son-T - 4000K

Code
61014
Technical Specification
Volts (V)
220/240
Watts (W)
18
Cap
ES
Colour Temp (K)
4000
Lumens (lm)
3000
Energy Rating
C
BELL LED Metal Halide/SON alternative lamps offer a simple, cost-effective LED solution with a quick return on investment, designed to replace High-Intensity Discharge (HID) lamps. This next-generation LED post-top lighting provides all the advantages of LED-to-HID replacement, such as energy efficiency and long lifespan, while delivering immediate savings with a low upfront cost. BELL LED Metal Halide/SON alternative lamps are engineered to match the size and light distribution of traditional HID lamps, and with our high-power LED filament technology, the difference is seamless. Additionally, their unique IP65-rated design allows them to be used in both indoor and outdoor applications.
Download Specification
Full Specification
Name
LED 18W ES Metal Halide/Son-T - 4000K
EAN
5013588610146
Country Of Origin
CN
Commodity Code
8539322000
Volts (V)
220/240
Watts (W)
18
Cap
ES
Colour Temp (K)
4000
Lumens (lm)
3000
Equivalent Watts (W)
50
Life Hours
25000
Beam Angle
330°
Energy Rating
C
CRI (Ra)
70
Switching Cycles
20000
Frequency (Hz)
50/60
LED Drive Current
85mA
Energy Consumption (kWh/1000h)
18
Height (mm)
173
Width (mm)
46
Length (mm)
46
Diameter (mm)
46
Lumens per Watt (lm/W)
167
Individual Product Weight (kg)
0.104
Single Carton Weight (KG)
0.149
Single Carton Height (mm)
195
Single Carton Width (mm)
60
Single Carton Depth (mm)
60
Individual Volume
0.000702
Outer Box Weight (kg)
0.251
Outer Box Height (mm)
237
Outer Box Width (mm)
171
Outer Box Depth (mm)
205
Outer Box Qty
6
Outer Box Volume
0.008308035
EPREL Registration Number
2226211
Product Category
Mercury or Sodium Vapour Lamps
Outer Carton Barcode
6101400000006
Product Application
LED Metal Halide Lamps
Guarantee
3 Years
Surge Protection
2kV
Single Box Packaging Weight (kg)
0.045

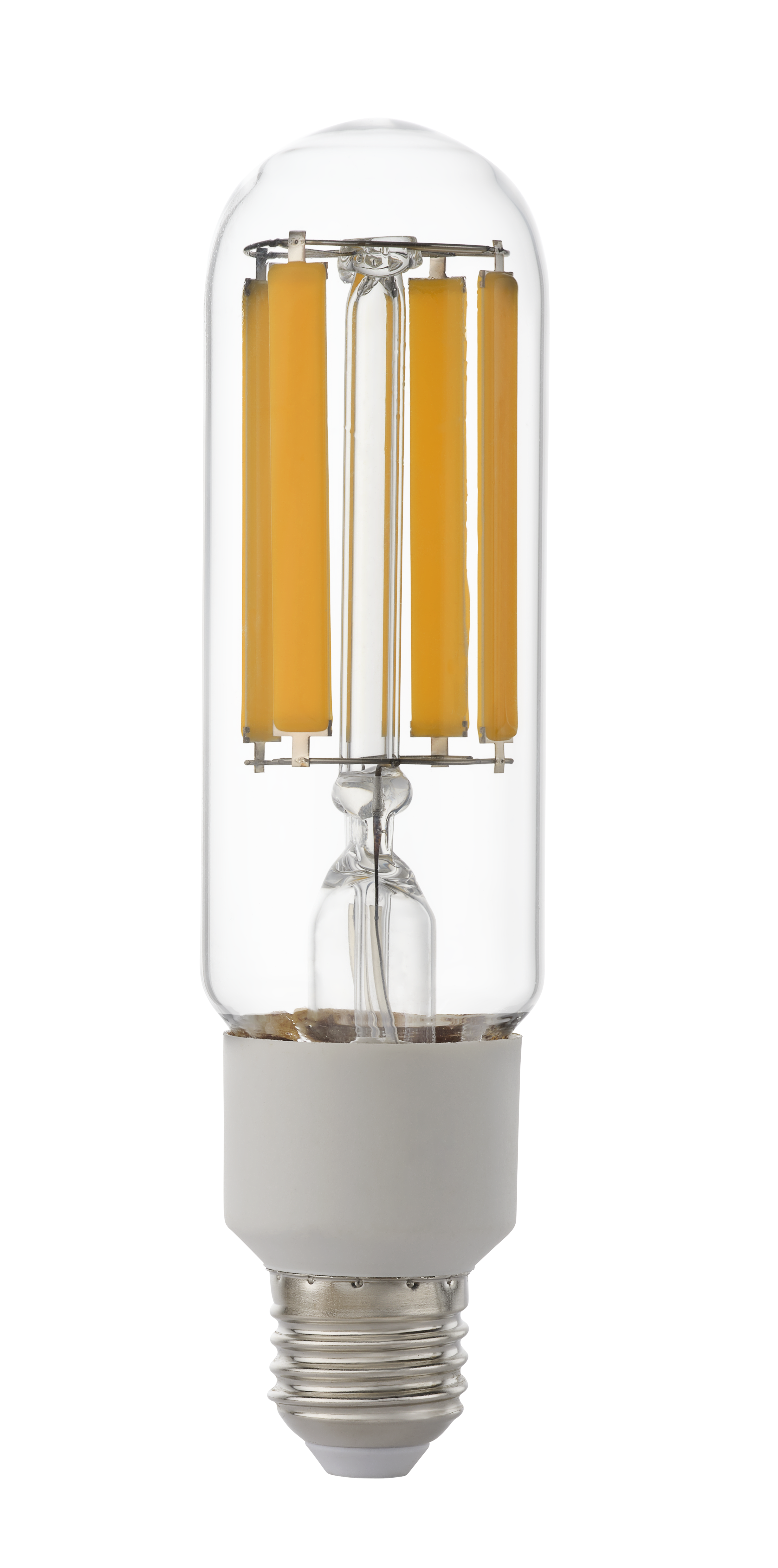

Product Image
