New ERP LED Filament Round Dimmable

LED 3.3W Dimmable Clear Filament Round - SBC - 4000K

Code
60834
Technical Specification
Volts (V)
240
Cap
SBC
Energy Rating
D
The LED Filament Range combines LED technology with the elegance of Incandescent Lamps. Creating a welcoming atmosphere with a retro feel, our LED Filament Range offers smooth dimming on rotary and digital dimming systems. The Filament Round is ideal for all bedside decorative lighting along with all other similar applications.
Download Specification
Full Specification
Name
LED 3.3W Dimmable Clear Filament Round - SBC - 4000K
Volts (V)
240
Cap
SBC
Commodity Code
8539520000
EAN
5013588002972
Lumens per Watt (lm/W)
142
Life Hours
15000
Beam Angle
300°
Energy Rating
D
CRI (Ra)
80
Guarantee
3 Years
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
4
Switching Cycles
7500
LED Drive Current
21
IP Rating
IP20
Height (mm)
78
Diameter (mm)
45
Power Factor
0.7
Individual Product Weight (kg)
0.02
Inner Box Weight (kg)
0.33
Inner Box Height (mm)
240
Inner Box Width (mm)
100
Inner Box Depth (mm)
95
Inner Box Volume
0.00228
Outer Box Weight (kg)
3.6
Outer Box Height (mm)
525
Outer Box Width (mm)
260
Outer Box Depth (mm)
210
Inner Box Qty
10
Outer Box Qty
100
Outer Box Volume
0.028665
Wattage (W)
3.3
Colour Temperature (K)
4000
Single Box Weight (kg)
0.03
Single box Height (mm)
45
Single box Width (mm)
45
Single Box Depth (mm)
85
Single Box Volume
0.000172125
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EPREL Product Type
LIGHT_SOURCE_VERSION
EPREL - Registered As
Importer
UOM For Battery Weight
KG
Mains or Non-Mains
Mains
Connected Light Source
No
Colour Tunable Light Source
No
High Luminance Light Source
No
Anti-Glare Shield
No
Lumen output (lm)
470
Directional or Non-Directional
Non-directional
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Dimmable
Yes
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
Yes
Dura Batten
No
Dura V2 Batten
No
Filament
Yes
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
Yes
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No

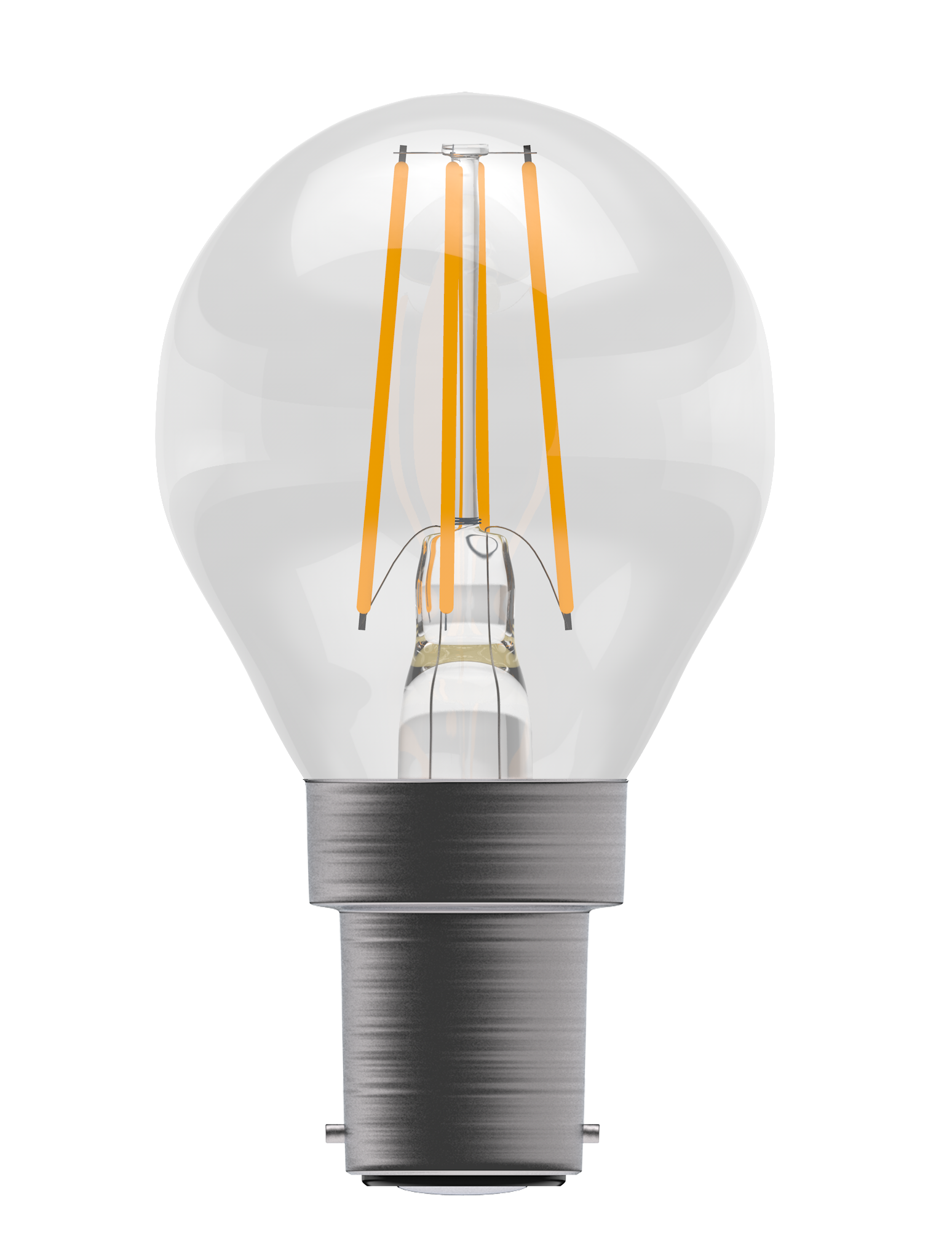

Product Image
