Genesis Filament Candle Dimmable

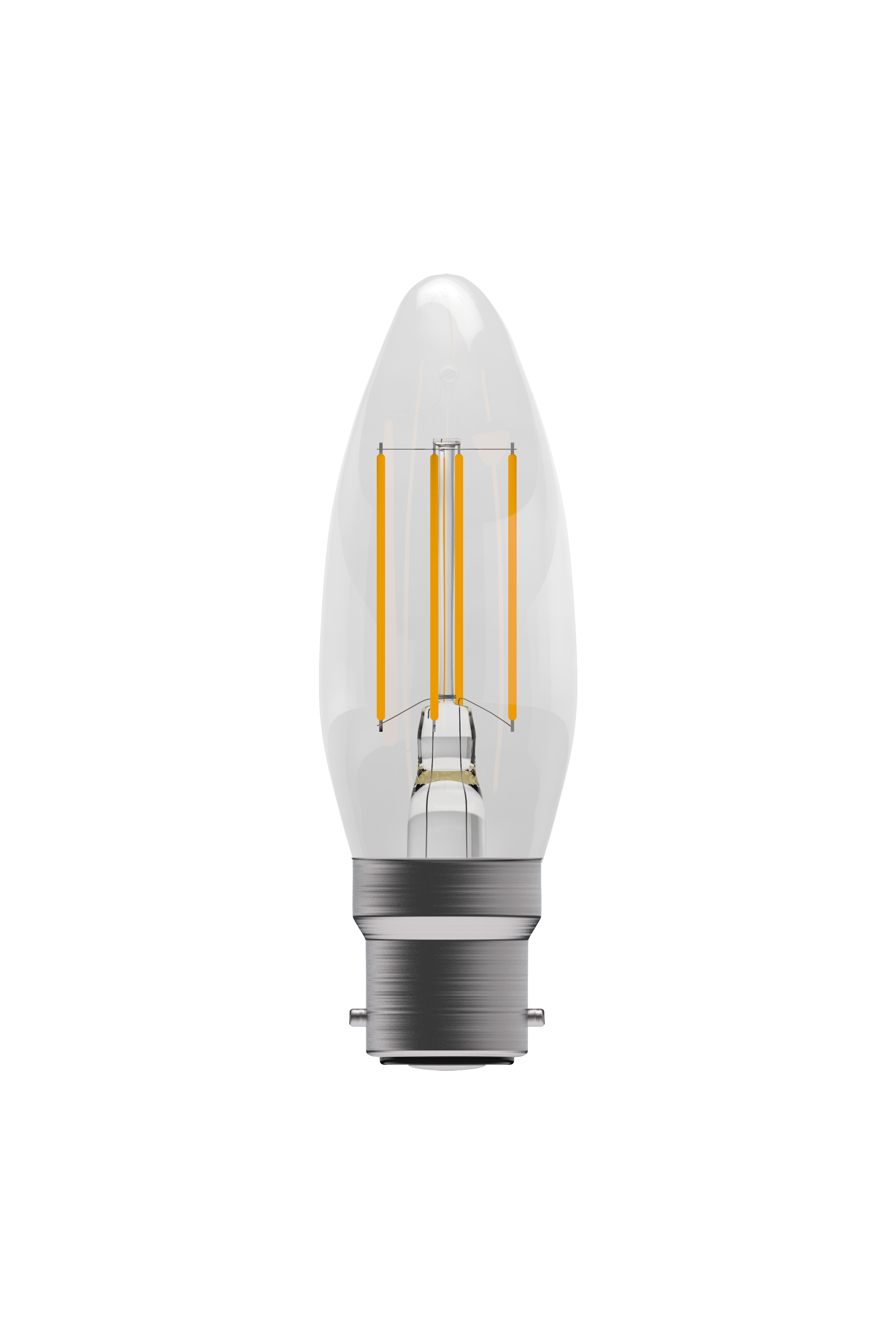

Genesis LED 4.5W Dimmable Filament Clear Candle - BC - 2700K

Code
60954
Technical Specification
Volts (V)
220/240
Cap
B22
Energy Rating
F
Our LED filament lamps provide the elegance of incandescent lamps with the power of LED technology. The warm white colour temperature creates a welcoming atmosphere and our dimmable alternatives provide smooth dimming on digital and rotary systems.
Download Specification
Full Specification
Downloads
Name
Genesis LED 4.5W Dimmable Filament Clear Candle - BC - 2700K
Commodity Code
8539520000
EAN
5013588609546
Volts (V)
220/240
Cap
B22
Life Hours
15,000
Beam Angle
360°
Energy Rating
F
CRI (Ra)
80
Switching Cycles
20,000
Frequency (Hz)
50/60
LED Drive Current
26mA
Energy Consumption (kWh/1000h)
5
Individual Product Weight (kg)
0.017
Height (mm)
91
Width (mm)
35
Diameter (mm)
35
Inner Box Weight (kg)
0.047
Inner Box Height (mm)
116
Inner Box Width (mm)
235
Inner Box Depth (mm)
97
Outer Box Weight (kg)
0.37
Outer Box Height (mm)
250
Outer Box Width (mm)
510
Outer Box Depth (mm)
250
Inner Box Qty
10
Outer Box Qty
100
Inner Box Volume
0.00264422
Outer Box Volume
0.031875
Lumens per Watt (lm/W)
104
Wattage (W)
4.5
Equivalent Wattage (W)
40
Colour Temperature (K)
2700
Single Box Weight (kg)
0.035
Single box Height (mm)
110
Single box Width (mm)
45
Single Box Depth (mm)
45
Single Box Volume
0.00022275
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EPREL Product Type
LIGHT_SOURCE_VERSION
EPREL - Registered As
Importer
UOM For Battery Weight
KG
Mains or Non-Mains
Mains
Connected Light Source
No
Colour Tunable Light Source
No
High Luminance Light Source
No
Anti-Glare Shield
No
Lumen output (lm)
470
Directional or Non-Directional
Non-directional
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Dimmable
Yes
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
Yes
Capsule
No
Decorative
Yes
Dura Batten
No
Dura V2 Batten
No
Filament
Yes
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
Yes
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
EDATA Product Family
Lamps
EDATA Product Range
Genesis
EDATA Quantity Interval
1
Minimum Order Quantity
1
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
2 Years
Linears
No
Skyline Target
No
Standard Deviation Colour Matching
6-step MacAdam ellipse
Depth (mm)
35
