Genesis Filament GLS Non-Dimmable

Genesis LED 7W Filament Clear GLS - BC - 2700K

Code
60958
Technical Specification
Volts (V)
220/240
Cap
B22
Energy Rating
E
Our LED filament lamps provide the elegance of incandescent lamps with the power of LED technology. The warm white colour temperature creates a welcoming atmosphere and our dimmable alternatives provide smooth dimming on digital and rotary systems.
Download Specification
Full Specification
Downloads
Name
Genesis LED 7W Filament Clear GLS - BC - 2700K
Commodity Code
8539520000
EAN
5013588609584
Volts (V)
220/240
Cap
B22
Life Hours
15,000
Beam Angle
360°
Energy Rating
E
CRI (Ra)
80
Switching Cycles
20,000
Frequency (Hz)
50/60
LED Drive Current
41mA
Energy Consumption (kWh/1000h)
7
Individual Product Weight (kg)
0.034
Height (mm)
106
Width (mm)
60
Diameter (mm)
60
Inner Box Weight (kg)
0.084
Inner Box Height (mm)
126
Inner Box Width (mm)
340
Inner Box Depth (mm)
139
Outer Box Weight (kg)
0.652
Outer Box Height (mm)
270
Outer Box Width (mm)
720
Outer Box Depth (mm)
355
Inner Box Qty
10
Outer Box Qty
100
Inner Box Volume
0.00595476
Outer Box Volume
0.069012
Lumens per Watt (lm/W)
115
Wattage (W)
7
Equivalent Wattage (W)
60
Colour Temperature (K)
2700
Minimum Order Quantity
1
Single Box Weight (kg)
0.06
Single box Height (mm)
120
Single box Width (mm)
66
Single Box Depth (mm)
66
Single Box Volume
0.00052272
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
EPREL Product Type
LIGHT_SOURCE_VERSION
EPREL - Registered As
Importer
UOM For Battery Weight
KG
Mains or Non-Mains
Mains
Connected Light Source
No
Colour Tunable Light Source
No
High Luminance Light Source
No
Anti-Glare Shield
No
Lumen output (lm)
806
Directional or Non-Directional
Non-directional
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
Yes
Dura Batten
No
Dura V2 Batten
No
Filament
Yes
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
Yes
GLS
Yes
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
EDATA Product Family
Lamps
EDATA Product Range
Genesis
EDATA Quantity Interval
1
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
2 Years
Linears
No
Skyline Target
No
Standard Deviation Colour Matching
6-step MacAdam ellipse
Depth (mm)
60
Catalogue Page

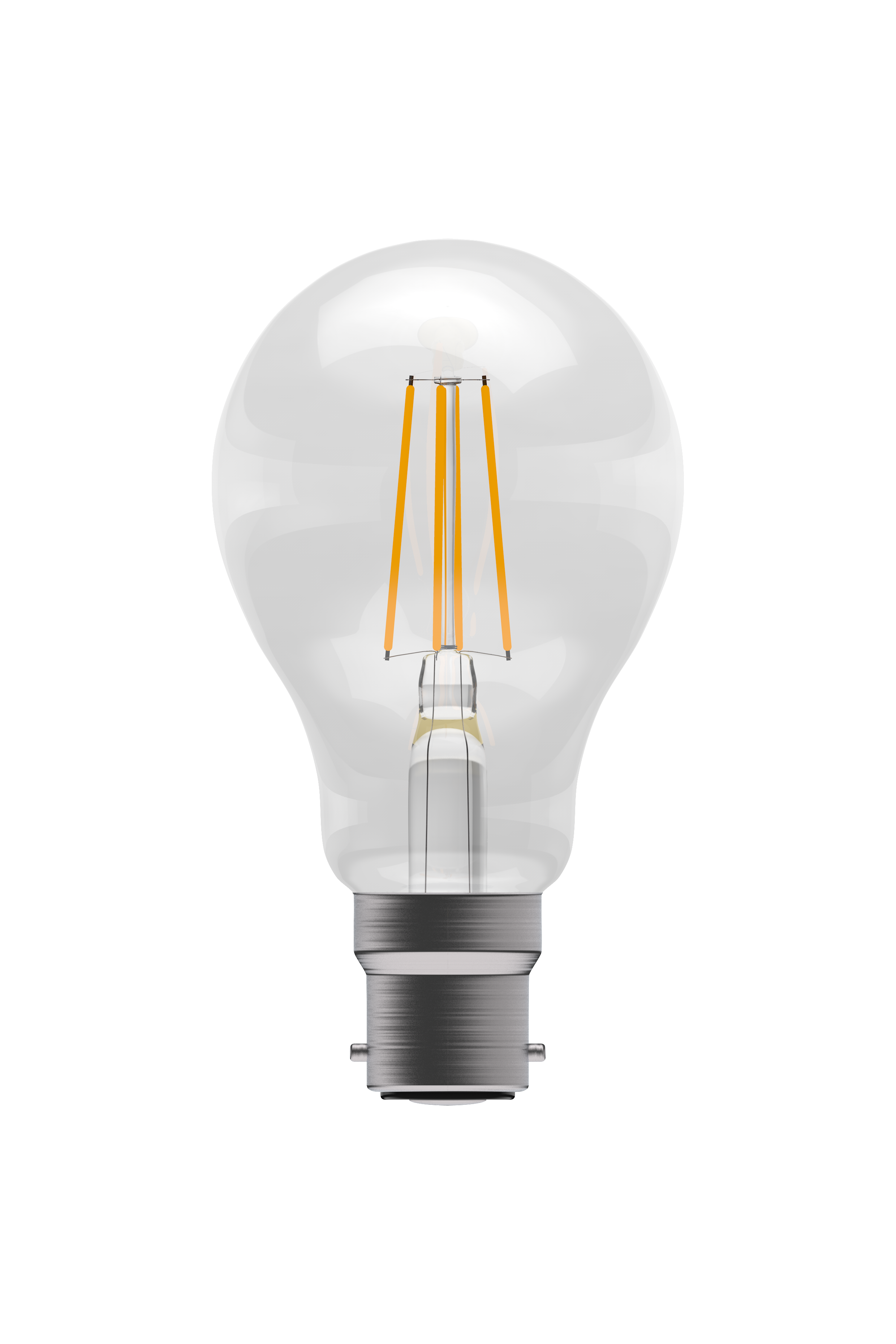

Product Image
