Genesis Filament Round Non-Dimmable

Genesis LED 4.5W Filament Clear Round - BC - 2700K

Code
60966
Technical Specification
Volts (V)
220/240
Cap
B22
Energy Rating
F
Our LED filament lamps provide the elegance of incandescent lamps with the power of LED technology. The warm white colour temperature creates a welcoming atmosphere and our dimmable alternatives provide smooth dimming on digital and rotary systems.
Download Specification
Full Specification
Downloads
Name
Genesis LED 4.5W Filament Clear Round - BC - 2700K
Volts (V)
220/240
Commodity Code
8539520000
EAN
5013588003023
Cap
B22
Life Hours
15,000
Beam Angle
360°
Energy Rating
F
CRI (Ra)
80
Switching Cycles
20,000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
5
LED Drive Current
37mA
Height (mm)
76
Width (mm)
45
Depth (mm)
45
Diameter (mm)
45
Power Factor
0.4
Operating Temperature
-20℃ to +40℃
Guarantee
2 Years
Lumens per Watt (lm/W)
104
Individual Product Weight (kg)
0.018
Inner Box Qty
10
Outer Box Qty
100
Inner Box Weight (kg)
0.345
Inner Box Height (mm)
101
Inner Box Width (mm)
260
Inner Box Depth (mm)
107
Inner Box Volume
0.00280982
Outer Box Height (mm)
220
Outer Box Width (mm)
560
Outer Box Depth (mm)
275
Outer Box Volume
0.03388
Outer Box Weight (kg)
3.85
Wattage (W)
4.5
Equivalent Wattage (W)
40
Colour Temperature (K)
2700
Minimum Order Quantity
1
Single Box Weight (kg)
0.0295
Single box Height (mm)
95
Single box Width (mm)
50
Single Box Depth (mm)
50
Single Box Volume
0.0002375
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
EPREL Product Type
LIGHT_SOURCE_VERSION
EPREL - Registered As
Importer
UOM For Battery Weight
KG
Mains or Non-Mains
Mains
Connected Light Source
No
Colour Tunable Light Source
No
High Luminance Light Source
No
Anti-Glare Shield
No
Lumen output (lm)
470
Directional or Non-Directional
Non-directional
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Catalogue Page

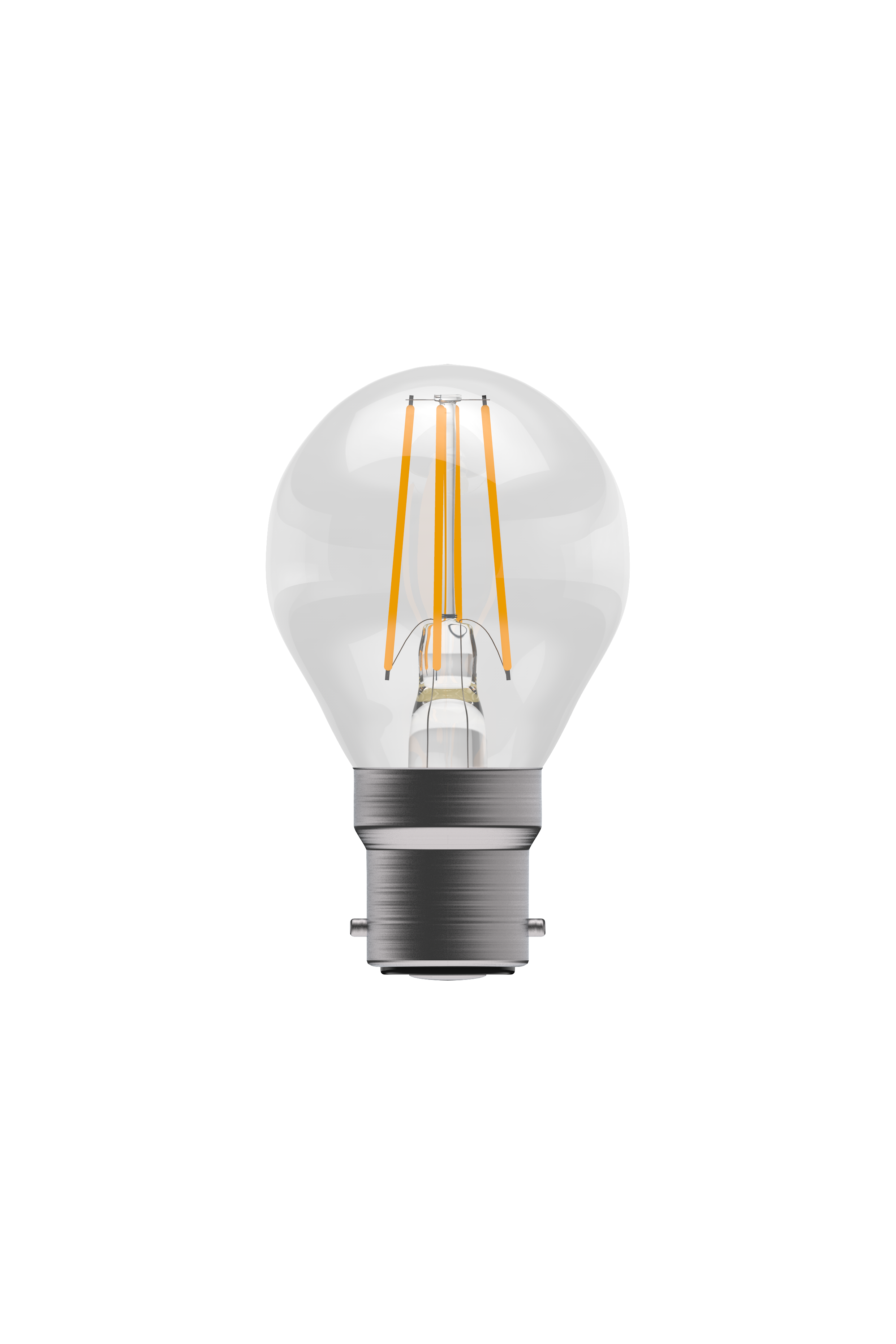

Product Image
