Genesis Filament Round Non-Dimmable

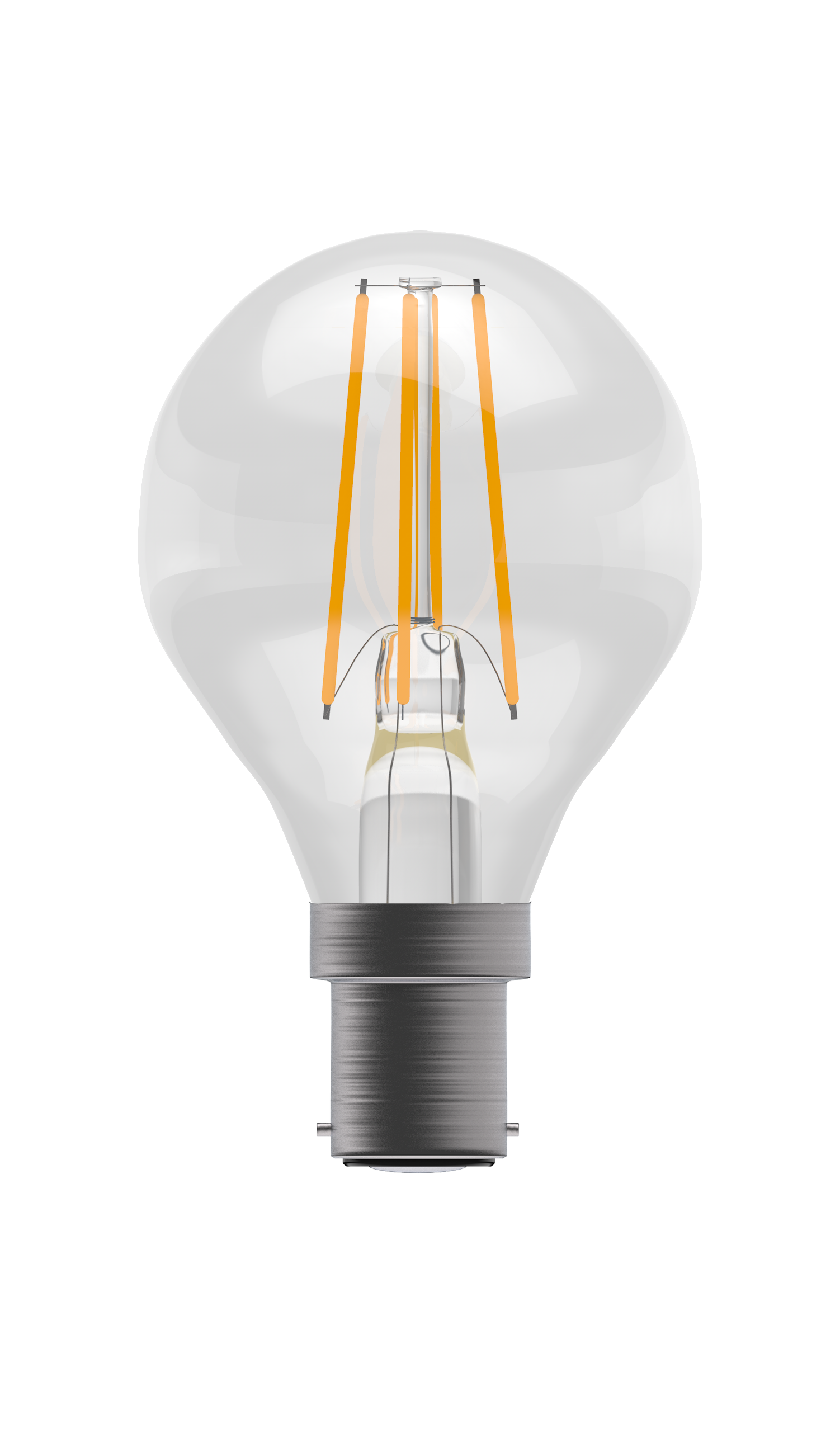

Genesis LED 4.5W Filament Clear Round - SBC - 2700K

Code
60968
Technical Specification
Volts (V)
220/240
Cap
B15
Energy Rating
F
Our LED filament lamps provide the elegance of incandescent lamps with the power of LED technology. The warm white colour temperature creates a welcoming atmosphere and our dimmable alternatives provide smooth dimming on digital and rotary systems.
Download Specification
Full Specification
Downloads
Name
Genesis LED 4.5W Filament Clear Round - SBC - 2700K
Volts (V)
220/240
Commodity Code
8539520000
EAN
5013588003047
Cap
B15
Life Hours
15,000
Beam Angle
360°
Energy Rating
F
CRI (Ra)
80
Switching Cycles
20,000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
5
LED Drive Current
37mA
Height (mm)
78
Width (mm)
45
Depth (mm)
45
Diameter (mm)
45
Power Factor
0.4
Operating Temperature
-20℃ to +40℃
Guarantee
2 Years
Lumens per Watt (lm/W)
104
Individual Product Weight (kg)
0.014
Inner Box Qty
10
Outer Box Qty
100
Inner Box Weight (kg)
0.305
Inner Box Height (mm)
101
Inner Box Width (mm)
260
Inner Box Depth (mm)
107
Inner Box Volume
0.00280982
Outer Box Height (mm)
220
Outer Box Width (mm)
560
Outer Box Depth (mm)
275
Outer Box Volume
0.03388
Outer Box Weight (kg)
3.45
Wattage (W)
4.5
Equivalent Wattage (W)
40
Colour Temperature (K)
2700
Minimum Order Quantity
1
Single Box Weight (kg)
0.0255
Single box Height (mm)
95
Single box Width (mm)
50
Single Box Depth (mm)
50
Single Box Volume
0.0002375
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
EPREL Product Type
LIGHT_SOURCE_VERSION
EPREL - Registered As
Importer
UOM For Battery Weight
KG
Mains or Non-Mains
Mains
Connected Light Source
No
Colour Tunable Light Source
No
High Luminance Light Source
No
Anti-Glare Shield
No
Lumen output (lm)
470
Directional or Non-Directional
Non-directional
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
Yes
Dura Batten
No
Dura V2 Batten
No
Filament
Yes
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
Yes
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
Yes
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
EDATA Product Family
Lamps
EDATA Product Range
Genesis
EDATA Quantity Interval
1
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
