LED 2D Lamps

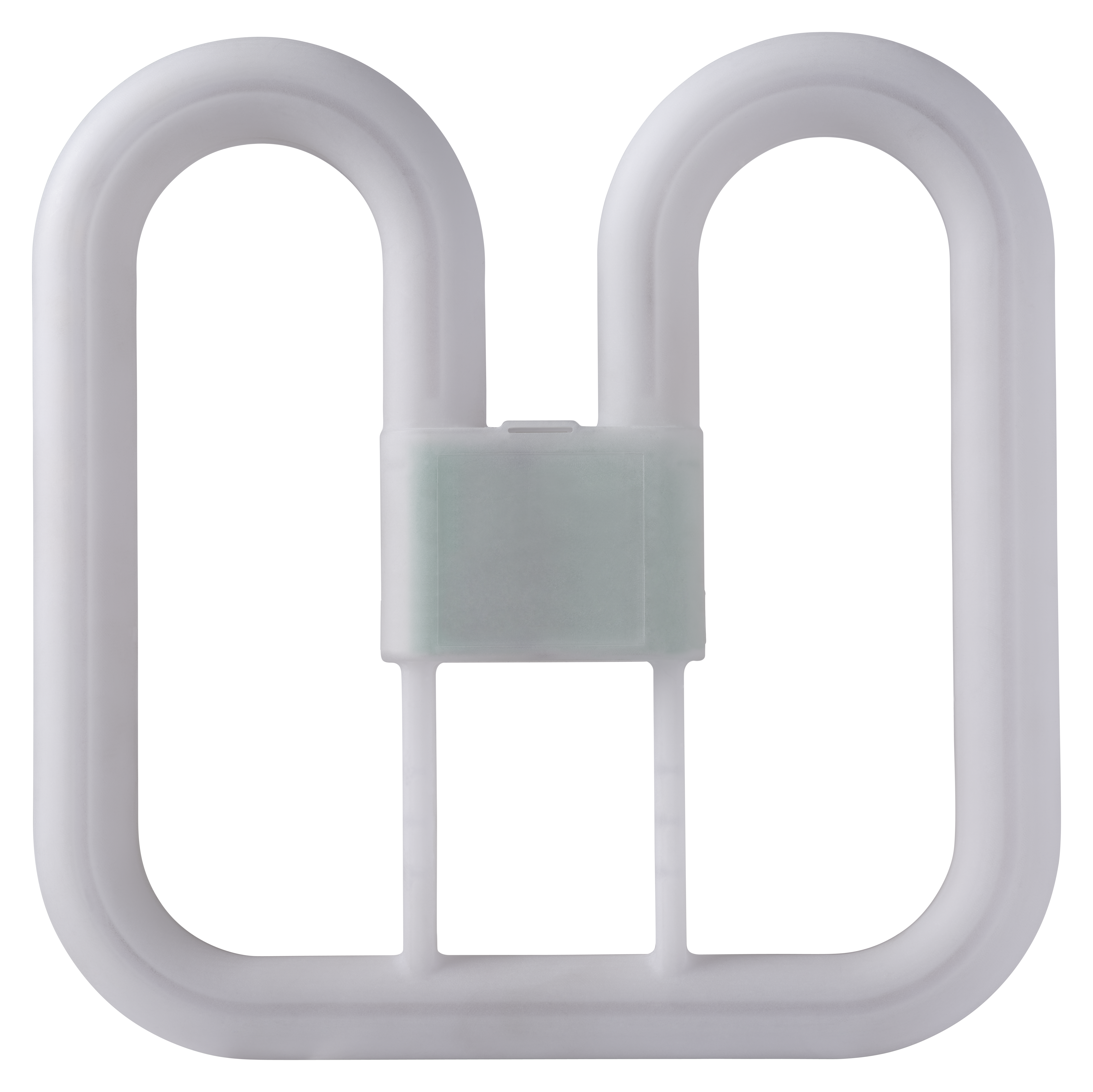

LED 18W 2D - 4 Pin - 3500K

Code
60468
Technical Specification
Volts (V)
240
Cap
GR10q
Energy Rating
E
Our LED Square Lamps give the user the familiarity of the renowned CFL Square Lamps combined with the energy saving benefits of LED lighting.
Download Specification
Full Specification
Downloads
Name
LED 18W 2D - 4 Pin - 3500K
Volts (V)
240
Commodity Code
8539520000
EAN
5013588604688
Cap
GR10q
Lumens per Watt (lm/W)
122
Life Hours
15000
Beam Angle
90°
Energy Rating
E
CRI (Ra)
80
Switching Cycles
15000
Frequency (Hz)
50
LED Drive Current
119mA
Energy Consumption (kWh/1000h)
18
Height (mm)
31
Width (mm)
200
Length (mm)
200
Individual Product Weight (kg)
0.2
Inner Box Weight (kg)
0.9
Inner Box Height (mm)
450
Inner Box Width (mm)
838
Inner Box Depth (mm)
160
Outer Box Weight (kg)
7.61
Outer Box Height (mm)
1690
Outer Box Width (mm)
460
Outer Box Depth (mm)
810
Inner Box Qty
4
Outer Box Qty
32
Outer Box Volume
0.629694
Inner Box Volume
0.060336
Guarantee
3 Years
Wattage (W)
18
Colour Temperature (K)
3500
Minimum Order Quantity
1
Single Box Weight (kg)
0.24
Single box Height (mm)
205
Single box Width (mm)
205
Single Box Depth (mm)
35
Single Box Volume
0.001470875
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
EPREL Product Type
LIGHT_SOURCE_VERSION
EPREL - Registered As
Importer
UOM For Battery Weight
KG
Mains or Non-Mains
Mains
Connected Light Source
No
Colour Tunable Light Source
No
High Luminance Light Source
No
Anti-Glare Shield
No
Lumen output (lm)
2200
Directional or Non-Directional
Directional
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
Catalogue Page

Product Image
