CCT & Wattage Switchable T8 Tubes

LED 12/22W CCT T8 5ft Tube

Code
60262
Technical Specification
Volts (V)
220/240
Watts (W)
12/22
Cap
G13
Colour Temp (K)
3000/4000/6000
Energy Rating
D
Lumens (lm)
1680-3100
Our LED T8 tubes are a cost-effective energy saving solution without the need to replace a complete fitting while reaping the energy saving benefits of LED.
Download Specification
Full Specification
Downloads
Name
LED 12/22W CCT T8 5ft Tube
Commodity Code
8539520000
EAN
5063695000262
Volts (V)
220/240
Watts (W)
12/22
Cap
G13
Colour Temp (K)
3000/4000/6000
Life Hours
50000
Energy Rating
D
Lumens (lm)
1680-3100
Equivalent Watts (W)
58
Lumens per Watt (lm/W)
141
Beam Angle
180°
CRI (Ra)
80
Guarantee
5 Years
Switching Cycles
25000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
22
IP Rating
IP20
Height (mm)
28
Width (mm)
28
Length (mm)
1514
Depth (mm)
28
Surge Protection
750V
Individual Product Weight (kg)
0.23
Single Carton Weight (KG)
0.305
Single Carton Height (mm)
29
Single Carton Width (mm)
29
Single Carton Depth (mm)
1605
Individual Volume
0.001349805
Outer Box Weight (kg)
3.579
Outer Box Height (mm)
1615
Outer Box Width (mm)
160
Outer Box Depth (mm)
95
Outer Box Qty
10
Outer Box Volume
0.024548
Catalogue Page

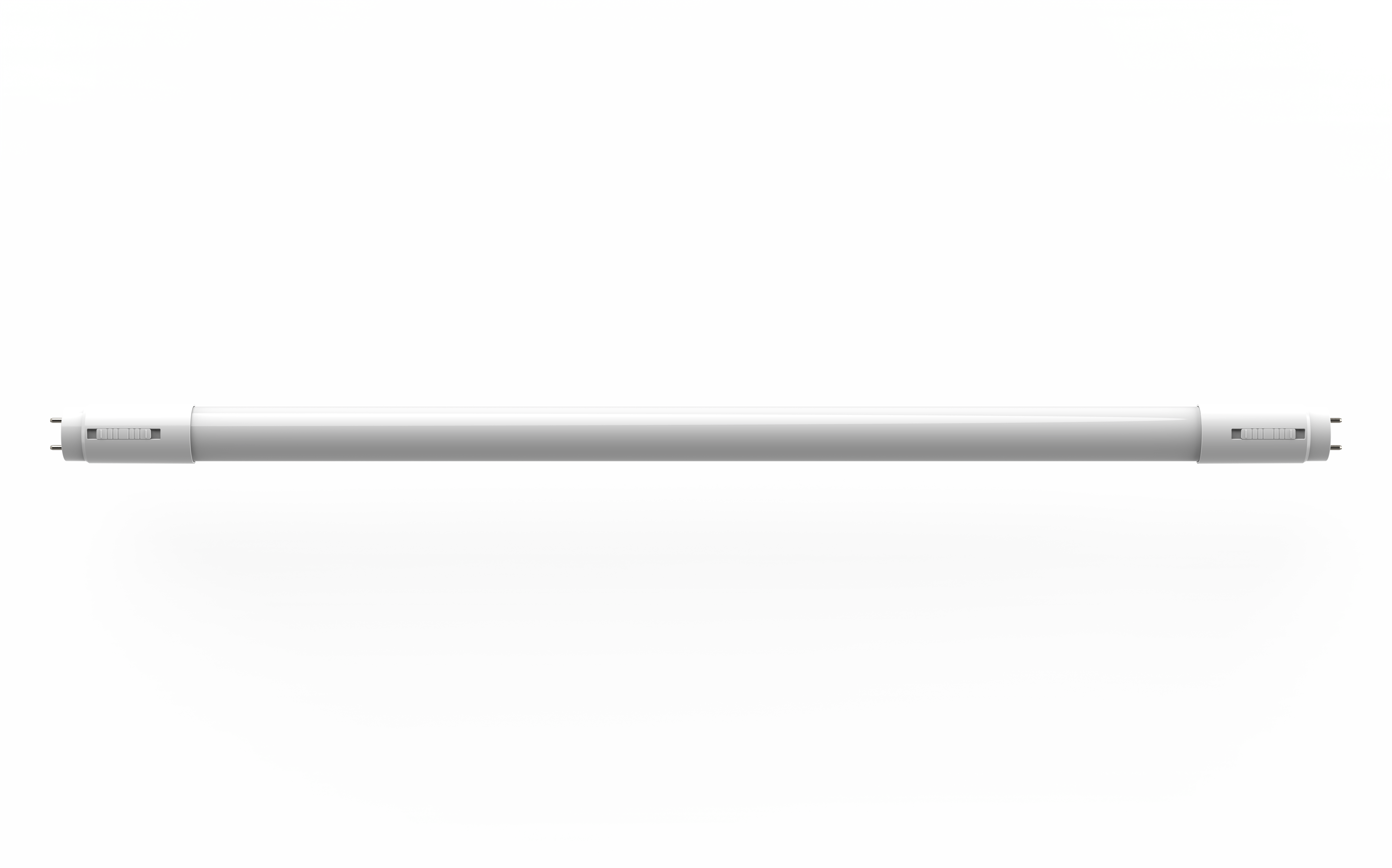

Product Image
