PIR Sensors

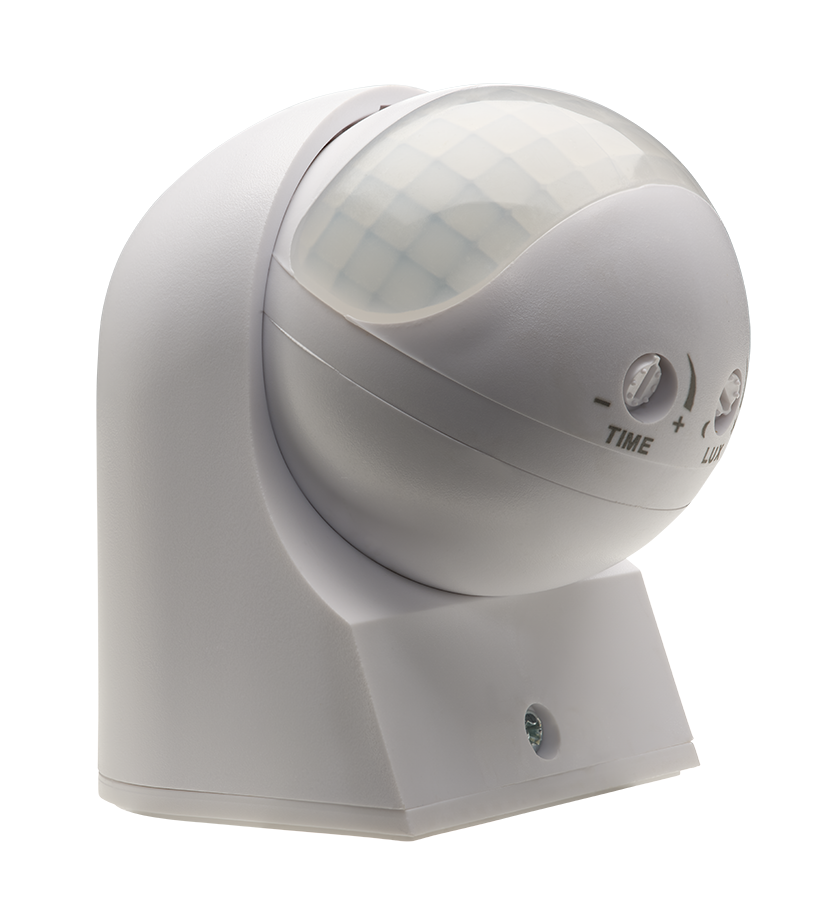

Foxbridge IP44 Wall Mount PIR Sensor - White

Code
70401
Technical Specification
Volts (V)
200/220
Our range of Foxbridge Sensors celebrate BELL's history and show our commitment to providing solutions in the LED market.
Download Specification
Full Specification
Downloads
Name
Foxbridge IP44 Wall Mount PIR Sensor - White
Commodity Code
8504318050
EAN
5013588002040
Electric Class
Class II
IP Rating
IP44
Height (mm)
70
Width (mm)
55
Length (mm)
77
Individual Product Weight (kg)
0.086
Outer Box Weight (kg)
6.3
Outer Box Height (mm)
430
Outer Box Width (mm)
340
Outer Box Depth (mm)
170
Outer Box Qty
50
Outer Box Volume
0.024854
Guarantee
5 Years
Volts (V)
200/220
Frequency (Hz)
50/60
Primary Material
Polycarbonate
Sensor Hold Time
10s to 7min - Dial
Operating Temperature
-20°C to +40°C
Sensor Detection Angle
180°
Single Box Weight (kg)
0.115
Single box Height (mm)
79
Single box Width (mm)
60
Single Box Depth (mm)
75
Single Box Volume
0.0003555
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
UOM For Battery Weight
KG
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Catalogue Page

Instructions

Product Image
