PIR Sensors

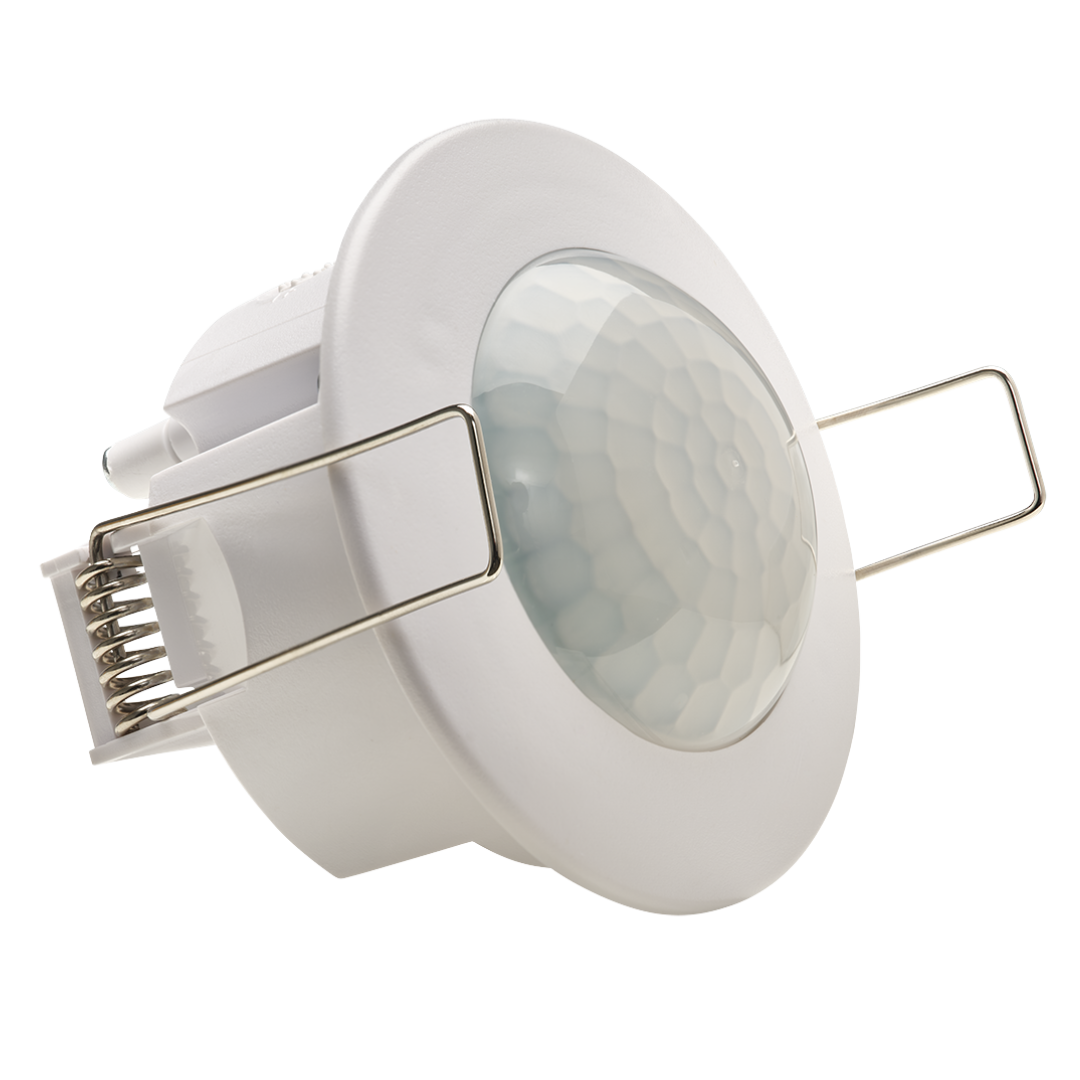

Foxbridge IP20 Flush Mount PIR Sensor

Code
70407
Technical Specification
Volts (V)
200/220
Our range of Foxbridge Sensors celebrate BELL's history and show our commitment to providing solutions in the LED market.
Download Specification
Full Specification
Downloads
Name
Foxbridge IP20 Flush Mount PIR Sensor
Commodity Code
8504318050
EAN
5013588002101
Electric Class
Class II
IP Rating
IP20
Height (mm)
61
Width (mm)
62
Length (mm)
76
Individual Product Weight (kg)
0.069
Outer Box Weight (kg)
11
Outer Box Height (mm)
460
Outer Box Width (mm)
435
Outer Box Depth (mm)
305
Outer Box Qty
100
Outer Box Volume
0.0610305
Guarantee
5 Years
Volts (V)
200/220
Frequency (Hz)
50/60
Primary Material
Polycarbonate
Sensor Hold Time
10s to 7min - Dial
Operating Temperature
-20°C to +40°C
Sensor Detection Angle
360°
Single Box Weight (kg)
0.094
Single box Height (mm)
83
Single box Width (mm)
83
Single Box Depth (mm)
70
Single Box Volume
0.00048223
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
UOM For Battery Weight
KG
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
