Fitting
Mentor V2 25/34/40/48W LED 5ft CCT Batten
Code:
10286V2
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
The Mentor Wattage Switchable LED Integrated CCT Batten is colour switchable, with a choice of 3000K, 4000K, or 6000K, depending on the application.
Specification
| Commodity Code | 9405423990 |
| EAN | 5013588000671 |
| Country Of Origin | CN |
| UNSPSC Code | 39111544 |
| Product Category | LED Luminaires - Not Plastic |
| Product Application | Schools / Colleges / Offices |
| Warranty | 7 Years (2 Years On Site) |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| Beam Angle | 115° |
| CRI (Ra) | 85 |
| Switching Cycles | 25000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 1080mA |
| Energy Consumption (kWh/1000h) | 48 |
| IP Rating | IP40 |

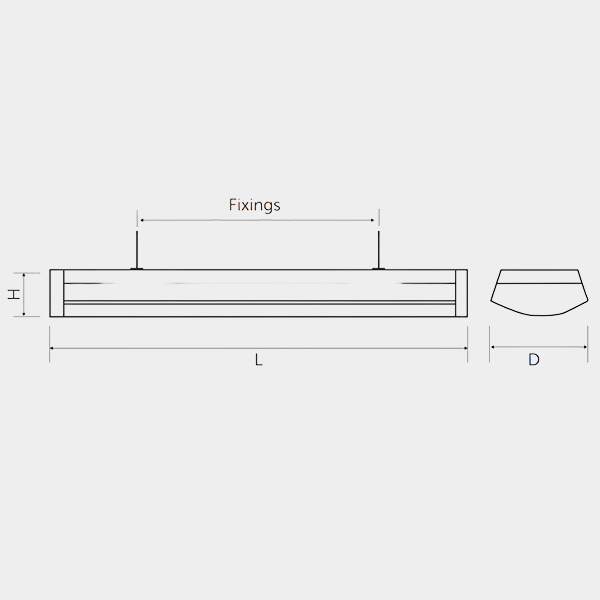

| Height (mm) | 97 |
| Length (mm) | 1505 |
| Individual Product Weight (kg) | 4.18 |
| Lumens per Watt (lm/W) | 131-140 |
| Depth (mm) | 200 |
| Wattage (W) | 25/34/40/48 |
| Colour Temperature (K) | 3000/4000/6000 |
| Candelas | 1099-1982 |
| IK Rating | IK08 |
| Lumen output (lm) | 25W = 3268 (3000K) / 3473 (4000K) / 3507 (6000K) - 34W = 4444 (3000K) / 4723 (4000K) / 4769 (6000K) - 40W = 5042 (3000K) / 5359 (4000K) / 5401 (6000K) - 48W = 6051 (3000K) / 6431 (4000K) / 6481 (6000K) |
| Operating Temperature | -20℃ - +35℃ |
| Lumen Maintenance Ratio | L80 B10 |
| Height (mm) | 97 |
| Length (mm) | 1505 |
| UNSPSC Code | 39111544 |
| Individual Product Weight (kg) | 4.18 |
| Outer Box Weight (kg) | 9.26 |
| Outer Box Height (mm) | 230 |
| Outer Box Width (mm) | 220 |
| Outer Box Depth (mm) | 1525 |
| Outer Box Qty | 2 |
| Outer Box Volume | 0.077165 |
| Depth (mm) | 200 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 4.58 |
| Single box Height (mm) | 105 |
| Single box Width (mm) | 205 |
| Single Box Depth (mm) | 1510 |
| Single Box Volume | 0.03250275 |
| Outer Box Barcode | 10286V2000002 |
