Aqua Connect
Aqua Connect LED 4CCT Wattage Switchable Bulkhead
Code:
70200
The Aqua Connect is a convenient solution with multiple plug-in accessories which can be easily installed.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| EAN | 5013588702001 |
| Country Of Origin | CN |
| Commodity Code | 9405423100 |
| Product Category | LED Luminaires - Plastic |
| Product Application | LED Bulkhead |
| UNSPSC Code | 39111612 |
| Warranty | 7 Years (2 Years On Site) |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| Beam Angle | 120º |
| CRI (Ra) | 85 |
| Switching Cycles | 50000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 112mA |
| Energy Consumption (kWh/1000h) | 16 |
| Lumens per Watt (lm/W) | 133-142 |
| IP Rating | IP65 |
| Operating Temperature | -20°C to +35°C |
| Wattage (W) | 9/12/16 |
| Equivalent Wattage (W) | 16/28/38 |
| Lumen Maintenance Ratio | L80 B10 |
| Colour Temperature (K) | 3000/4000/5000/6000 |
| IK Rating | IK10 |
| Lumen output (lm) | 9W = 1213 (3000K) / 1243 (4000K) / 1250 (5000K) / 1247 (6000K) - 12W = 1644 (3000K) / 1692 (4000K) / 1702 (5000K) / 1695 (6000K) - 16W = 2130 (3000K) / 2258 (4000K) / 2267 (5000K) / 2243 (6000K) |

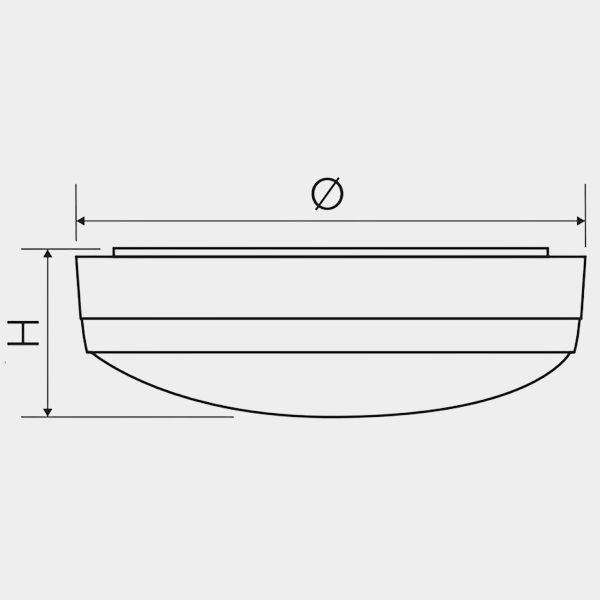

| Height (mm) | 75 |
| Diameter (mm) | 325 |
| Individual Product Weight (kg) | 0.8 |
| Outer Box Height (mm) | 425 |
| Outer Box Width (mm) | 670 |
| Outer Box Depth (mm) | 340 |
| Outer Box Qty | 10 |
| Outer Box Volume | 0.096815 |
| Width (mm) | 325 |
| UNSPSC Code | 39111612 |
| Outer Box Weight (kg) | 11 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 1 |
| Single box Height (mm) | 330 |
| Single box Width (mm) | 330 |
| Single Box Depth (mm) | 80 |
| Single Box Volume | 0.008712 |
| Outer Box Barcode | 7020000000010 |
