Fitting

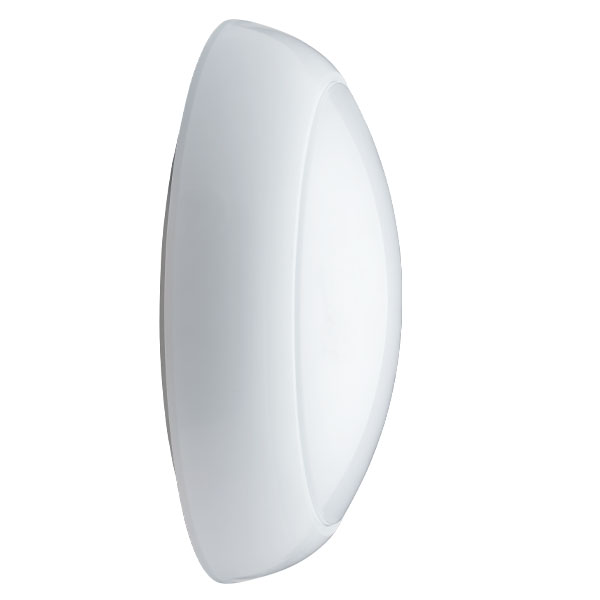

Aqua1 9/14/18W LED CCT White Bulkhead with Sensor Dim
Code:
11604
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
This cost-effective, colour switchable bulkhead is IP65 as standard, with the benefits of a high transmission frosted diffuser and rear, side & BESA Box cable entry. It is an ideal replacement for 28W 2D fittings.
Specification
| Commodity Code | 9405423100 |
| EAN | 5013588116044 |
| Country Of Origin | CN |
| UNSPSC Code | 39111612 |
| Product Category | LED Luminaires - Plastic |
| Product Application | Multi-Application IP65 Bulkhead |
| Warranty | 7 Years (2 Years On Site) |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| CRI (Ra) | 85 |
| Switching Cycles | 30000 |
| Frequency (Hz) | 50 |
| Energy Consumption (kWh/1000h) | 18 |
| IP Rating | IP65 |
| Diameter (mm) | 335 |
| Individual Product Weight (kg) | 0.844 |
| Beam Angle | 116° |
| Depth (mm) | 110 |
| Lumens per Watt (lm/W) | 134 |
| LED Drive Current | 130mA |
| Wattage (W) | 9/14/18 |
| Equivalent Wattage (W) | 16-38 |
| Colour Temperature (K) | 3000/4000/6000 |
| Candelas | 372-699 |
| IK Rating | IK10 |
| Lumen output (lm) | 9W = 1205 (3000K) / 1259 (4000K) / 1264 (6000K) - 14W = 1751 (3000K) / 1911 (4000K) / 1868 (6000K) - 18W = 2148 (3000K) / 2408 (4000K) / 2202 (6000K) |
| Lumen Maintenance Ratio | L80 B10 |
| Diameter (mm) | 335 |
| UNSPSC Code | 39111612 |
| Outer Box Height (mm) | 700 |
| Outer Box Width (mm) | 460 |
| Outer Box Depth (mm) | 360 |
| Outer Box Qty | 8 |
| Individual Product Weight (kg) | 0.844 |
| Outer Box Weight (kg) | 10.8 |
| Outer Box Volume | 0.11592 |
| Depth (mm) | 110 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 1.115 |
| Single box Height (mm) | 113 |
| Single box Width (mm) | 340 |
| Single Box Depth (mm) | 343 |
| Single Box Volume | 0.01318 |
| Outer Box Barcode | 1160400000008 |
