Fitting

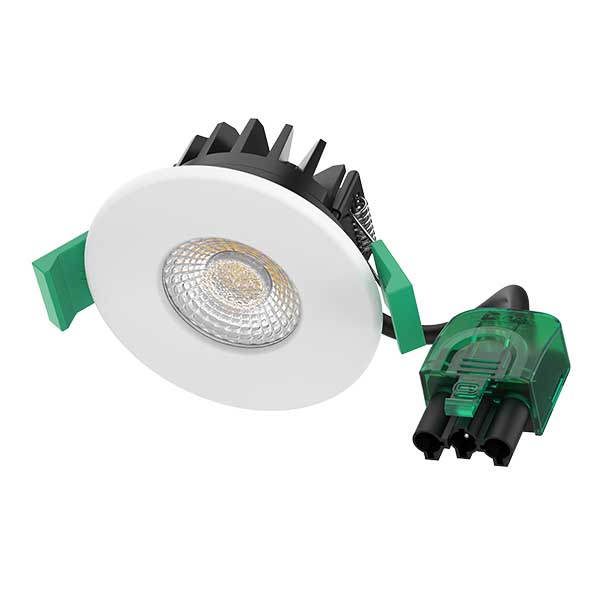

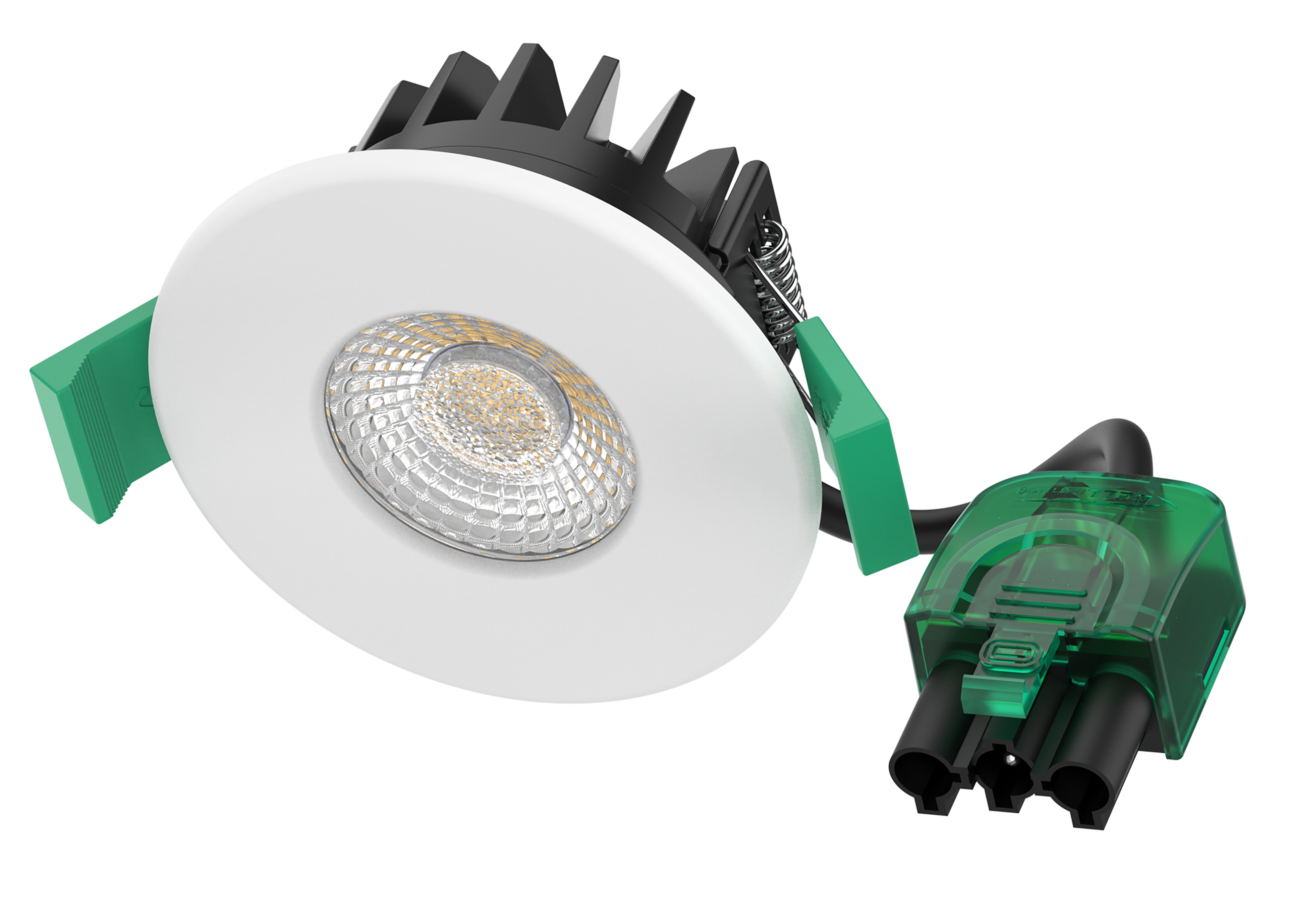

Firestay Primo V2 5/7/9W LED CCT Wattage Switchable LED Downlight
Code:
11390V2
Please log in to see pricing
To view product pricing and place orders, please log in to your account.
The Firestay Primo LED CCT is a High Output Downlight ideal for high ceilings or any project requiring high intensity light.
Specification
| Product Category | LED Luminaires - Not Plastic |
| Commodity Code | 9405423990 |
| Country Of Origin | CN |
| Product Application | LED Downlights |
| EAN | 5013588002842 |
| UNSPSC Code | 39111515 |
| Warranty | 7 Years |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| Beam Angle | 60° |
| CRI (Ra) | 85 |
| Switching Cycles | 100000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 15-29mA |
| Energy Consumption (kWh/1000h) | 9 |
| IP Rating | IP65 |
| Cut out (mm) | 68-70 |
| Height (mm) | 47 |
| Width (mm) | 90 |
| Depth (mm) | 47 |
| Diameter (mm) | 90 |
| Lumens per Watt (lm/W) | 131-152 |
| Operating Temperature | -20°C - +35°C |
| Individual Product Weight (kg) | 0.305 |
| Wattage (W) | 5/7/9 |
| Colour Temperature (K) | 2700/3000/4000/6000 |
| Candelas | 500-900 |
| IK Rating | IK07 |
| Lumen output (lm) | 5W = 690 (2700K) / 710 (3000K) / 760 (4000K) / 740 (6000K) - 7W = 938 (2700K) / 966 (3000K) / 1064 (4000K) / 1022 (6000K) - 9W = 1179 (2700K) / 1215 (3000K) / 1332 (4000K) / 1260 (6000K) |
| Lumen Maintenance Ratio | L80 B10 |
| Height (mm) | 47 |
| Width (mm) | 90 |
| Depth (mm) | 47 |
| Diameter (mm) | 90 |
| UNSPSC Code | 39111515 |
| Individual Product Weight (kg) | 0.305 |
| Inner Box Weight (kg) | 4 |
| Inner Box Height (mm) | 331 |
| Inner Box Width (mm) | 230 |
| Inner Box Depth (mm) | 129 |
| Inner Box Qty | 10 |
| Outer Box Qty | 20 |
| Outer Box Weight (kg) | 8.5 |
| Outer Box Height (mm) | 337 |
| Outer Box Width (mm) | 236 |
| Outer Box Depth (mm) | 280 |
| Inner Box Volume | 0.00982077 |
| Outer Box Volume | 0.02226896 |
| Single Box Weight (kg) | 0.35 |
| Single box Height (mm) | 63 |
| Single box Width (mm) | 110 |
| Single Box Depth (mm) | 114 |
| Single Box Volume | 0.00080256 |
| Minimum Order Quantity | 1 |
| Suitable For Zones | Zone 1 |
