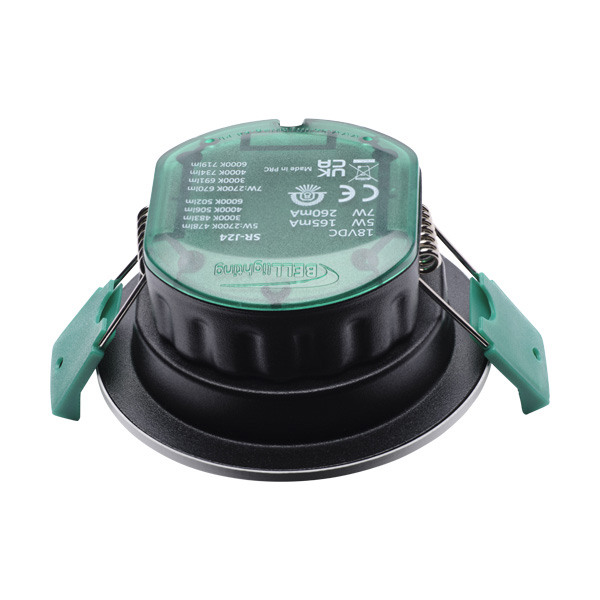

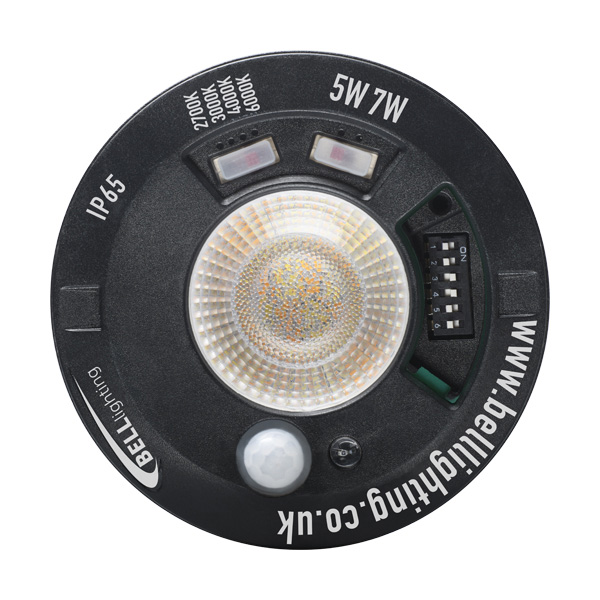

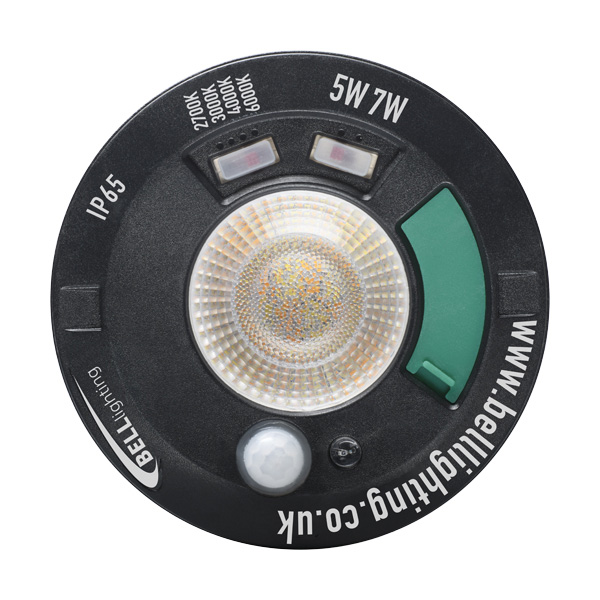

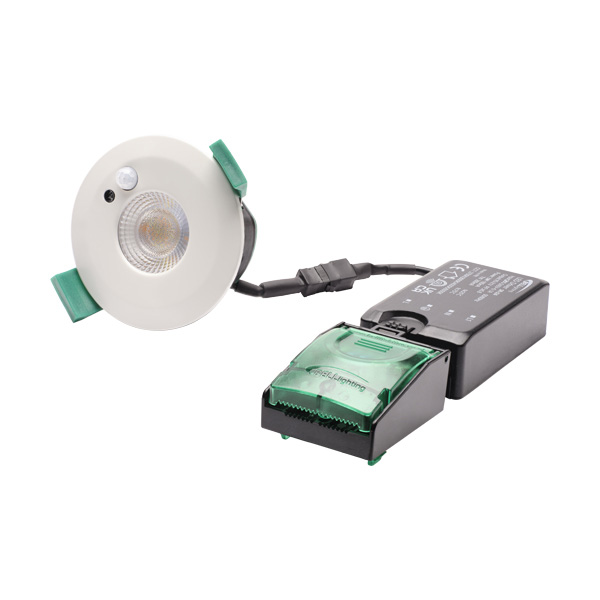

Firestay 5/7W LED 4CCT Downlight with PIR Sensor - P&P, 60° Beam, White Bezel (4 Pole Lever Plug)
Code:
08188
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Our flagship downlight has received a major facelift. The Firestay CCT now includes a 4-way colour switch and 2-way wattage switch as standard.
Specification
| Commodity Code | 9405423990 |
| EAN | 5013588002408 |
| Country Of Origin | CN |
| UNSPSC Code | 39111515 |
| Product Category | LED Luminaires - Not Plastic |
| Product Application | LED Downlights |
| Warranty | 10 Years |
| Volts (V) | 220/240 |
| Life Hours | 70000 |
| Beam Angle | 60° |
| CRI (Ra) | 85 |
| Switching Cycles | 100000 |
| Frequency (Hz) | 50/60 |
| Energy Consumption (kWh/1000h) | 7 |
| IP Rating | IP65 |
| Height (mm) | 41 |
| Width (mm) | 82 |
| Diameter (mm) | 82 |
| Individual Product Weight (kg) | 0.275 |
| Lumens per Watt (lm/W) | 137-159 |
| Wattage (W) | 5/7 |
| Colour Temperature (K) | 2700/3000/4000/6000 |
| Lumen output (lm) | 5W = 684 (2700K) / 712 (3000K) / 793 (4000K) / 746 (6000K) - 7W = 1048 (2700K) / 1115 (3000K) / 1010 (4000K) / 970 (6000K) |
| IK Rating | IK07 |
| Lumen Maintenance Ratio | L80 B10 |
| Operating Temperature | -20°C - +35°C |
| UNSPSC Code | 39111515 |
| Height (mm) | 41 |
| Width (mm) | 82 |
| Diameter (mm) | 82 |
| Individual Product Weight (kg) | 0.275 |
| Inner Box Weight (kg) | 3.6 |
| Inner Box Height (mm) | 530 |
| Inner Box Width (mm) | 250 |
| Inner Box Depth (mm) | 85 |
| Outer Box Weight (kg) | 7.36 |
| Outer Box Height (mm) | 550 |
| Outer Box Width (mm) | 270 |
| Outer Box Depth (mm) | 200 |
| Inner Box Qty | 10 |
| Outer Box Qty | 20 |
| Outer Box Volume | 0.0297 |
| Inner Box Volume | 0.0112625 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 0.318 |
| Single box Height (mm) | 120 |
| Single box Width (mm) | 103 |
| Single Box Depth (mm) | 75 |
| Single Box Volume | 0.000927 |
| Inner Box Barcode | 0818800000010 |
| Outer Box Barcode | 0818800000020 |
| Suitable For Zones | Zone 1 |
