Fitting
Spectrum 3W LED Self-Test Emergency Open Area/Corridor Downlight - Non-Maintained - Select Self-Test or Manual Emergency Mode
Code:
09075V2
Please log in to see pricing
To view product pricing and place orders, please log in to your account.

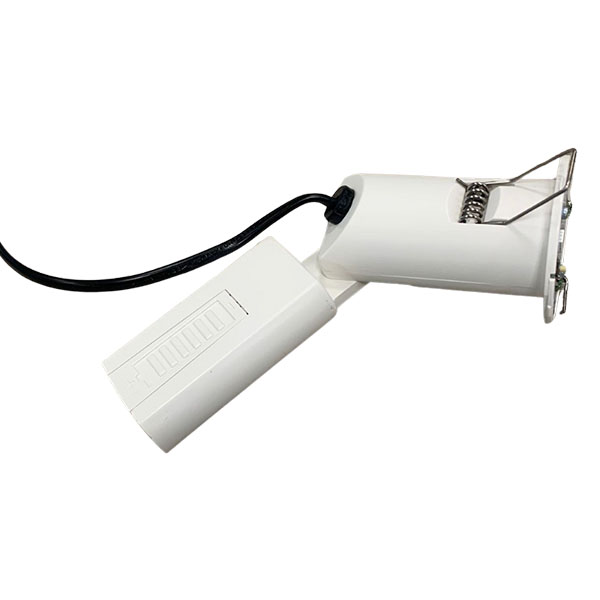

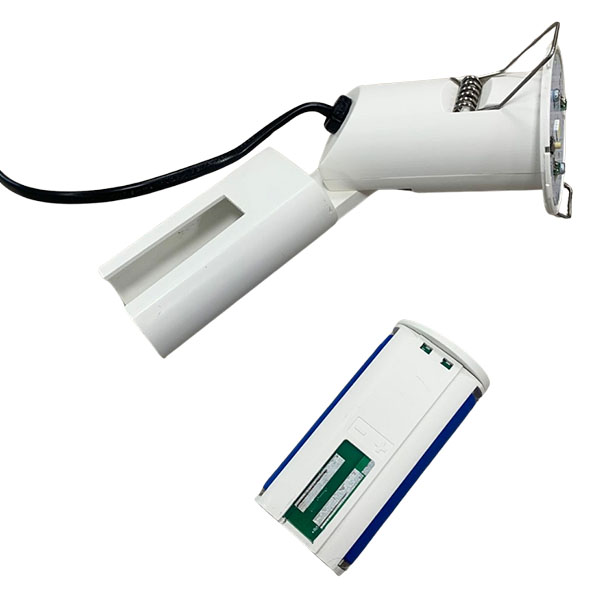

The 3W Spectrum Auto Self Test Downlights have a dual colour charge indicator and come complete with a sheathed battery pack. This IP20 rated fixture includes both Open Area and Corridor lenses which are easily interchangeable to suit the application.
Specification
| Commodity Code | 8513100000 |
| Country Of Origin | CN |
| EAN | 5013588900049 |
| Product Application | Open Area / Corridor Emergency Lighting |
| Product Category | Emergency Lighting / Luminaire with Battery |
| UNSPSC Code | 39111706 |
| Warranty | 5 Years |
| Individual Product Weight (kg) | 0.21 |
| Volts (V) | 220/240 |
| Life Hours | 30000 |
| Frequency (Hz) | 50/60 |
| Energy Consumption (kWh/1000h) | 3 |
| IP Rating | IP20 |
| Lumens per Watt (lm/W) | 63 (Corridor) / 85 (Open Area) |
| Depth (mm) | 81-175 |
| Height (mm) | 130-175 |
| Width (mm) | 61 |
| Operating Temperature | 0°C - +35°C |
| LED Drive Current | 320mA |
| Diameter (mm) | 61 |
| CRI (Ra) | 70 |
| Switching Cycles | 30000 |
| Wattage (W) | 3 |
| Colour Temperature (K) | 6000 |
| Lumen output (lm) | 189 (Corridor) / 256 (Open Area) |
| Cut out (mm) | 55 |
| Individual Product Weight (kg) | 0.21 |
| Outer Box Weight (kg) | 11.3 |
| Outer Box Height (mm) | 520 |
| Outer Box Width (mm) | 310 |
| Outer Box Depth (mm) | 380 |
| Outer Box Qty | 40 |
| Outer Box Volume | 0.06126 |
| Depth (mm) | 81-175 |
| Height (mm) | 130-175 |
| Width (mm) | 61 |
| Diameter (mm) | 61 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 0.26 |
| Single box Height (mm) | 90 |
| Single box Width (mm) | 145 |
| Single Box Depth (mm) | 100 |
| Single Box Volume | 0.00131 |
| Outer Box Barcode | 09075V2000040 |
| UNSPSC Code | 39111706 |
