Fitting

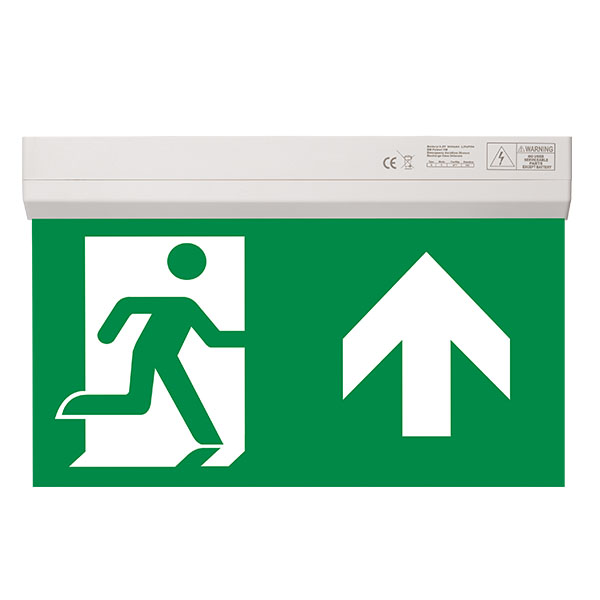

Spectrum 2.5W LED 6-in-1 Emergency Exit Blade Including Up Legend
Code:
09066
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
The Spectrum 6 in 1 Exit Blade is a product unique to BELL. This product has the ability to be displayed in 6 different ways, so therefore is one of the most cost-effective, complete products on the market.
Specification
| Commodity Code | 8513100000 |
| EAN | 5013588090665 |
| Country Of Origin | CN |
| Product Category | Emergency Lighting / Luminaire with Battery |
| Product Application | Exit Lighting |
| UNSPSC Code | 39111544 |
| Warranty | 5 Years |
| Volts (V) | 220/240 |
| Life Hours | 30000 |
| CRI (Ra) | 70 |
| Switching Cycles | 15000 |
| Energy Consumption (kWh/1000h) | 3 |
| IP Rating | IP20 |

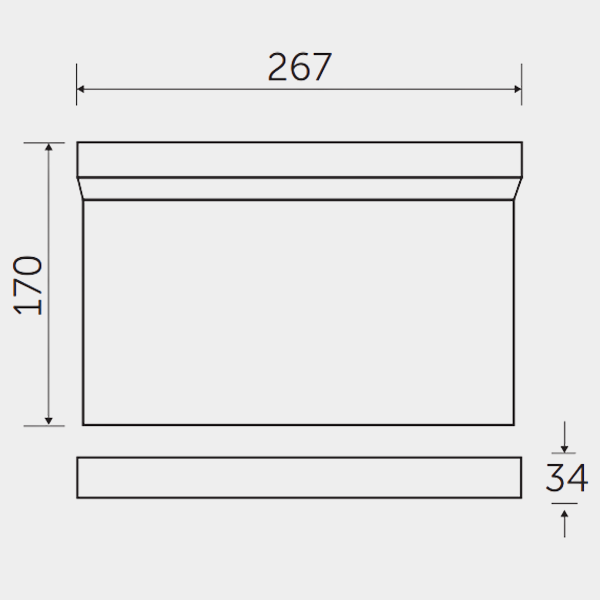

| Height (mm) | 170 |
| Width (mm) | 267 |
| Depth (mm) | 34 |
| Individual Product Weight (kg) | 0.52 |
| Frequency (Hz) | 50/60 |
| Operating Temperature | 0°C - +35°C |
| Wattage (W) | 2.5 |
| Colour Temperature (K) | 6500 |
| Outer Box Qty | 20 |
| Height (mm) | 170 |
| Width (mm) | 267 |
| Depth (mm) | 34 |
| Individual Product Weight (kg) | 0.52 |
| Outer Box Weight (kg) | 10.1 |
| Outer Box Height (mm) | 485 |
| Outer Box Width (mm) | 370 |
| Outer Box Depth (mm) | 345 |
| Outer Box Volume | 0.06191 |
| Single Box Weight (kg) | 0.63 |
| Single box Height (mm) | 62 |
| Single box Width (mm) | 340 |
| Single Box Depth (mm) | 154 |
| Single Box Volume | 0.00325 |
| Outer Box Barcode | 0906600000020 |
| UNSPSC Code | 39111544 |
| Minimum Order Quantity | 1 |
