Spectrum High Power Bulkhead

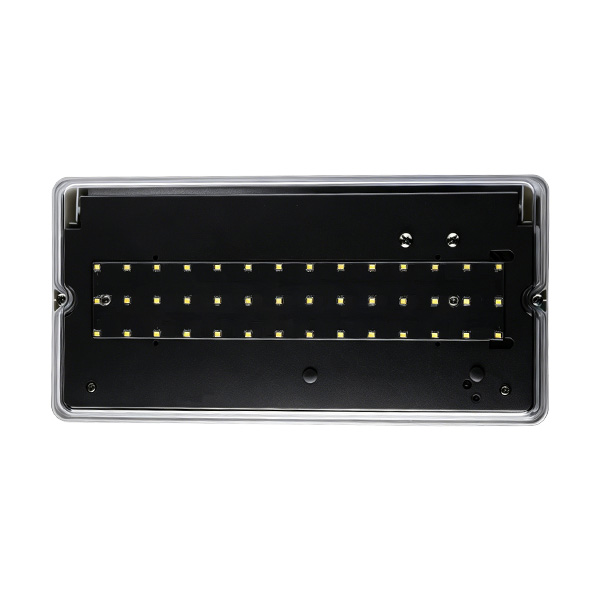

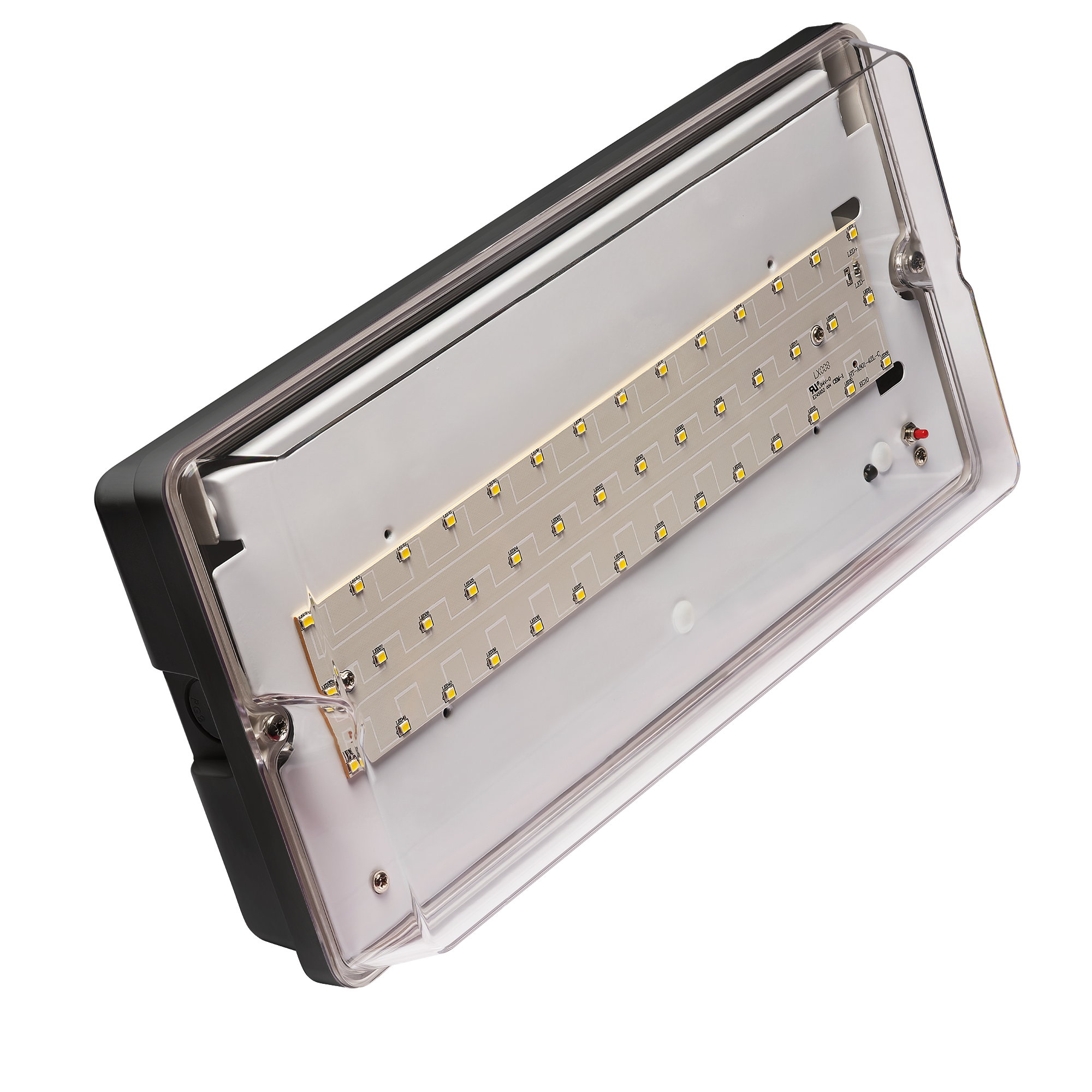

Spectrum 7W High Power Emergency Bulkhead - Self-Test On/Off Switch - Black

Code: 09101

To view product pricing and place orders, please log in to your account.

To view product pricing and place orders, please log in to your account.

The Spectrum LED High Power Emergency Bulkhead is designed specifically for areas that require a substantial light output.

Specification

Product Category Emergency Lighting / Luminaire with Battery
Product Application Emergency Lighting
Warranty 5 Years
Country Of Origin CN
Commodity Code 8513100000
EAN 5063695048615
UNSPSC Code 39111709
Life Hours 50000
Volts (V) 220/240
Frequency (Hz) 50/60
Wattage (W) 7
Equivalent Wattage (W) 12
Energy Consumption (kWh/1000h) 7
LED Drive Current 45mA
Lumen output (lm) 1094
Lumens per Watt (lm/W) 156
Colour Temperature (K) 6500
Candelas 340
CRI (Ra) 80
Beam Angle 140°
Switching Cycles 15000
IK Rating IK07
IP Rating IP65
Operating Temperature 0°C - +35°C
Height (mm) 168
Width (mm) 338
Depth (mm) 76
UNSPSC Code 39111709
Individual Product Weight (kg) 1.2
Minimum Order Quantity 1
Single Box Weight (kg) 1.35
Single box Height (mm) 177
Single box Width (mm) 84
Single Box Depth (mm) 347
Single Box Volume 0.00516
Outer Box Qty 5
Outer Box Weight (kg) 8
Outer Box Height (mm) 445
Outer Box Width (mm) 365
Outer Box Depth (mm) 195
Outer Box Volume 0.03167
