Fitting

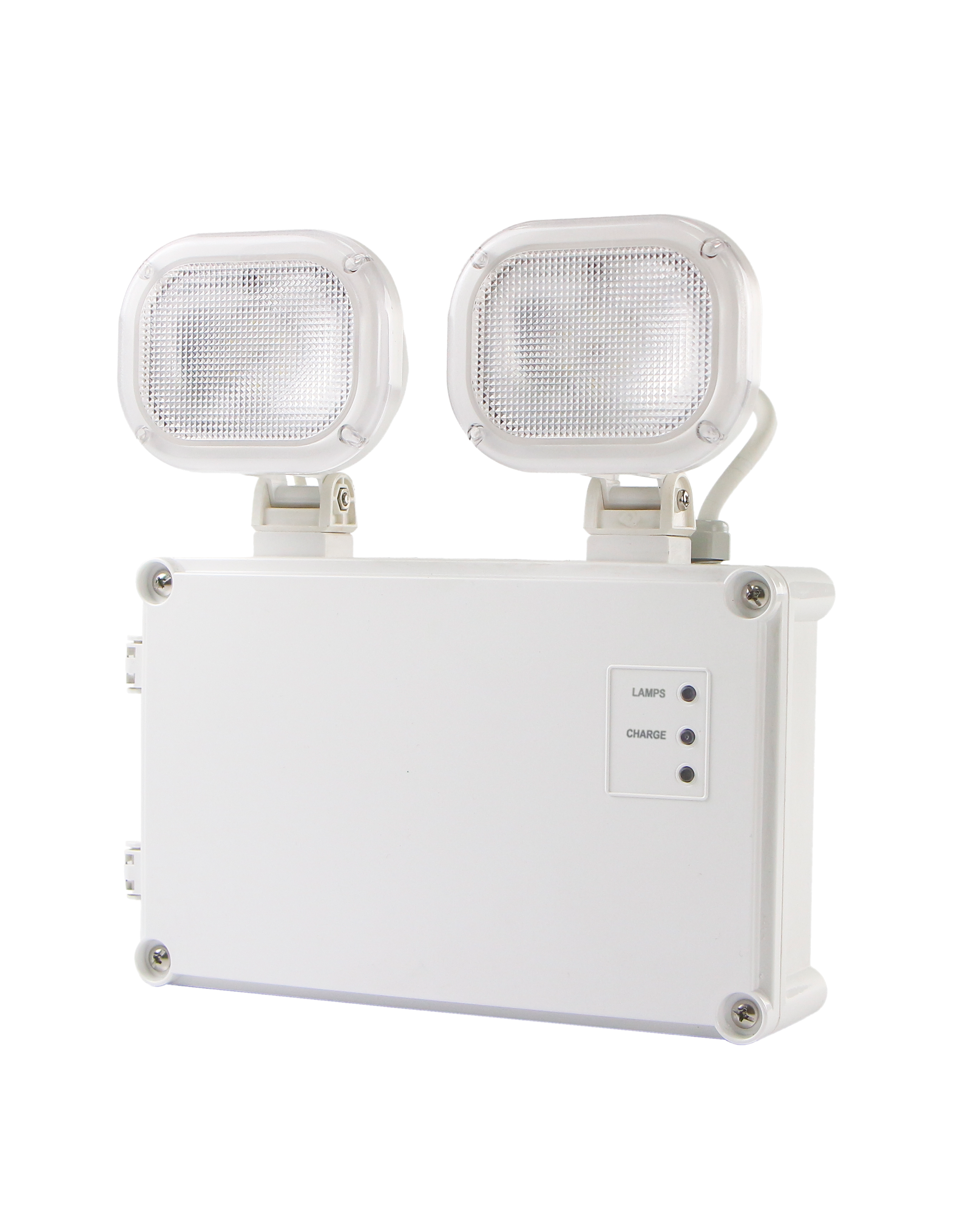

Spectrum DALI-2 12W LED Self-Test Emergency Twin Spot
Code:
09151
Please log in to see pricing
To view product pricing and place orders, please log in to your account.
The Spectrum IP65 Twin Spot is IP65 as standard. Supplied as both Self-Test & Non-Self-Test, with 20mm side & rear entry and a 5-year guarantee.
Specification
| Commodity Code | 8513100000 |
| EAN | 5013588003306 |
| Country Of Origin | CN |
| Product Category | Emergency Lighting / Luminaire with Battery |
| Product Application | Emergency Lighting |
| Warranty | 5 Years |
| Individual Product Weight (kg) | 0.77 |
| Volts (V) | 220/240 |
| Life Hours | 30000 |
| Beam Angle | 120° |
| CRI (Ra) | 80 |
| Switching Cycles | 15000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 350mA |
| Energy Consumption (kWh/1000h) | 12 |
| IP Rating | IP65 |
| Height (mm) | 247 |
| Width (mm) | 226 |
| Depth (mm) | 79 |
| Lumens per Watt (lm/W) | 51 |
| Operating Temperature | 0°C - +35°C |
| Wattage (W) | 12 |
| Colour Temperature (K) | 6000 |
| Candelas | 340 |
| IK Rating | IK06 |
| Lumen output (lm) | 608 |
| Individual Product Weight (kg) | 0.77 |
| Outer Box Weight (kg) | 9 |
| Outer Box Height (mm) | 500 |
| Outer Box Width (mm) | 455 |
| Outer Box Depth (mm) | 285 |
| Outer Box Qty | 10 |
| Outer Box Volume | 0.06484 |
| Height (mm) | 247 |
| Width (mm) | 226 |
| Depth (mm) | 79 |
| Single Box Weight (kg) | 0.92 |
| Single box Height (mm) | 265 |
| Single box Width (mm) | 242 |
| Single Box Depth (mm) | 87 |
| Single Box Volume | 0.00558 |
| Outer Box Barcode | 0915100000010 |
| Minimum Order Quantity | 1 |
