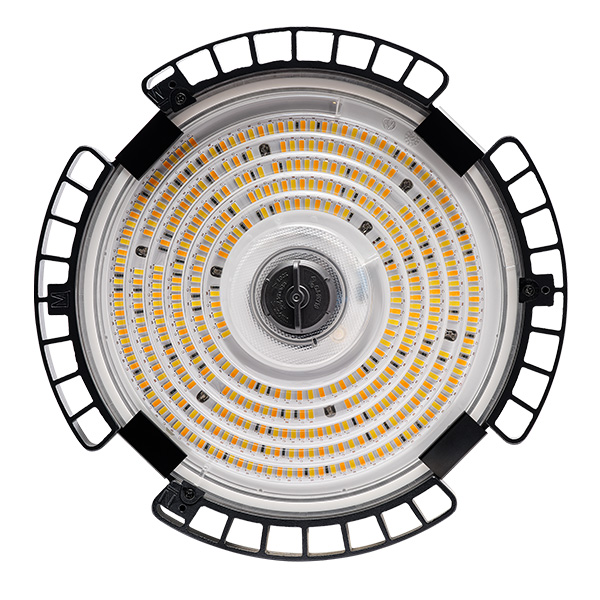

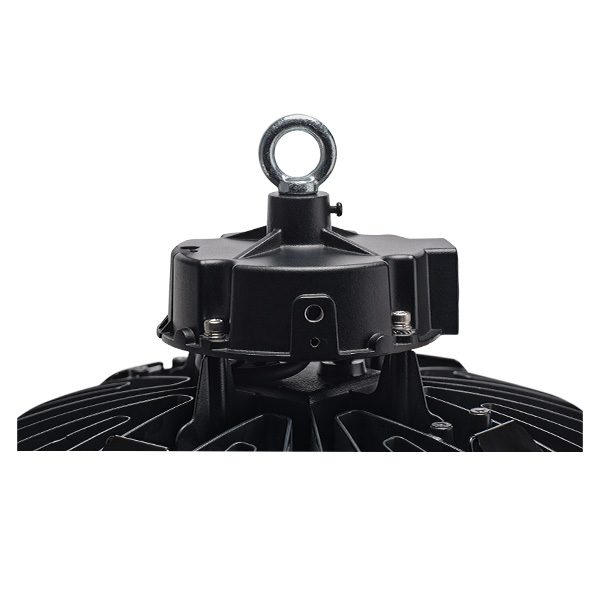

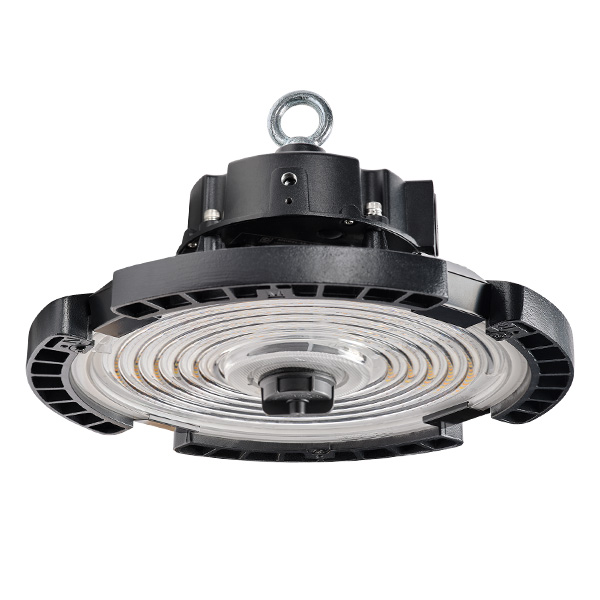

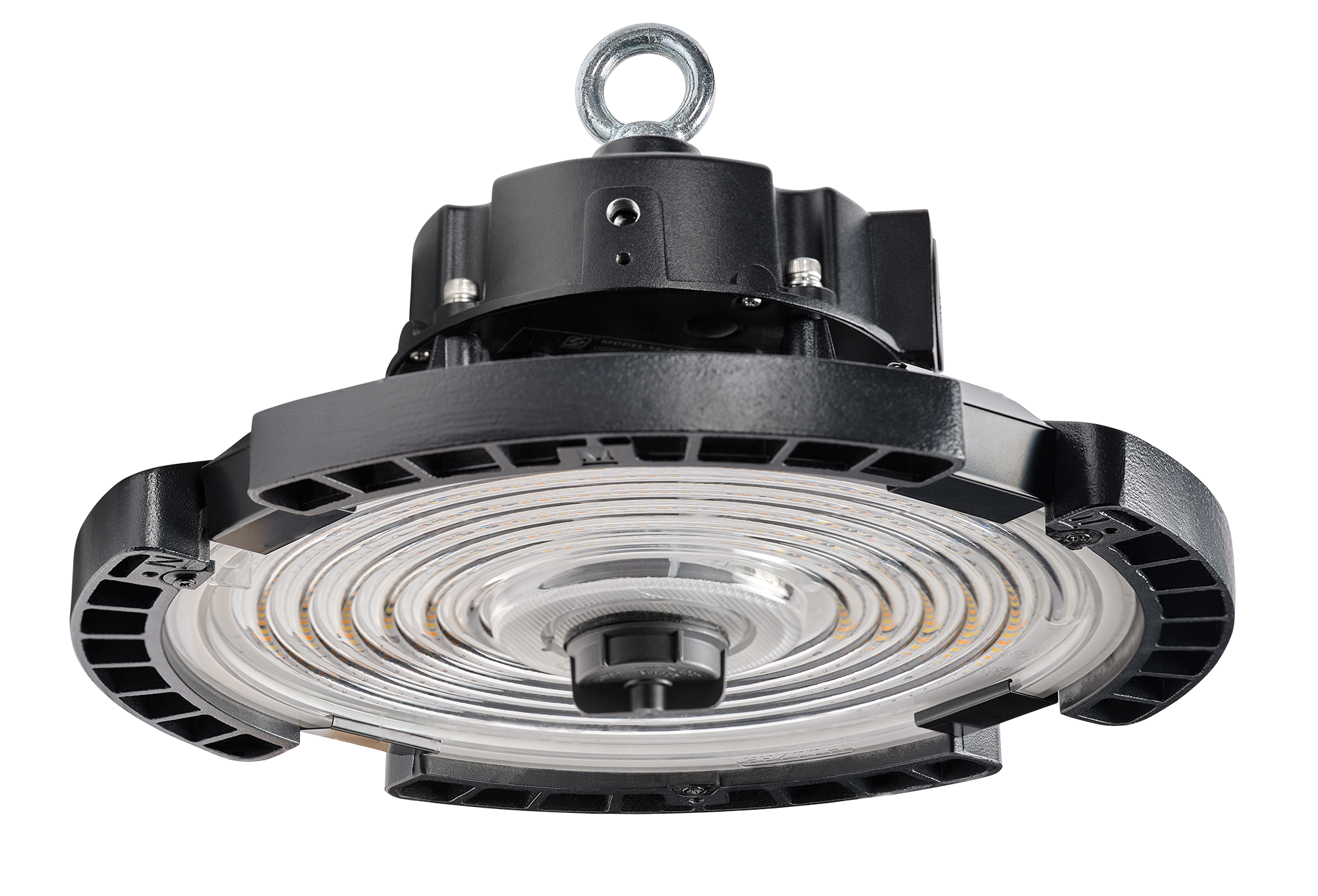

Illumina Versa 90/120/150W LED CCT High Bay - Beam Angle Selectable with Zhaga Receptacle
Code:
70421
The Illumina Versa is a complete, all-in-one high bay lighting solution. It features selectable wattage, colour temperature, and beam angle, along with a Zhaga receptacle for added flexibility and future-ready connectivity.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Country Of Origin | CN |
| UNSPSC Code | 39111538 |
| Commodity Code | 9405423990 |
| EAN | 5063695004680 |
| Product Category | LED Luminaires - Not Plastic |
| Product Application | Warehouse Lighting |
| Warranty | 7 Years |
| Volts (V) | 220/240 |
| Lumens per Watt (lm/W) | 153-167 - at 120° |
| Life Hours | 70,000 |
| Beam Angle | 65° / 95° / 120° |
| CRI (Ra) | 80 |
| Switching Cycles | 100,000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 60mA |
| Energy Consumption (kWh/1000h) | 150 |
| IP Rating | IP65 |
| Operating Temperature | -30°C - +50°C |
| Wattage (W) | 90/120/150 |
| Colour Temperature (K) | 3000/4000/5000 |
| IK Rating | IK08 |
| Lumen output (lm) | 90W = 13727 (3000K) / 14986 (4000K) / 14237 (5000K) - 120W = 18152 (3000K) / 19955 (4000K) / 18803 (5000K) - 150W = 20805 (3000K) / 24071 (4000K) / 21423 (5000K) - at 120° |
| UNSPSC Code | 39111538 |
| Height (mm) | 179 |
| Diameter (mm) | 273 |
| Individual Product Weight (kg) | 2.15 |
| Single Box Weight (kg) | 2.57 |
| Single box Height (mm) | 295 |
| Single box Width (mm) | 295 |
| Single Box Depth (mm) | 190 |
| Single Box Volume | 0.01653475 |
