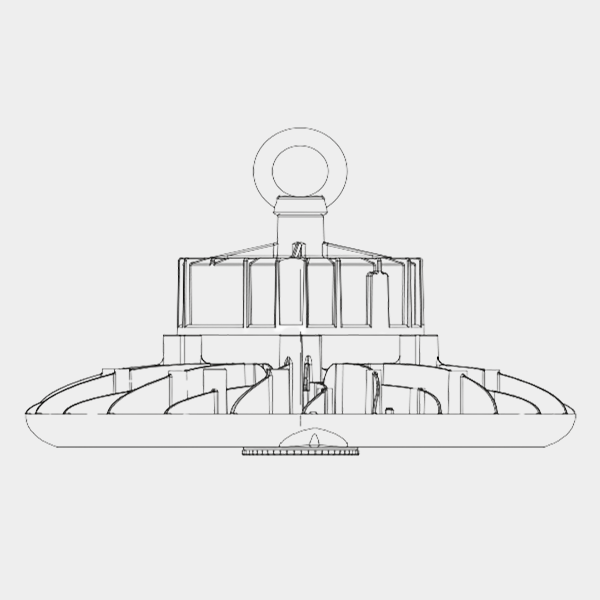

Illumina Atlas 120/160/200W LED High Bay - 120° Lens - 4000K
Code:
11454
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
The Illumina Atlas Switchable Wattage High Bay is a highly efficient versatile LED luminaire, ideally suited to a wide range of industrial applications for both new installations and retrofit applications.
Specification
| Commodity Code | 9405423990 |
| EAN | 5013588114545 |
| Country Of Origin | CN |
| UNSPSC Code | 39111546 |
| Product Application | Commercial / Industrial / Warehousing |
| Product Category | LED Luminaires - Not Plastic |
| Warranty | 7 Years (2 Years On Site) |
| Volts (V) | 220/240 |
| Life Hours | 70000 |
| Beam Angle | 120° |
| CRI (Ra) | 80 |
| Switching Cycles | 100000 |
| Frequency (Hz) | 50/60 |
| Energy Consumption (kWh/1000h) | 200 |
| IP Rating | IP65 |
| Height (mm) | 165 |
| Diameter (mm) | 330 |
| Individual Product Weight (kg) | 2.3 |
| Lumens per Watt (lm/W) | 145-162 |
| Operating Temperature | -20°C - +35°C |
| LED Drive Current | 131mA |
| Wattage (W) | 120/160/200 |
| Equivalent Wattage (W) | 600 |
| Colour Temperature (K) | 4000 |
| IK Rating | IK10 |
| Lumen output (lm) | 19431 (120W) / 24436 (160W) / 28956 (200W) |
| Lumen Maintenance Ratio | L80 B10 |
| Height (mm) | 165 |
| Diameter (mm) | 330 |
| UNSPSC Code | 39111546 |
| Individual Product Weight (kg) | 2.3 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 2.9 |
| Single box Height (mm) | 335 |
| Single box Width (mm) | 335 |
| Single Box Depth (mm) | 182 |
| Single Box Volume | 0.02042495 |
