Clearance
Fitting

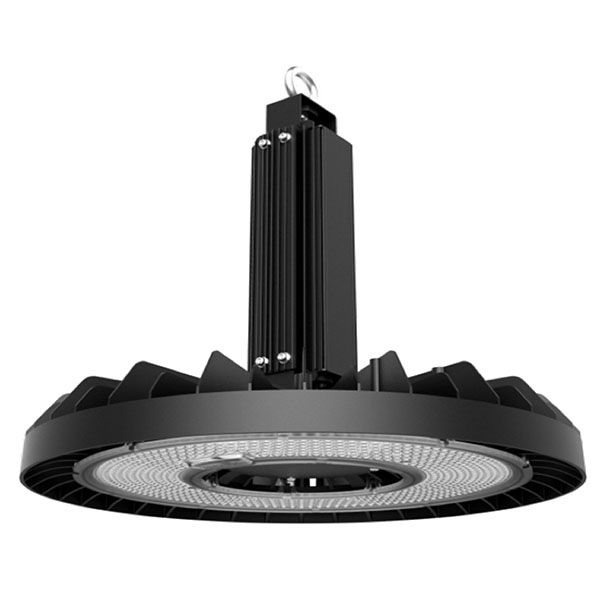

Illumina Calor 150W LED High Temperature High Bay - 120° Lens - 4000K
Code:
10902
Please log in to see pricing
To view product pricing and place orders, please log in to your account.
The Illumina Calor offers a sleek design coupled with high performance. With a high ambient temperature rating of 65°C, this fitting is perfect for applications where extreme high temperatures are encountered eg; foundries, steelworks and bottling plants.
Specification
| Commodity Code | 9405423990 |
| EAN | 5013588109022 |
| Country Of Origin | CN |
| UNSPSC Code | 39111546 |
| Product Category | LED Luminaires - Not Plastic |
| Product Application | High Temperature Areas |
| Warranty | 7 Years |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| Beam Angle | 120° |
| CRI (Ra) | 85 |
| Switching Cycles | 100000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 110mA |
| Energy Consumption (kWh/1000h) | 150 |
| IP Rating | IP65 |
| Height (mm) | 309 |
| Diameter (mm) | 360 |
| Individual Product Weight (kg) | 3.9 |
| Lumens per Watt (lm/W) | 142 |
| Operating Temperature | -20℃ - +65℃ |
| Wattage (W) | 150 |
| Equivalent Wattage (W) | 400 |
| Colour Temperature (K) | 4000 |
| IK Rating | IK08 |
| Lumen output (lm) | 21250 |
| Lumen Maintenance Ratio | L80 B10 |
| UNSPSC Code | 39111546 |
| Height (mm) | 309 |
| Diameter (mm) | 360 |
| Individual Product Weight (kg) | 3.9 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 5 |
| Single box Height (mm) | 212 |
| Single box Width (mm) | 420 |
| Single Box Depth (mm) | 420 |
| Single Box Volume | 0.0374 |
